H05VV5-F (NYSLY"O-JZ) Control Cable
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Flexible
- Application：Heating, Underground, Indoor Lighting
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：H05VV5-F(NYSLY"O-JZ)
- Material Shape：Round
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, CCC
- Brand：Yifang
- Standard：NF C 32-201-13
- Transport Package：Treated Wooden Drums
- Specification：0.5mm2 0.75mm2 2.5mm2
- Trademark：YIFANG
- Origin：China
- HS Code：8544492100
- Production Capacity：10000m Per Week
Description
Basic Info.
Model NO. H05VV5-F(NYSLY"O-JZ) Material Shape Round Range of Application Flame Retardant Certification ISO9001, CE, CCC Brand Yifang Standard NF C 32-201-13 Transport Package Treated Wooden Drums Specification 0.5mm2 0.75mm2 2.5mm2 Trademark YIFANG Origin China HS Code 8544492100 Production Capacity 10000m Per WeekProduct Description
H05VV5-F(NYSLY"O-JZ) Control Cable
Application and Description
These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.
Standard and Approval
- NF C 32-201-13

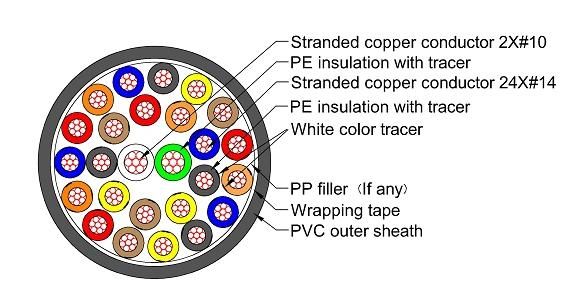

Cable Construction
| ine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| PVC insulation T12 to DIN VDE 0281 part 1 |
| Green-yellow grounding (3 conductors and above) |
| Cores to VDE-0293 colors |
| PVC sheath TM5 to DIN VDE 0281 part 1 |
Technical Characteristics
| Working voltage | 300/500v |
| Test voltage | 2000volts |
| 2000voltsFlexing bending radius | 7.5 x O |
| Static bending radius | 4 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -40oC to +70oC |
| Short circuit Temperature | +150oC |
| Flame retardant | NF C 32-070 |
| Insulation resistance | 20 MΩ x km |
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|---|---|
| # x mm^2 | mm | mm | mm | kg/Km | kg/Km | |
| 20(16/32) | 2x0.50 | 0.6 | 0.7 | 5.6 | 9.7 | 46 |
| 18(24/32) | 2x0.75 | 0.6 | 0.8 | 6.2 | 14.4 | 52 |
| 17(32/32) | 2x1 | 0.6 | 0.8 | 6.6 | 19.2 | 66 |
| 16(30/30) | 2x1.5 | 0.7 | 0.8 | 7.6 | 29 | 77 |
| 14(50/30) | 2x2.5 | 0.8 | 0.9 | 9.2 | 48 | 110 |
| 20(16/32) | 3x0.50 | 0.6 | 0.7 | 5.9 | 14.4 | 54 |
| 18(24/32) | 3x0.75 | 0.6 | 0.8 | 6.6 | 21.6 | 68 |
| 17(32/32) | 3x1 | 0.6 | 0.8 | 7 | 29 | 78 |
| 16(30/30) | 3x1.5 | 0.7 | 0.9 | 8.2 | 43 | 97 |
| 14(50/30) | 3x2.5 | 0.8 | 1 | 10 | 72 | 154 |
| 20(16/32) | 4x0.50 | 0.6 | 0.8 | 6.6 | 19 | 65 |
| 18(24/32) | 4x0.75 | 0.6 | 0.8 | 7.2 | 28.8 | 82 |
| 17(32/32) | 4x1 | 0.6 | 0.8 | 7.8 | 38.4 | 104 |
| 16(30/30) | 4x1.5 | 0.7 | 0.9 | 9.3 | 58 | 128 |
| 14(50/30) | 4x2.5 | 0.8 | 1.1 | 10.9 | 96 | 212 |
| 20(16/32) | 5x0.50 | 0.6 | 0.8 | 7.3 | 24 | 80 |
| 18(24/32) | 5x0.75 | 0.6 | 0.9 | 8 | 36 | 107 |
| 17(32/32) | 5x1 | 0.6 | 0.9 | 8.6 | 48 | 123 |
| 16(30/30) | 5x1.5 | 0.7 | 1 | 10.3 | 72 | 149 |
| 14(50/30) | 5x2.5 | 0.8 | 1.1 | 12.1 | 120 | 242 |
| 20(16/32) | 6x0.50 | 0.6 | 0.9 | 8.1 | 28.8 | 104 |
| 18(24/32) | 6x0.75 | 0.6 | 0.9 | 8.7 | 43.2 | 132 |
| 17(32/32) | 6x1 | 0.6 | 1 | 9.5 | 58 | 152 |
| 16(30/30) | 6x1.5 | 0.7 | 1.1 | 11.2 | 86 | 196 |
| 14(50/30) | 6x2.5 | 0.8 | 1.2 | 13.2 | 144 | 292 |
| 20(16/32) | 7x0.50 | 0.6 | 0.9 | 8.1 | 33.6 | 119 |
| 18(24/32) | 7x0.75 | 0.6 | 1 | 8.9 | 50.5 | 145 |
| 17(32/32) | 7x1 | 0.6 | 1 | 9.5 | 67 | 183 |
| 16(30/30) | 7x1.5 | 0.7 | 1.2 | 11.4 | 101 | 216 |
| 14(50/30) | 7x2.5 | 1.3 | 0.8 | 13.4 | 168 | 350 |
| 20(16/32) | 12x0.50 | 0.6 | 1.1 | 10.9 | 58 | 186 |
| 18(24/32) | 12x0.75 | 0.6 | 1.1 | 11.7 | 86 | 231 |
| 17(32/32) | 12x1 | 0.6 | 1.2 | 12.8 | 115 | 269 |
| 16(30/30) | 12x1.5 | 0.7 | 1.3 | 15 | 173 | 324 |
| 14(50/30) | 12x2.5 | 1.5 | 0.8 | 17.9 | 288 | 543 |
| 20(16/32) | 18x0.50 | 0.6 | 1.2 | 12.9 | 86 | 251 |
| 18(24/32) | 18x0.75 | 0.6 | 1.3 | 14.1 | 130 | 313 |
| 17(32/32) | 18x1 | 0.6 | 1.3 | 15.1 | 173 | 400 |
| 16(30/30) | 18x1.5 | 0.7 | 1.5 | 18 | 259 | 485 |
| 14(50/30) | 18x2.5 | 1.8 | 0.8 | 21.6 | 432 | 787 |
| 20(16/32) | 25x0.50 | 0.6 | 1.4 | 15.4 | 120 | 349 |
| 18(24/32) | 25x0.75 | 0.6 | 1.5 | 16.8 | 180 | 461 |
| 17(32/32) | 25x1 | 0.6 | 1.5 | 18 | 240 | 546 |
| 16(30/30) | 25x1.5 | 0.7 | 1.8 | 21.6 | 360 | 671 |
| 14(50/30) | 25x2.5 | 0.8 | 2.1 | 25.8 | 600 | 1175 |
| 20(16/32) | 36x0.50 | 0.6 | 1.5 | 17.7 | 172 | 510 |
| 18(24/32) | 36x0.75 | 0.6 | 1.6 | 19.3 | 259 | 646 |
| 17(32/32) | 36x1 | 0.6 | 1.7 | 20.9 | 346 | 775 |
| 16(30/30) | 36x1.5 | 0.7 | 2 | 25 | 518 | 905 |
| 14(50/30) | 36x2.5 | 0.8 | 2.3 | 29.8 | 864 | 1791 |
| 20(16/32) | 50x0.50 | 0.6 | 1.7 | 21.5 | 240 | 658 |
| 18(24/32) | 50x0.75 | 0.6 | 1.8 | 23.2 | 360 | 896 |
| 17(32/32) | 50x1 | 0.6 | 1.9 | 24.5 | 480 | 1052 |
| 16(30/30) | 50x1.5 | 0.7 | 2 | 28.9 | 720 | 1381 |
| 14(50/30) | 50x2.5 | 0.8 | 2.3 | 35 | 600 | 1175 |
| 20(16/32) | 61x0.50 | 0.6 | 1.8 | 23.1 | 293 | 780 |
| 18(24/32) | 61x0.75 | 0.6 | 2 | 25.8 | 439 | 1030 |
| 17(32/32) | 61x1 | 0.6 | 2.1 | 26 | 586 | 1265 |
| 16(30/30) | 61x1.5 | 0.7 | 2.4 | 30.8 | 878 | 1640 |
| 14(50/30) | 61x2.5 | 0.8 | 2.4 | 37.1 | 1464 | 2724 |
