• Model NO.：76,132 kV Cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Yjsv
• Brand：Grandcable
• Transport Package：Steel Drum
• Trademark：Grandcable
• Origin：Jiangsu, China
• HS Code：8544601300
• Production Capacity：1200 Km Per Year

Reference StandardIEC 60840 standard
WAPDA P-168:83Conductor Cross Sectional Area1000 mm²                Conductor MaterialAnnealed CopperConductor TypeMillikenConductor Diameter38.6 mmConductor Screen MaterialSemi-conductive CompoundConductor Screen Thickness1.50 mmInsulation MaterialXLPENominal Insulation Thickness18.0 mmIinsulation Screen MaterialSemi-conductive CompoundInsulation Screen Thickness1.50 mmWater Blocking LayerSemi-conductive Water Blocking TapeWater Blocking Thickness1.0 mmMetallic Screen MaterialCopper WireWater Blocking Layer Water Blocking TapeWater Blocking Thickness1.0 mmOuter Sheath MaterialExtruded PVC, BlackOuter Sheath Thickness5.0 mmApprox.Diameter of Cable96.7 mmApprox.Weight of Cable16500 kg/km

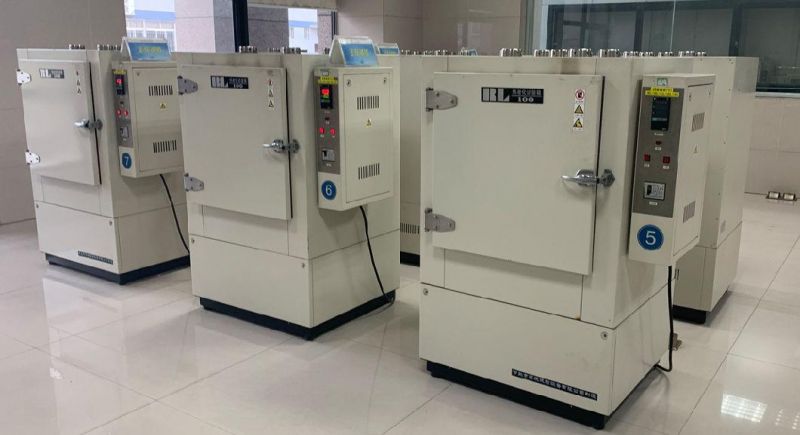

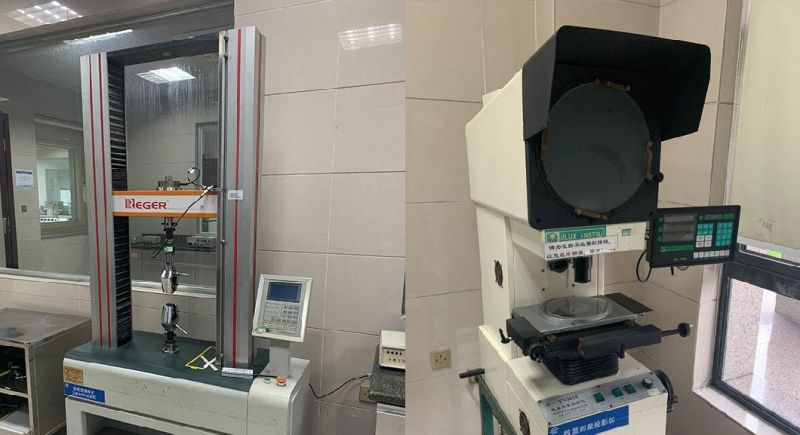

Testing Facilities:

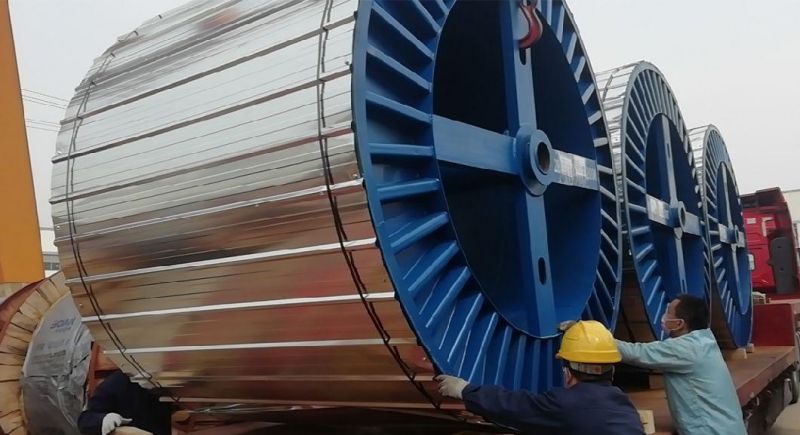

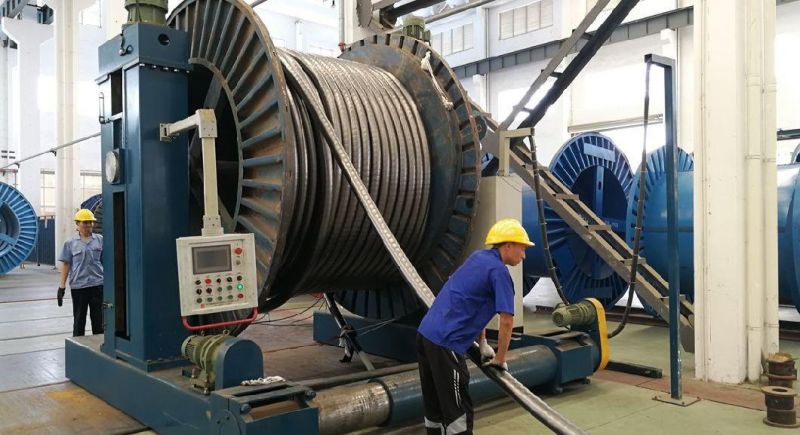

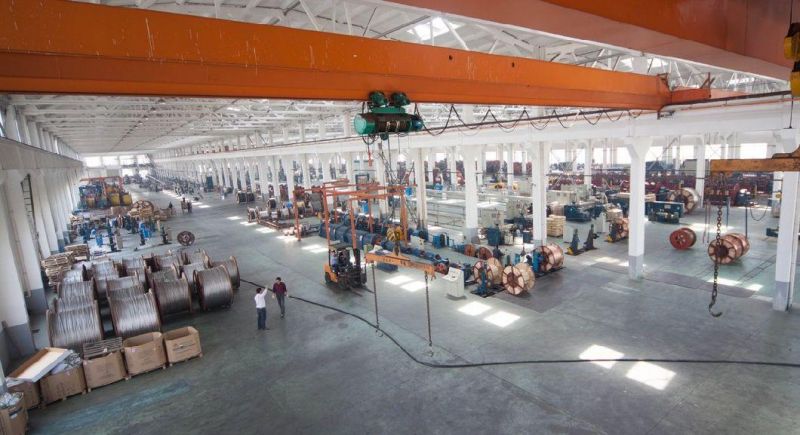

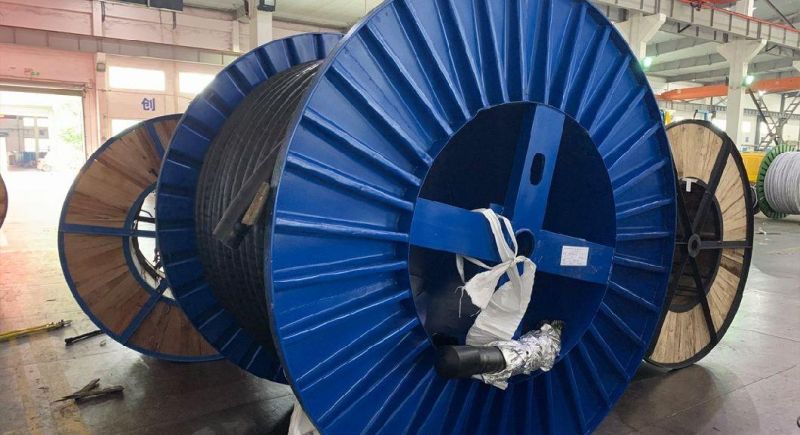

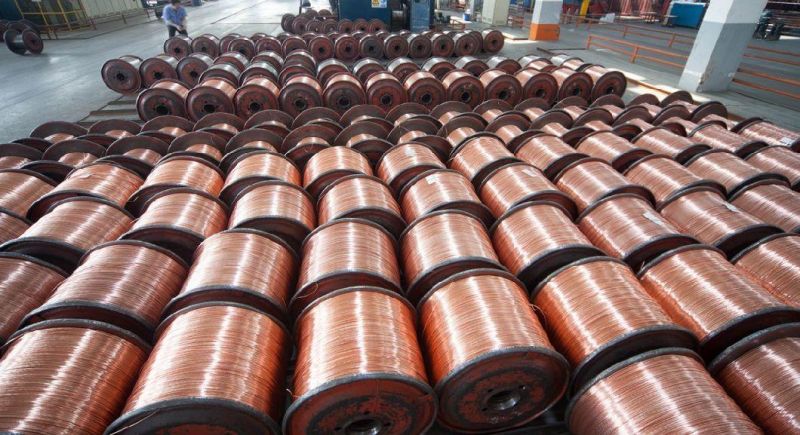

Packaging Photos:Workshop View:

About us:

Jiangsu Grand Cable Co., Ltd. was founded in 2002 with a registered capital of 308.88 million CNY(equivalent to 44.13 million USD). The company is located at Section B, Guanlin Industrial ConcentratedArea, Yixing, Wuxi City, Jiangsu 214251, P.R. China, covering an area of 130,000 squaremeters .It owns total assets of 100 million CNY and more than 500 staff members. The annualproduction capacity reaches 2.5 billion CNY .It is one of key enterprises of China Wire & Cable Industry, the National High-Tech Enterprises, the Innovation and Development Pilot Enterprises of Jiangsu Province, the Private Technology Enterprises in Jiangsu Province, keeping Contract and Credit Enterprises and AAA-Grade Credit Enterprise. We have passed ISO9001 Quality System,ISO14001 Environment Management System Certificate and OHSAS 18001 Occupational Health and Safety Management System Certificate.

With more than 300 sets of first-class domestic and imported manufacture and test equipment,Grand Cable can manufacture ten thousand specifications, including Bare Conductors, Earthing Materials, Electric Cables, Solar Cables, Overhead/Aerial Cables, Control Cables, Instrumentation Cables, Power Cables(LV/MV/EHV), Special Cables.

FAQ:

Q:  How long does it take get my inquiry replied?

A:  Mostly the inquiry will be replied within 12 hours. And the quote will be sent to you in 1-3 days. It depends on the technical parameters and requirements of the cable. We will give you a reasonable and accurate quote.

Q:  Can I get samples before placing the order?

A:  You will get a sample for free if we have the storage of that cable.

Q:  What's the MOQ of your product?

A:  The MOQ of our most product is 1000 meters. But if there's any exceptional situation, we can make some negotiations.

Fore More Information, Please do feel free to contact us!
