Optical Distribution Frame (Slide Type)

Qingdao Powtech Electronics Co., Ltd.
  • Type：ODF
  • Certification：CE, RoHS, CCC, ISO
  • Customized：Customized
  • Condition：New
  • Feature：Fire,Flame Retardant
  • Size：19 Inches

Base Info

  • Model NO.：OPX
  • Transport Package：Carton + Pallet
  • Specification：CE, RoHS, SGS, ISO
  • Trademark：OPTELEC
  • Origin：China
  • HS Code：73269000
  • Production Capacity：50000PCS,Month

Description

Basic Info.

Model NO. OPX Transport Package Carton + Pallet Specification CE, RoHS, SGS, ISO Trademark OPTELEC Origin China HS Code 73269000 Production Capacity 50000PCS/Month

Product Description

Optical Distribution Frame (ODF)

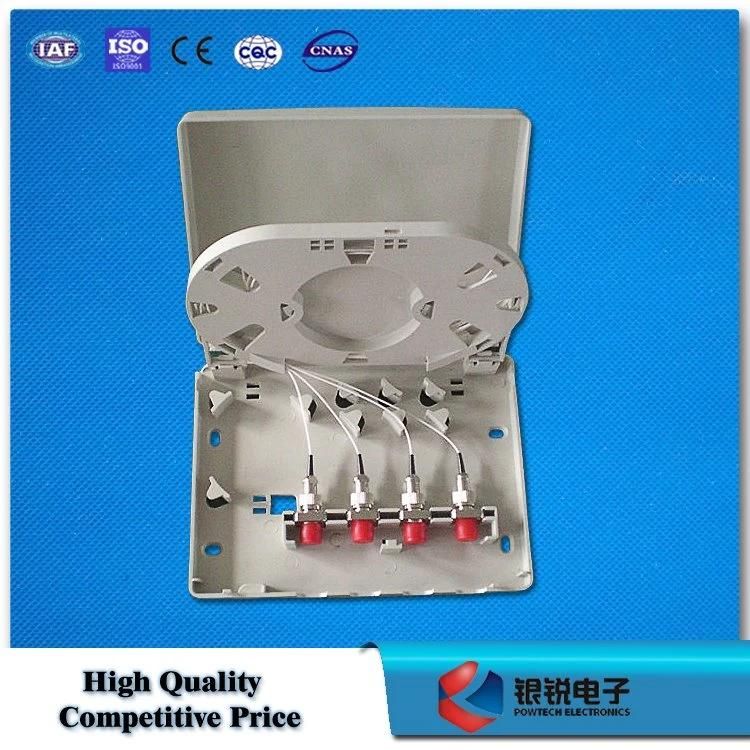

Optical Distribution Frame (Slide Type)

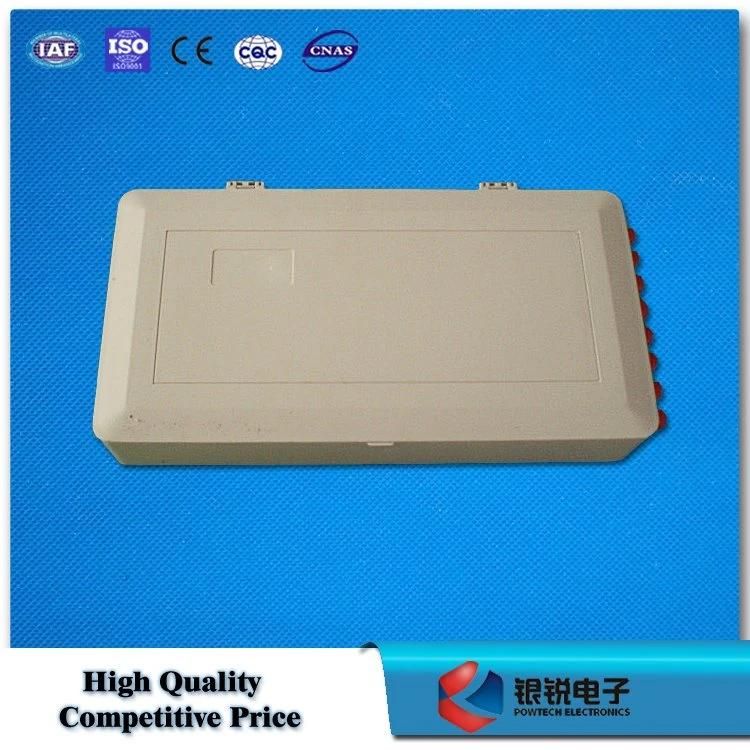

Optical Distribution Frame (Slide Type)

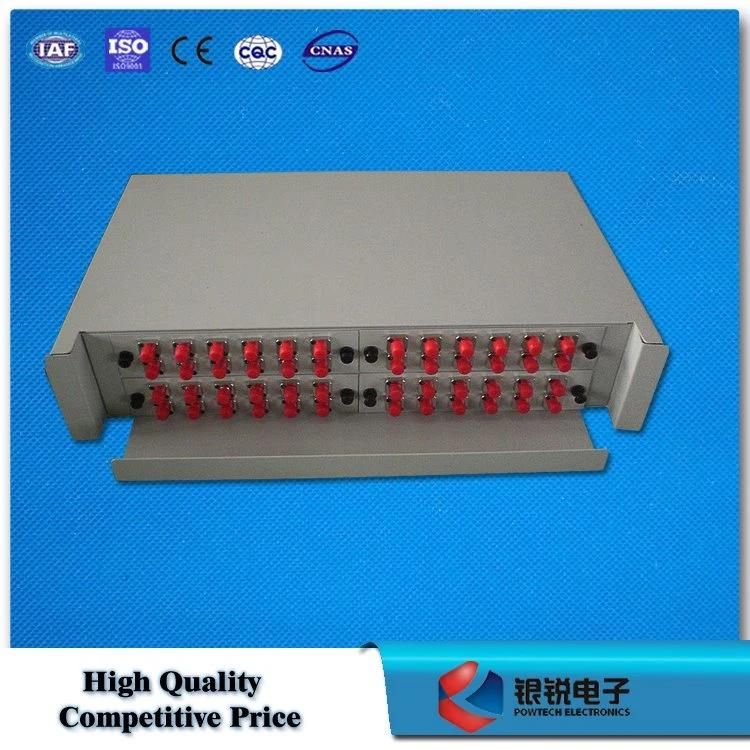

Optical Distribution Frame (Slide Type)

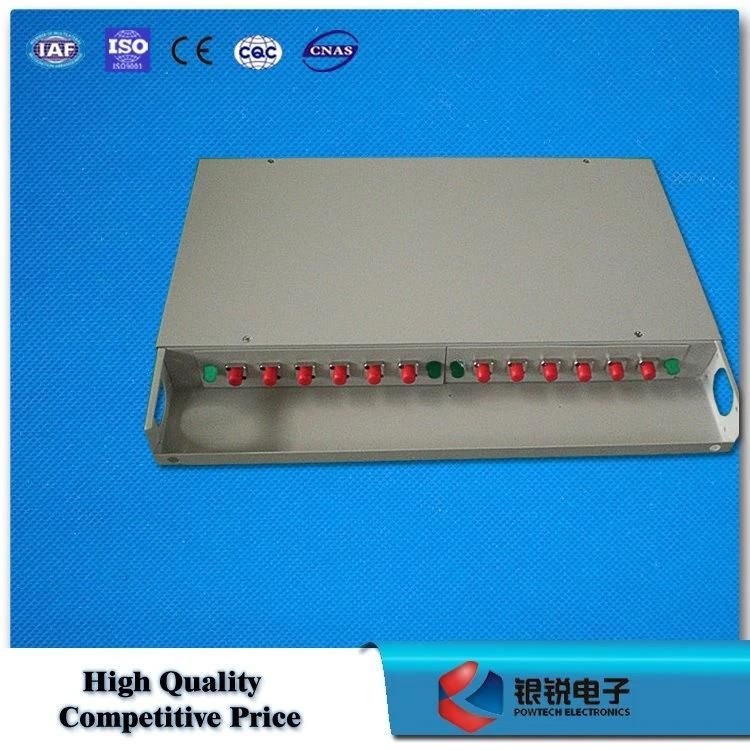

Optical Distribution Frame (Slide Type)

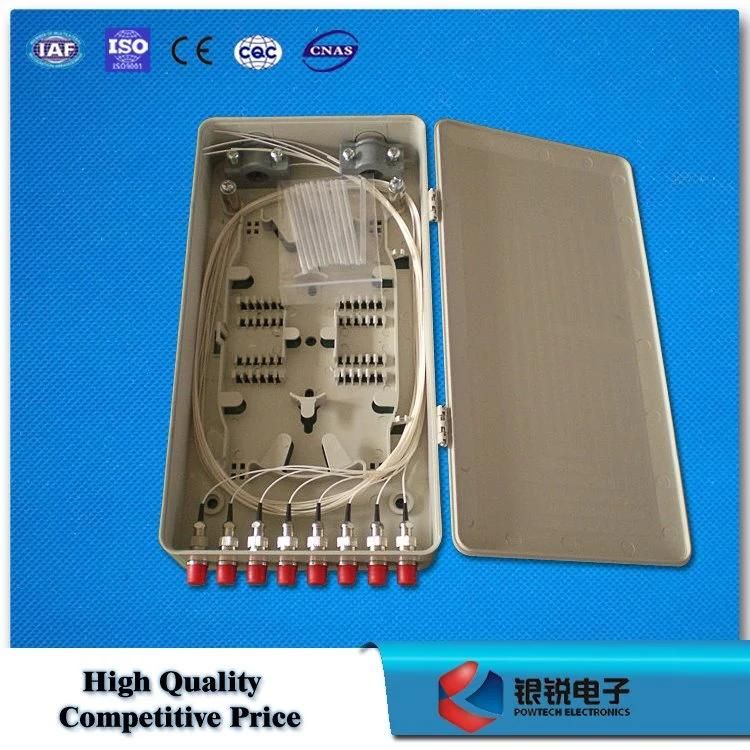

Optical Distribution Frame (Slide Type)

Features:
Mounting: 19"/1U
Access type: Front door
Material: Metallic
Fiber capacity: 24core

Specification:
Environmental condition:
1. Working temperature: -5deg C - +40degC
2. Environmental temperature: -25degC - +55degC
3. Relative humidity: 85%((when the temperature is below 30degC))
4. Atmosphere pressure: 70 Kpa~106Kpa
5. Storage temperature: -25degC - +55degC

Photo electricity Performance:
1. Insertion loss: <0.3dB
2. Return loss: PC< 40 dB, UPC<50dB, APC< 60dB
3. Insulating resistance between the box and the earthing device: 1000MΩ /500VDC
4. Voltage- resistance between the box and the earthing device: Under the effect of 3kv/DC/1min, non-puncture, and no arc-over
