Single Conductor Thw-Ls / Thhw-Ls 600 V PVC Low Voltage Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：THW-LS , THHW-LS
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC
  • Model：Thw-Ls, Thhw-Ls
  • Brand：Hongda
  • 1.5 - 10 Sqmm：Solid Conductor
  • 16 - 400 Sqmm：Non Compacted Circular Stranded
  • Transport Package：100m Per Roll,Reel, or as Customer Requirement
  • Specification：1.5mm2 to 400mm2
  • Trademark：Hongda Cable
  • Origin：Made in China
  • HS Code：8544492900
  • Production Capacity：1800km,Month

Description

Basic Info.

Model NO. THW-LS / THHW-LS Wire Core Material Bare Copper Wire Certification ISO, CCC Model Thw-Ls, Thhw-Ls Brand Hongda 1.5 - 10 Sqmm Solid Conductor 16 - 400 Sqmm Non Compacted Circular Stranded Transport Package 100m Per Roll/Reel, or as Customer Requirement Specification 1.5mm2 to 400mm2 Trademark Hongda Cable Origin Made in China HS Code 8544492900 Production Capacity 1800km/Month

Product Description

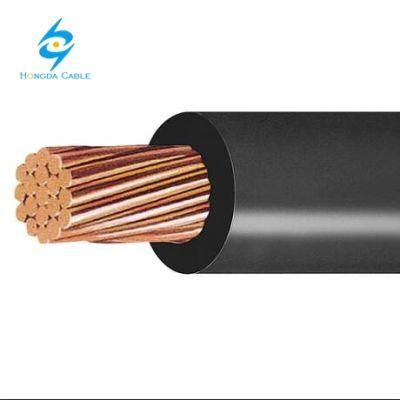

Single Conductor THW-LS  THHW-LS 600 V PVC Low Voltage Cable

1. Conductor: Formed by soft copper wires, concentric wiring, class B and C.
2. Insulation: Polychloride-based thermoplastic vinyl (PVC) in various colors, formulated to be resistant to the spread of fire, properly LS (Low Smoke) low emission of dark smoke and acid gases, CT (Tray Cable) for installation in Applicable trays from 4 AWG to 1000 KCM in all the colors and SR (Sunlight Resistance) resistant to Sunrays only in black and all calibers.
Designed to operate at a maximum voltage of 600 V.

Single Conductor Thw-Ls / Thhw-Ls 600 V PVC Low Voltage Cable


DESCRIPTION

Application:
In electrical installations, industrial strength and lighting; in places of public concentration (hospitals, hotels, shopping centers, offices, auditoriums, etc.), in houses, buildings where requires a fixed, secure and reliable indoor installation.

Advantage
It can be installed in pipelines, ducts or in trays for designations of 21.2 mm2 (4 AWG) and elderly (CT).
Resistant to fire propagation (RPI), low emission of dark smoke and low gas emission acid (LS).
Resistant to the action of ultraviolet rays for Outdoor facilities (SR).

Operating Temperature
The THW-LS conductors are designed to operate at a maximum temperature in the conductor of:
In humid environment: 75 ° C
In a dry environment: 90 ° C
In overload: 105 ° C
In short: 150 ° C

Reference Specifications
NMX-J-010-ANCE: Conductor-drivers with PVC thermoplastic insulation for installations up to 600 V.
NMX-J-012-ANCE: Conductors-copper cables with concentric wiring for electrical usespecifications.
NOM-001-SEDE: Electrical installations (utilization).

Properties before Fire
NMX-J-192: Retardant to the propagation of the vertical flame (anti-flame).
NMX-J-093: Retardant to the propagation of the fire (RPI LS).
NMX-J-010: Applicable in vertical tray (CT).
NMX-J-472: Low generation of acid gas (LS).
NMX-J-474: Low emission of dark smoke (LS).
NMX-J-498: Flame propagation in tray vertical (CT).
NMX-J-553: Resistant to weathering and rays solar

Packing:
The standard lengths of standards are
shipped in cardboard boxes, rolls or reels.

SIZE
AWG O
MCM 		CROSS SECTION
AL
mm2 		STRANDING
Number of wire x diameter mm. 		INSULATION THICKNESS
mm. 		EXTERNAL DIAMETER
mm 		TOTAL WEIGHT
Kg/Km 		AMPACITY
for  1 conductor in free air
Amp. 		AMPACITY
for  3 conductors in conduit
Amp. 		PACKAGING
142,081 x 1,631,143,9131,603020A,B
123,311 x 2,051,144,3344,503525A,C
105,261 x 2,591,144,8764,405035A,D
88,341 x 3,261,526,30104,507050A,B

142,087 x 0,621,144,1433,203020A,B
123,317 x 0,781,144,6246,903525A,C
105,267 x 0,981,145,2267,505035A,D
88,377 x 1,231,526,73116,607050A,B,E
613,307 x 1,551,527,69170,409565A,E
421,157 x 1,961,528,92255,5012585A,E
3 7x2.21,52
233,627 x 2,471,5210,45388,90170115A,E
142,367 x 2,782,0312.4482,90195130A,D,E

1/053,4919 x 1,892,0313,51621,00230150D,E,Z
2/067,4319 x 2,122,0314,66778,00265175D,E,Z
3/085,0119 x 2,392,0316,01934,00310200D,E,Z
4/0107,2019 x 2,682,0317,461159,00360230D,E,Z

250127,0037 x 2,092,4119,451368,00405255Z
300152,0037 x 2,292,4120,851623,00445285Z
350177,0037 x 2,472,4122,111876,00505310Z
400203,0037 x 2,642,4123,302128,00545335Z
500253,0037 x 2,952,4125,472631,00620380Z
600304,0037 x 3,232,7928,193174,00690420Z
650329,0037 x 3,372,7929,173345,00725440Z
700355,0037 x 3,492,7930,013609,00755460Z

PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
