• Model NO.：FTP CAT5E
• Wire Core Material：Tinned Wire
• Certification：CE, ISO, RoHS, CPR,ETL,SGS
• Model：FTP Cat5e
• Brand：Risun or OEM
• Color：as Request
• Insulation：HDPE
• Shield：Al,Pet Foi
• G.W.：10kgs
• Frame Returdant：Available
• Waterproof：Available
• UV：Available
• Transport Package：305m,Pull Box, 2boxes,CTN
• Specification：0.51cu, 1.00HDPE, 6.2PVC, LSZH, PE
• Trademark：Risun or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes , Month

Basic Info.

Model NO. FTP CAT5E Wire Core Material Tinned Wire Certification CE, ISO, RoHS, CPR,ETL,SGS Model FTP Cat5e Brand Risun or OEM Color as Request Insulation HDPE Shield Al/Pet Foi G.W. 10kgs Frame Returdant Available Waterproof Available UV Available Transport Package 305m/Pull Box, 2boxes/CTN Specification 0.51cu, 1.00HDPE, 6.2PVC, LSZH, PE Trademark Risun or OEM Origin Hangzhou, China(Mainland) HS Code 8544491100 Production Capacity 20000 Boxes / Month

Product Description

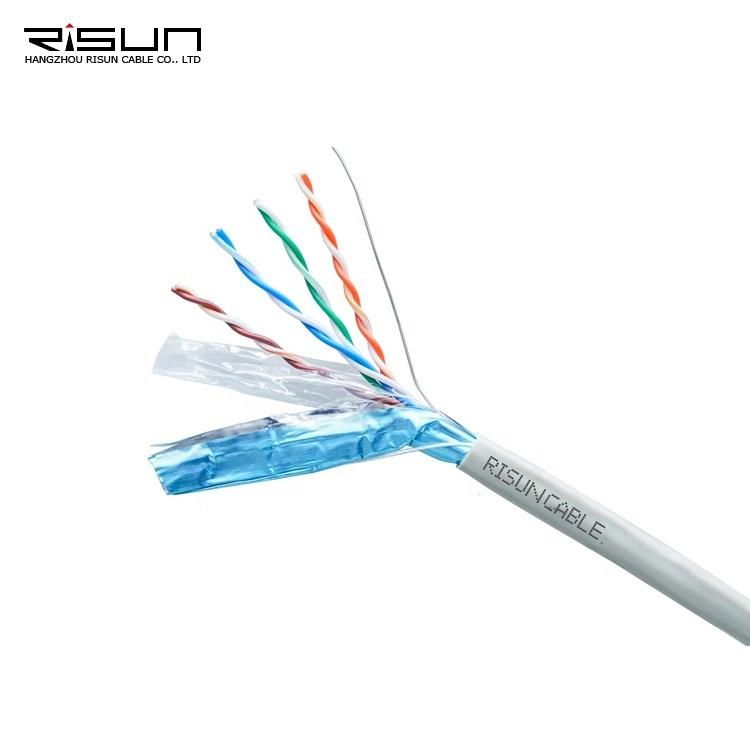

CAT5E FTP Twisted Pair 24AWG Cable PVC 305m Box
company information

construction:

conductor	24awg (solid or strand) cu
insulation	HDPE 0.90±0.02mm
shield	Polyester Tape/Al Foil
Drain Wire	0.4mm TC
sheath	PVC+PE/PE+PE
cores/pairs	8/4

mechanical properties

elongation	min. 300%
temperature range	-20 up to +75° c
tensile strength	min 1.68kg/mm²

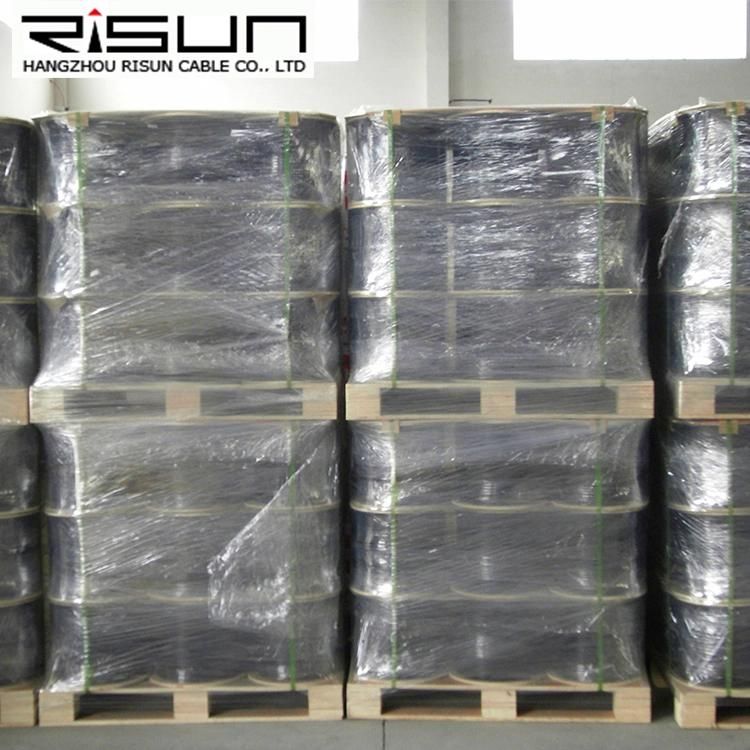

packing

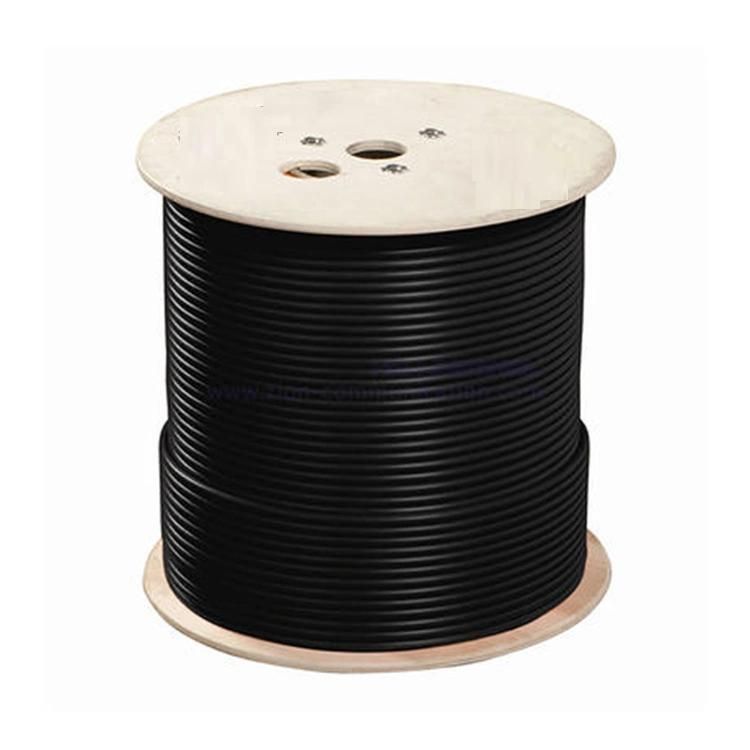

1) packing lengths: 305m/Wooden Drum, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.

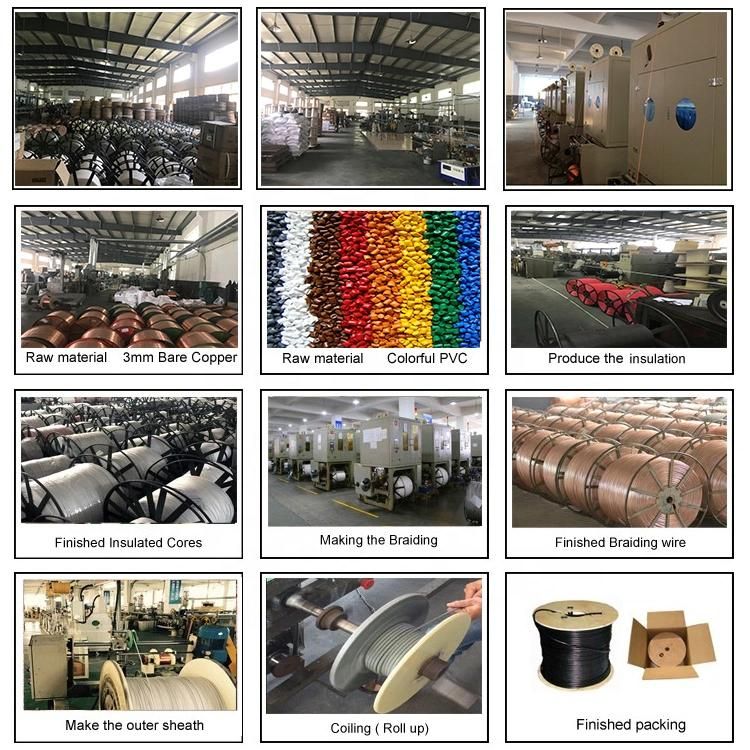

process of production
