Aluminum/Copper Conductor Aerial Cable Electrical Power Cable
Guangdong Vango Cable Industry Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Conductor Material：Copper
- Insulation Material：XLPE
- Material Shape：Round Wire
- Range of Application：Fixed Installation
Base Info
- Model NO.：JKYJ JKTRYJ TKLYJ JKLGYJ etc.
- Transport Package：Wooden Reel, Steel Reel
- Specification：0.5-630 mm2
- Trademark：GDYG
- Origin：Guangdong, China
- Production Capacity：20000km Per Month
Description
Cable should keep some distance from trees when it is being laid, and it can touch the trees frequently when it is on operation. JKY Copper conductor PE insulated aerial cable JKTRY Soft copper conductor PE insulated aerial cable JKLY Aluminum conductor PE insulated aerial cable JKLYJ/Q Aluminum conductor thin XLPE insulated light aerial cable Used for fixed installation. JKLGYJ/Q Steel core aluminum conductor XLPE insulated light aerial cable JKLY/Q Aluminum conductor thin PE insulated light aerial cable Cable should keep some distance from trees when it is being laid, but it can touch the trees frequently when it is on operation.
Features
1.The rated voltage (U/Um) is 10kv. These cables can be used in the system where the single phase earting fault duration is not more than 1 min, the maximum fault duration is not more than 8h each time and total fault duration are not more than 125h one year.
2.The installation temperature of cable shall be not lower -20ºC
3.The maximum short circuit (maximum duration is not more than 5s) temperature:
-XLPE insulated cable: 250ºC
-HDPE insulated cable: 150ºC
4.The minimum installated bended radius shall be not less than:
-Single core cable--20(D+d)
-Multicore cable--15(D+d)
(D--diameter of cable, mm; d--Nominal diameter of conductor)

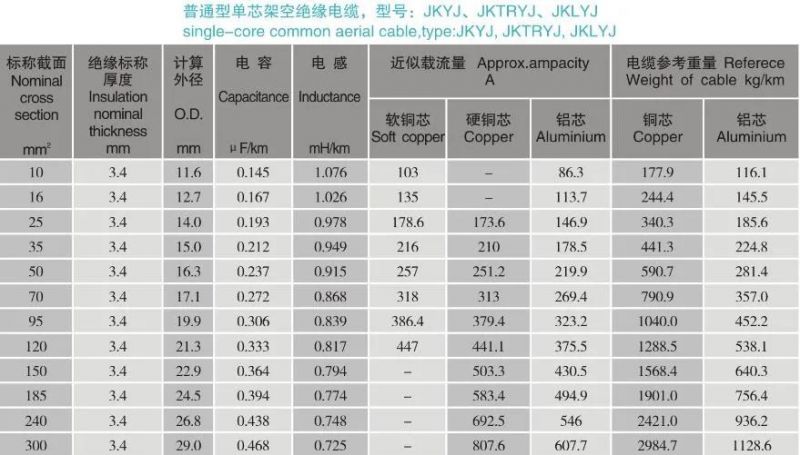

Main Technical Parameter

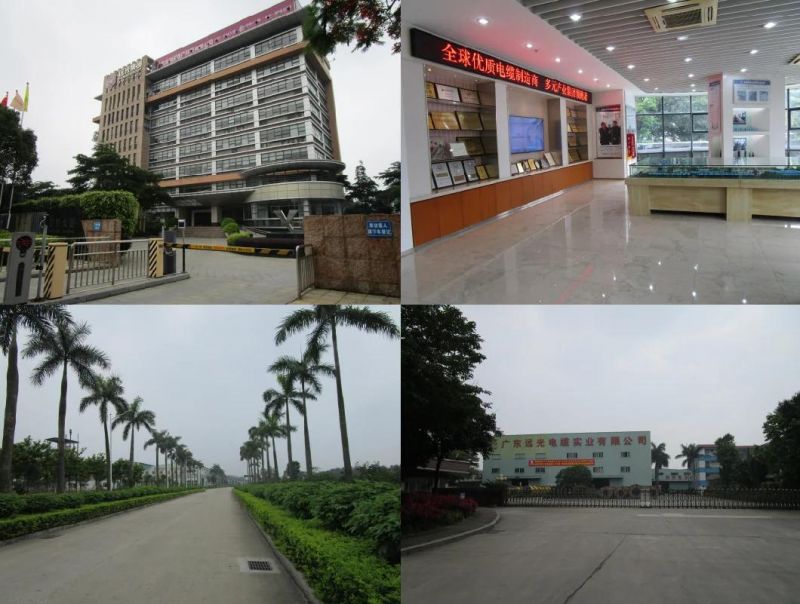

Our company

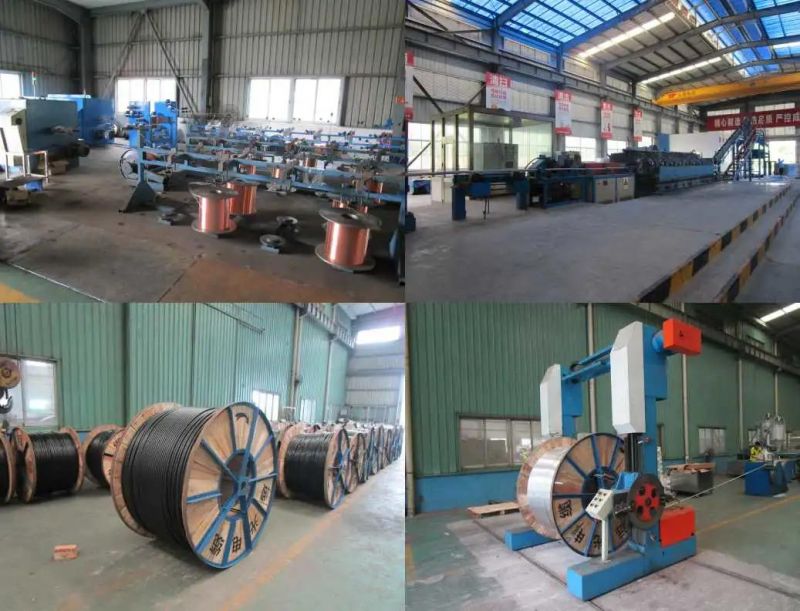

Workshop
Certificates
FAQ:
1. Are you a trading company or manufacture?
Vango cable is a professional manufacturer in Guangdong, China. Established in 1988, we have 30 years experience in this industry.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
For more information, please feel free to contact us:
Ms. Laney Zeng
Mobile:+86 15914024915
