E type thermocouple wire 0.38mm bare wire used in making elements for chemical industry

Shanghai Tankii Alloy Material Co., Ltd.
  • Type:Bare
  • Conductor Type:Solid
  • Application:Heating
  • Conductor Material:Chromel Constantan
  • Sheath Material:bare
  • Insulation Material:Bare

Base Info

  • Model NO.:E
  • Material Shape:Round Wire
  • Range of Application:Flame Retardant
  • Certification:ISO9001
  • Brand:Tankii
  • Dia:0.3,0.5,0.8,1.0,1.2,1.6,2.0,2.5,3.2mmm
  • Surface:bright ,oxidized
  • Grade:I,II,III
  • Standard:GB,IEC,ANSI
  • Diameter:0.025mm-8mm
  • Color:Natural color
  • EP:Chromel thermocouple wire
  • EN:Constantan thermocouple wire
  • MTC:yes
  • Bobbin:yes
  • Transport Package:Waterproof Paper, Weave Bag, Wooden Case
  • Specification:DIN 17470
  • Trademark:TANKII
  • Origin:China
  • HS Code:7505220000
  • Production Capacity:3000 Tons,Year

Description

Chemical Composition of e type thermocouple wire
Conductor Name
Polarity
Code
Nominal Chemical Composition /%
Ni
Cr
Cu
NiCr
Positive
EP
90
10
--
Cu-Ni(Constantan)
Negative
EN
45
--
55 Working Temperature Range of thermocouple wire
Diameter/mm
Long time Working temperature /ºC
Short period Working temperature /ºC
 0.3,  0.5
350
450
0.8, 1.0, 1.2
450
550
1.6,  2.0
550
650
2.5
650
750
3.2
750
900

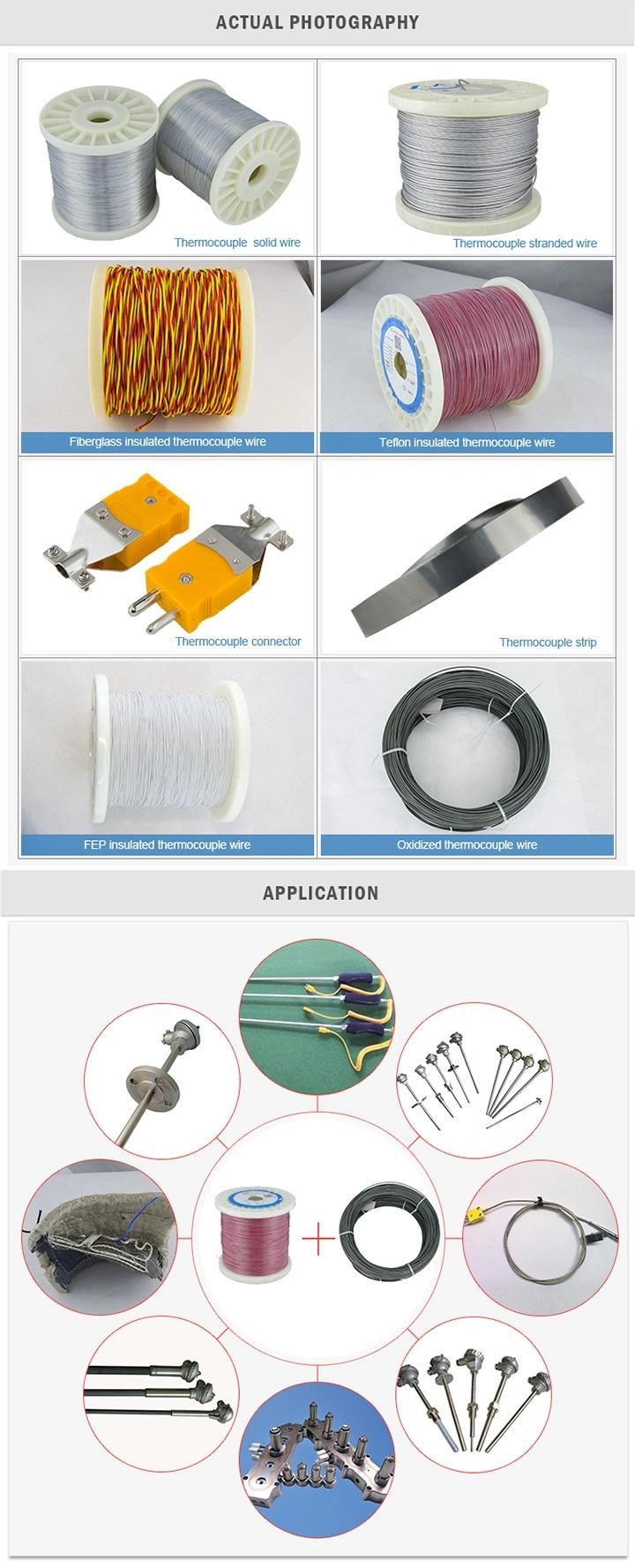

Application of thermocouple wire:
Heating - Gas burners for ovens
Cooling - Freezers
Engine protection - Temperatures and surface temperatures
High temperature control - Iron casting
