Overhead Conductor AAC Bare Conductor
Luoyang Sanwu Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Bare
- Insulation Material：No Insulation
Base Info
- Model NO.：AAC-WLL04
- Material Shape：Round Wire
- Range of Application：Overhead LV, Mv, Hv
- Certification：ISO9001, CE, CCC, RoHS, Ohsas
- Brand：Dayuan
- Product Name：Overhead All Aluminium Stranded AAC Conductor
- Standard：CSA IEC ASTM DIN BS GOST Sas
- Applicable Voltage：Low Voltage, Medium Voltage, High Voltage
- Type of Conductor：Stranded, Bare
- Certificate：ISO9001, CCC, CQC, Ohsas, TUV, etc.
- Transportation：by Sea or as Your Requirement
- Supplier′s Nature：Manufacturer, Exporter
- Core：According to Your Requirement
- Manufacturer Experience：Since 2006
- Factory Area：200, 081mm2
- Transport Package：Wooden Drum,Wooden Steel Drum,Rolls
- Specification：1.5-800mm2
- Trademark：Dayuan
- Origin：Luoyang, Henan, China
- HS Code：76149000
- Production Capacity：100, 000m,Day
Description
Maximunm Resistance
@20°CAWG o MCM in² mm mm kg/km kg Ω/km Peachbell 6 13.3 7×1.56 4.66 36.6 254 2.170 Rose 4 21.15 7×1.96 5.88 58.3 399 1.364 Iris 2 33.62 7×2.47 7.42 92.7 611 0.857 Pansy 1 42.41 7×2.78 8.33 117 740 0.681 Poppy 1/0 53.51 7×3.12 9.36 147.5 897 0.539 Aster 2/0 67.44 7×3.50 10.51 186 1136 0.427 Phlox 3/0 85.02 7×3.93 11.8 235 1375 0.339 Oxlip 4/0 107 7×4.42 13.25 296 1738 0.268 Daisy 266.8 135 7×4.96 14.88 373 2191 0.213 Laurel 266.8 135 19×3.01 15.05 373 2254 0.213 Tulip 336.4 171 19×3.38 16.9 470 2786 0.169 Canna 397.5 201 19×3.68 18.38 555 3219 0.143 Cosmos 477 242 19×4.02 20.12 666 3803 0.119 Syringa 477 242 37×2.88 20.18 666 3932 0.119 Dahlia 556.5 282 19×4.35 21.73 777 4431 0.102 Mistletoe 556.5 282 37×3.11 21.8 777 4495 0.102 Orchid 636 322 37×3.33 23.31 888 5154 0.089 Violet 715.5 363 37×3.53 24.73 1000 5791 0.079 Nasturtium 715.5 363 61×2.75 24.76 1000 5960 0.079 Arbutus 795 403 37×3.72 26.07 1110 6303 0.071 Lilac 795 403 61×2.90 26.11 1110 6501 0.071 Anemone 874.5 443 37×3.91 27.37 1222 6821 0.065 Crocus 874.5 443 61×3.04 27.36 1222 7144 0.065 Magnolia 954 483 37×4.08 28.55 1333 7428 0.059
Welcome come our factory at any time! we trust you will like it!
@20°C

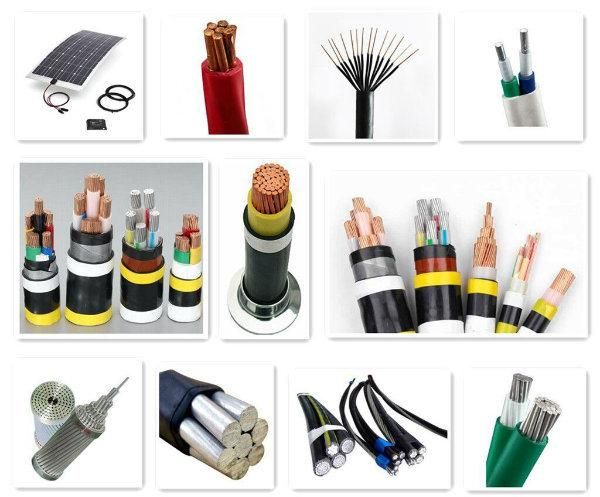

Relation Products
Company Information
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.
Certificates:
SECRI, ISO9001:2008, OHSAS, CCC, TUV Certifications:
Packaging & Shipping
Package: Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms: DHL, Fedex, UPS, etc. And usually by Sea.
Welcome come our factory at any time! we trust you will like it!
