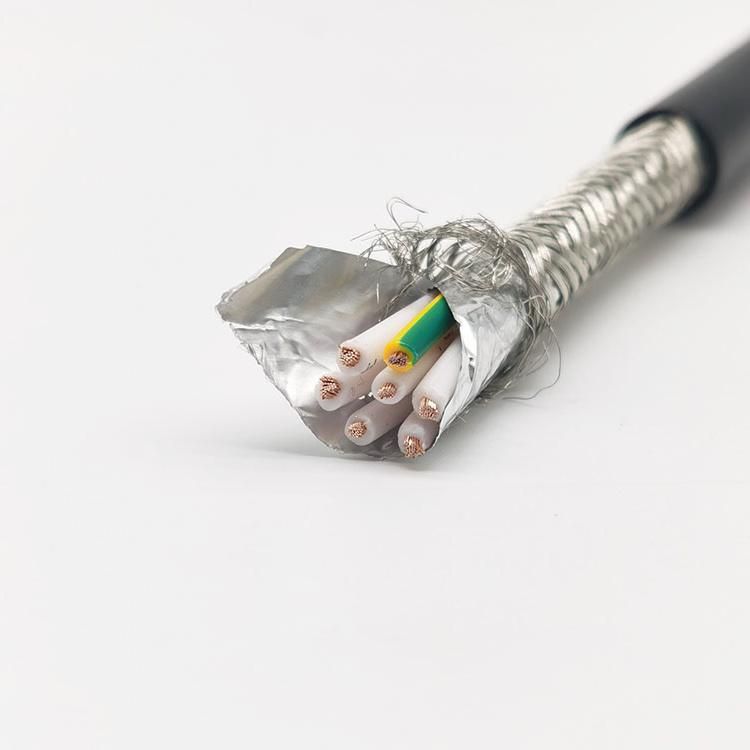

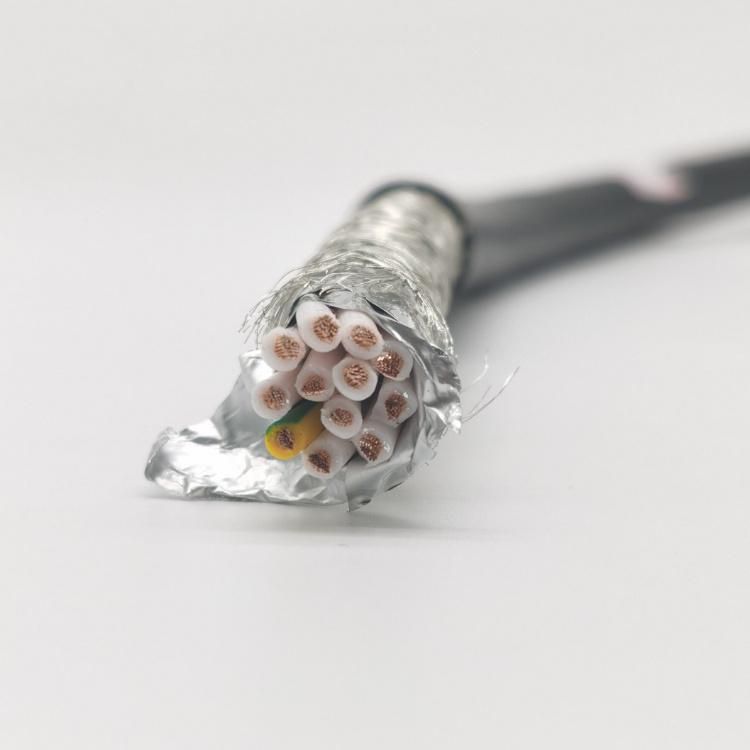

| Item | ANF8003 Cable High Speed Twisted Pair Shield Towline Cable for Transmission Occasions |
| Conductor | Solid copper conductor |
| Insulation | Special thermoplastic polyestor elestomer |
| Sheild | Tinned copper wire braid, coverage rate 80% |
| Outer Sheath | Special elastomer compound |
| Core Number | Multi-cores |
| Operating Voltage | Uo/U: 300/300 V & 300/500 V |
| Test voltage | 1500/2000 V |
| Operating temperature range | Flexible installations:-20ºC ~ +90ºC
Fixed installations:-40ºC ~ +90ºC |
| Color | Optional |
| Application | The cable adopts the core-shield twisted overall shielding structure, which can be used for transmission occasions that are easily affected by external high-frequency electric fields. It is suitable for modern machining, machine tool industry, robot and machinery production, construction machinery, heavy machinery factory, automobile manufacturing, automated warehouse, and other occasions requiring high flexibility. With abrasion resistance, low temperature resistance, environmental protection and flame retardant. The mesh shielding layer composed of high-density and high-conductivity material can ensure that the cable still has strong anti-interference ability during the process of bending back and forth. It is particularly suitable for applications where frequent bending under high mechanical loads, flexibility at high speeds,and complex electric field interference. |
