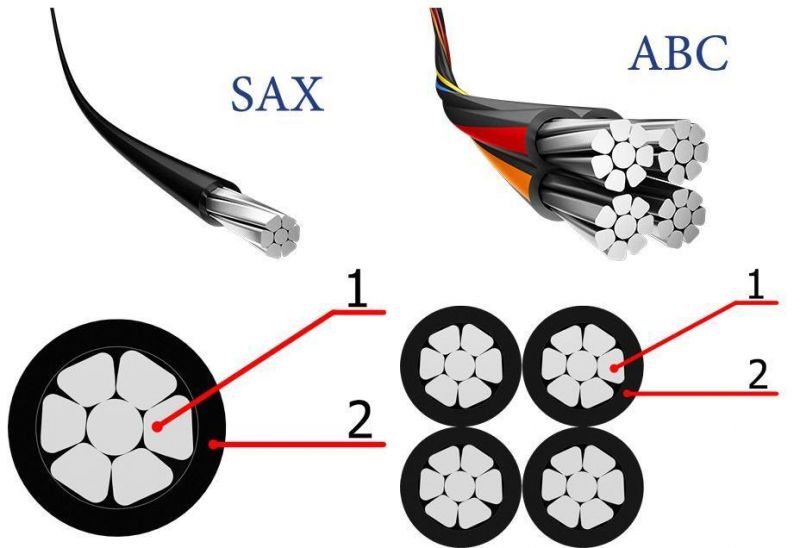

Sfs 5791 Cable Sax-W 70 12/20kv Covered Conductor Aluminum XLPE Insulation
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：No Sheath
- Material Shape：Round Wire
Base Info
- Model NO.：SAX-W 70
- Wire Core Material：ACSR Conductor
- Certification：ISO, CCC
- Model：ABC Aerial Cable
- Brand：OEM
- Transport Package：Wooden Drum
- Specification：2.5~400sqmm
- Trademark：OEM
- Origin：China(Mainland)
- HS Code：8544492100
- Production Capacity：500 Kilometer,Month
Description
EN 50397-1 Covered conductors for overhead lines
IEC 60228 Conductor standard
Technical Data (reference values)
| Product Name | Diameter over conductor | Diameter over covered conductor | Cable weight | Max. DC Resistance of conductor at 20ºC | Standard delivery length |
| mm | mm | kg/km | Ω/km | m | |
| SAX-W 35 | 6.9 | 11.5 | 160 | 0.986 | 2000 |
| SAX-W 50 | 8.0 | 12.7 | 200 | 0.720 | 2000 |
| SAX-W 70 | 9.7 | 14.3 | 270 | 0.493 | 2000 |
| SAX-W 95 | 11.3 | 16.1 | 350 | 0.363 | 2000 |
| SAX-W 120 | 12.8 | 17.6 | 425 | 0.288 | 2000 |
| SAX-W 150 | 14.2 | 18.9 | 510 | 0.236 | 200 |
Packing shipping
Any problem and inquiry pls contact with Tina
