• Model NO.：K
• Origin：China
• Production Capacity：50000

Basic Info.

Model NO. K Origin China Production Capacity 50000

Product Description

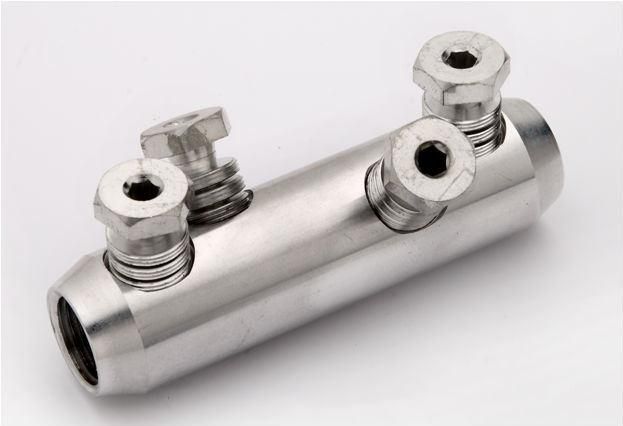

1. Three sizes cover conductor sizes from 25 mm2 to 400 mm², all products consist of a high strength and conductive body, at least two shear-head bolts. Optionally, inserts can be used for small conductor sizes. Suit to Conductor sizes 10-400mm2, can be used with almost every type of conductor with both Copper and Aluminum Cables, Conductor Cross-Section(mm²),10-35, 25-50,25-95,50-150,70-120,95-240,185-240,185-400,300-400,
2. The forging process of aluminum alloy ensures high strength of the body, Torque - controlled shear-head dolts guarantee a good electrical connection, easily installed with a normal socket wrench, no specialized equipment needed, Fewer sizes cover a large range of cable sizes,
3. Connectors have central moisture barrier to allow connection between plastic and paper cables, Connectors are High Tensile Ni/Sn-plated Aluminum,
4. Comply with IEC 61238-1 Class A, Fit use 6KV to 38kv voltage applications.
5. 6 series aluminum alloy, hot forged body, with Strength, Conductivity and processability, Tin coated, which combines electrical conductivity with electrical corrosion resistance. Tight torque tolerance of bolts(+/-2NM), Professional forging process and heat treatment process, ensure body strength.

1.       Three sizes cover conductor sizes from 25 mm2 to 400 mm², all products consist of a high strength and conductive body, at least two shear-head bolts. Optionally, inserts can be used for small conductor sizes. Suit to Conductor sizes 10-400mm2, can be used with almost every type of conductor with both Copper and Aluminum Cables, Conductor Cross-Section(mm²),10-35, 25-50,25-95,50-150,70-120,95-240,185-240,185-400,300-400,

2.       The forging process of aluminum alloy ensures high strength of the body, Torque - controlled shear-head dolts guarantee a good electrical connection, easily installed with a normal socket wrench, no specialized equipment needed, Fewer sizes cover a large range of cable sizes,

3.       Connectors have central moisture barrier to allow connection between plastic and paper cables, Connectors are High Tensile Ni/Sn-plated Aluminum,

4.       Comply with IEC 61238-1 Class A, Fit use 6KV to 38kv voltage applications.

5.       6 series aluminum alloy, hot forged body, with Strength, Conductivity and processability, Tin coated, which combines electrical conductivity with electrical corrosion resistance. Tight torque tolerance of bolts(+/-2NM), Professional forging process and heat treatment process, ensure body strength.
