• Model NO.：YJV,YJV22
• Material Shape：Round Wire
• Range of Application：Electric Power,Construction , Mining , Metallurgy
• Certification：ISO9001, CE, CCC, RoHS, VDE, CSA
• Brand：Fengda
• Sheath：XLPE
• OEM：Yes
• No. of Cores：1, 2, 3, 4
• Insulation Color：as Your Requirement
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper,XLPE
• Trademark：Feiya
• Origin：China
• HS Code：9544
• Production Capacity：80000 Meter,Meters Per Month

Basic Info.

Model NO. YJV/YJV22 Material Shape Round Wire Range of Application Electric Power,Construction , Mining , Metallurgy Certification ISO9001, CE, CCC, RoHS, VDE, CSA Brand Fengda Sheath XLPE OEM Yes No. of Cores 1, 2, 3, 4 Insulation Color as Your Requirement Transport Package Wooden Box Packing or Pallet Shipping Containers Specification copper/XLPE Trademark Feiya Origin China HS Code 9544 Production Capacity 80000 Meter/Meters Per Month

Product Description

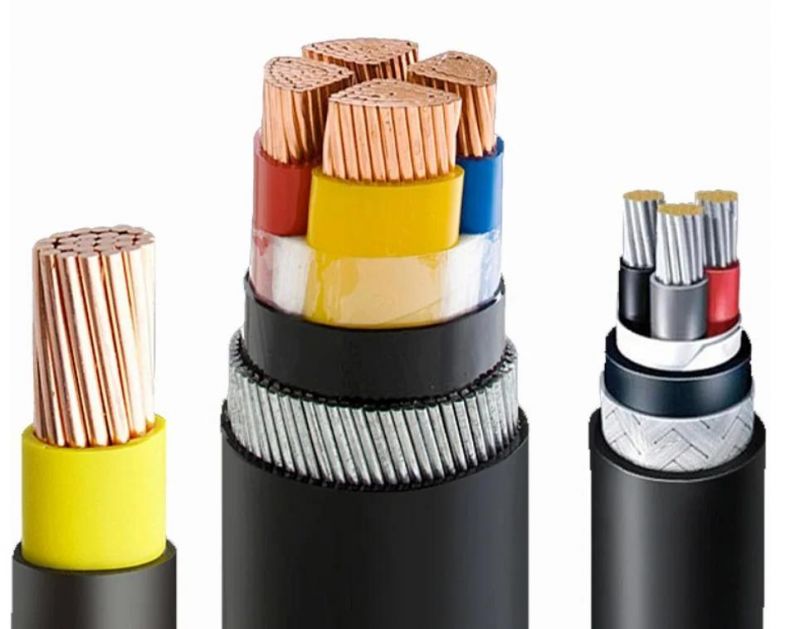

0.6/1kV XLPE Insulation waterproof Power Cable








Executive standard

It is manufactured as GB/T12706-2008, GB/T19666-2005 standard.

Application

It is used to transmit and distribute power on the power line of A.C rated voltage 0.6/1kV. The flame-retardant power cable is suitable for environment with demand on flame-retardant performance. refractory power cable is used in the environment with high demand on fire-resisting performance such as high-rise building, the big market.

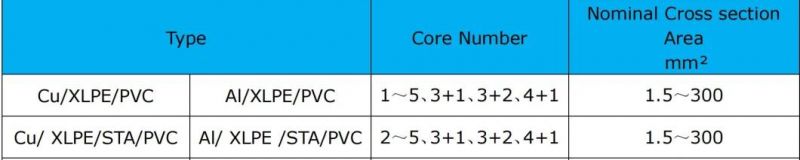

Type Designation & Apply Occasion of the cable

Product Description:
Type:  CU/XLPE/PVC               AL/XLPE/PVC
           CU/XLPE/STA/PVC       AL/XLPE/STA/PVC

Standard references:
The cable is manufactured according to GB/T 12706.1-2008 or IEC 60502-1:2004.
It is suitable to be laid in the power line with rated voltage of 0.6/1kv (U0/U) for power transmission.

Applications:
YJV power cable has very good thermal-mechanical properties, excellent electrical properties and chemical resistance, but yjv wire structure is sample. Yjv weight is light. It is easy to install. That is advantage of  YJV
Laid indoors, in tunnels and in pipes.
Able to withstand certain laying traction.
Not able to withstand mechanical external forces.
Single core cable is not allowed to be laid in magnetic made of material pipes .


The  main cores of yjv are single-core, 2cores, 3 cores, 4 cores, 5 cores, 3+1, 3+2, 4+1. 3+1 represents 3 phase wires + 1 ground wire, 3+2 represents 3 phase wires + 2 ground wires, 4+1 represents 4 phase wires + 1 ground wire.

Yjv Cable types include 1 square, 1.5 square, 2.5 square, 4 square, 6 square, 10 square, 16 square, 25 square, 35 square, 50 square, 70 square, 95 square, 120 square, 150 square, 185 square, 240 square, 300 square. For example, yjv3*240+1*120 cable is a cable consisting of 3 wires of 240 square and 1 ground wire of 120 square.

YJV , whose main specifications range from 1 square to 300 square and can also be individually customized, is an electrical cable used to transmit and distribute electrical energy. Most commonly used in urban power grids, real estate development, road construction, building construction etc.

YJV Cable Features:

1, 20 ºC conductor DC resistivity: copper core ≤ 0.017241Ωmm2/mo aluminum core ≤ 0.028Ωmm2/m.

2, flame retardant grade A, B, C, D, low smoke halogen-free WDZ, fire-resistant type NH, can be customized ZA-YJV, ZB-YJV, ZC-YJV (ZR-YJV), WDZ-YJV, N-YJV (NH-YJV).

3.The highest working temperature for yjv cable is 90ºC.

4, the cable should be laid at an ambient temperature of not less than 0 ºC, installed cable bending radius should be greater than 20 times the outer diameter of the cable. <5PC.

5,Laying temperature should be no less than 0ºC.

6.In the event of a short circuit, the highest temperature of the conductor should be no more than 160ºC for a duration of not more than 5 seconds.

7.YJV YJLV is suitable for indoor and outdoor laying, but cannot bear the action of mechanical external force. yjv22, yjlv22 are suitable for buried laying, can bear the action of mechanical external force, but cannot bear large tensile force.


Operation Characteristic

The installation of cables is not limited by the difference of elevation along the route. The ambient temperature should not be less than 0⁰C during  installation.The permissible bending radius for cable shall be complied with the following regulations:
For single core: 20(D+d) +/_ 5%
For multi-core: 15(D+d) +/_ 5%
(D--actual outer diameter of the cable; d--actual outer diameter of the conductor )
Single core cable of using in AC circuit shall be without armor or use non-magnetic metal material armor and shall not be laid in magnetic ducts.
