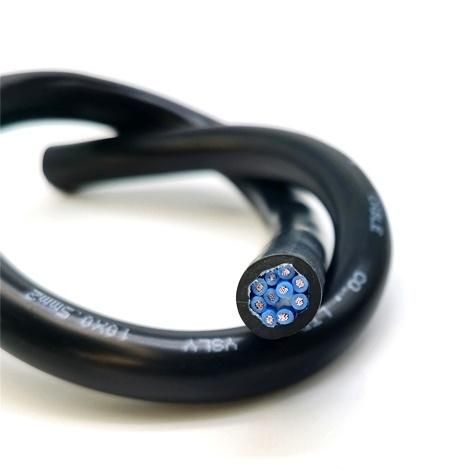

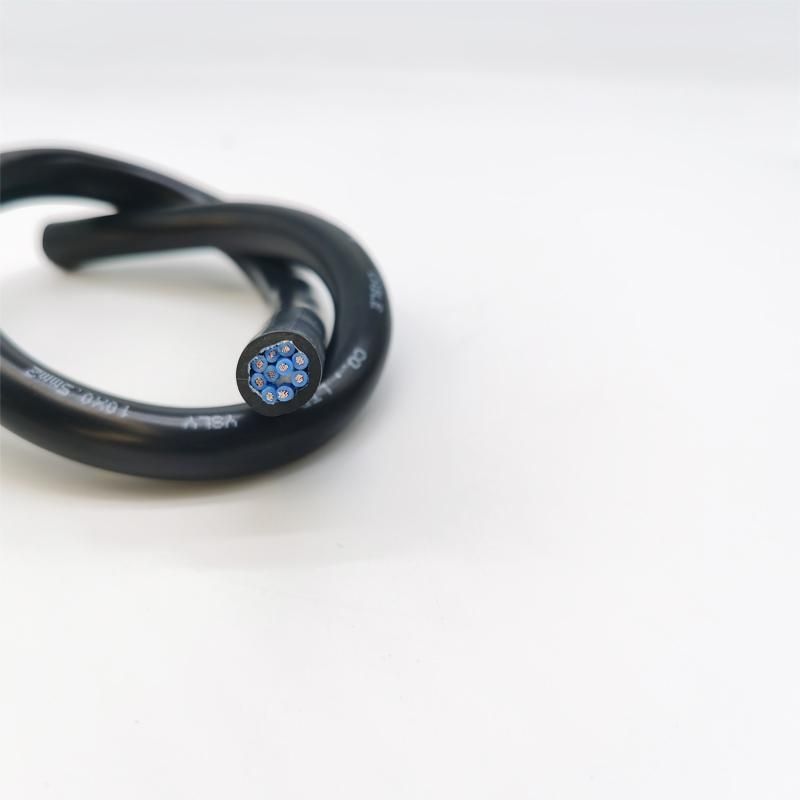

Ysly Cable 13X16AWG 37X16AWG for Use in Industrial Environment NBR Sheath

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Fixed Installation
  • Conductor Material：Copper
  • Sheath Material：NBR,High-Quality Nitrile Compound
  • Insulation Material：PVC

Base Info

  • Model NO.：YSLY Cable
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multi core
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemYSLY CableConductorCopper  InsulationPVC SheathNBR/ High-quality nitrile compoundNominal VoltageU0/U 300/500V Test Voltage2 kVTemperature Range-15ºC~70ºCDielectric strengthAC- 2000 V/ 5 MINConductor resistance13.7ΩKM Max at20ºCColorOptionalCertificationCEApplicationIn dry and damp locations for low and medium-level mechanical stress, but not in the open-air. To be used as a termination and connection cable in the control, measuring and signal technology. Suitable as a signal and impulse cable for control and inspection of industrial plants, production lines and Machinery.
