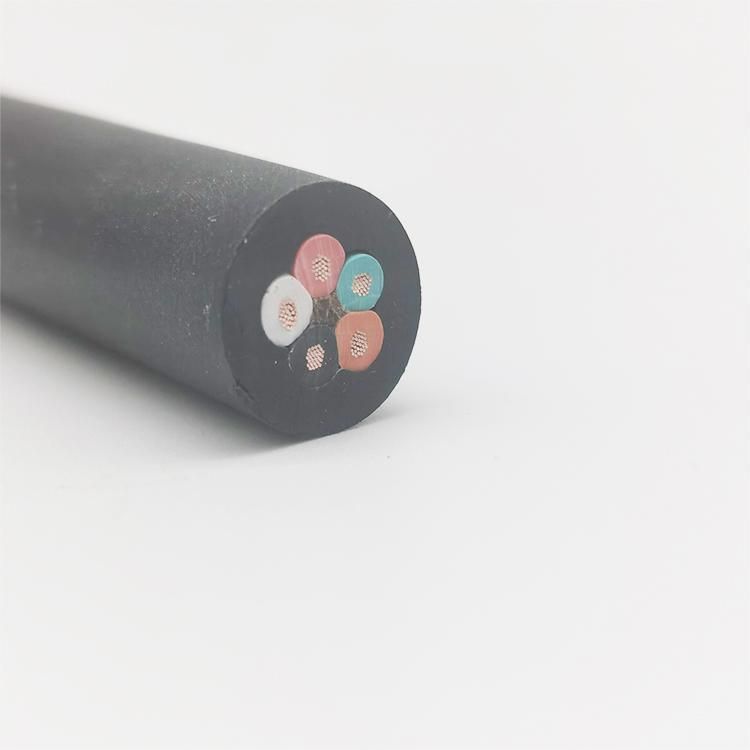

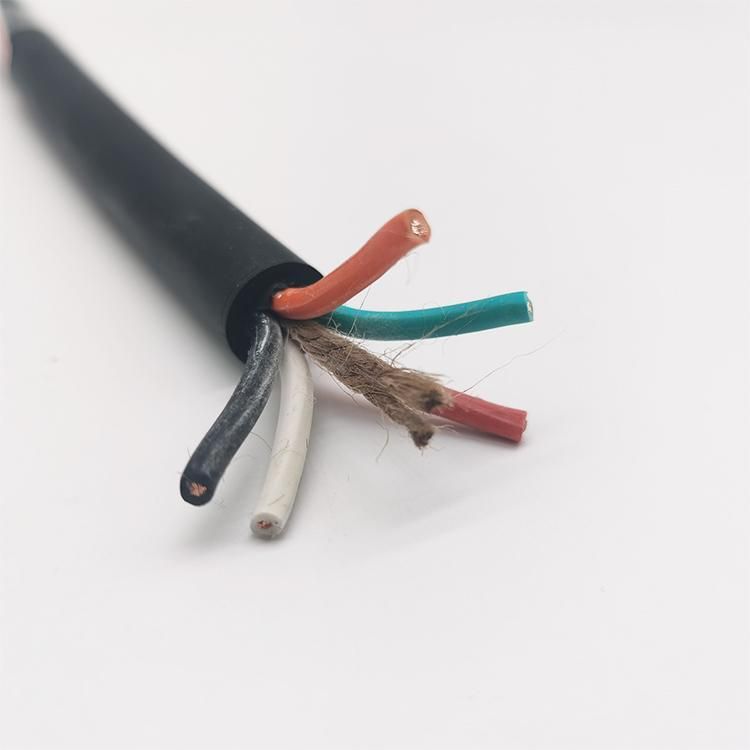

UL Sow 600V Portable Power Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Industrial Cable
  • Conductor Material：Copper
  • Sheath Material：CPE
  • Insulation Material：EPDM

Base Info

  • Material Shape：Round Wire
  • Range of Application：LSOH
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemSOWConductorFlexible stranded bare copper in accordance with ASTM B-3 and UL 62InsulationPremium grade color coded Ethylene Propylene Diene Monomoer (EPDM) insulation or Ethylene Propylene Rubber (EPR) compound class 3, comply with Table 8 of UL 62Outer SheathBlack Chlorinated Polyethylene (CPE), which is oil, solvents, ozone, weather, sunlight, and water resistant. CPE compound Class 1.4 90oC comply with Table 11 of UL 62
Other colors available on request.Rated Voltage 600VColorOptionalApplicationPortable tools, equipment, small motors and associated, machinery, industrial equipment, marine dockside power, appliances, equipment exposed to oils, solvents, flame, moisture and other electrical equipment where flexibility and durability are required. For applications up to 600 volts and for temperatures of -40°C to +90°C.
