• Model NO.：OPGW
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, CCC
• Brand：Jiapu
• Sheath Material：PVC
• Clad Tube：PBT, Al, Al-St, Stainless Steel Tube
• Transport Package：Export Wooden Drum or Wooden Steel Drum
• Specification：4, 8, 12, 24, 36, 48, 96 core
• Trademark：JP
• Origin：China
• HS Code：8544700000
• Production Capacity：5000 Kilometers,Month

Basic Info.

Model NO. OPGW Core Multicore Certification RoHS, UL, CE, ISO9001, CCC Brand Jiapu Sheath Material PVC Clad Tube PBT, Al, Al-St, Stainless Steel Tube Transport Package Export Wooden Drum or Wooden Steel Drum Specification 4, 8, 12, 24, 36, 48, 96 core Trademark JP Origin China HS Code 8544700000 Production Capacity 5000 Kilometers/Month

Product Description

Multi Mode PBT Type Optical Opgw Cable, Fiber Cable, adss cable

Description:
The core of aluminium clad PBT tube OPGW cable adopt the structure of stranding pattern, then the multipleoptical fiber PBT tubes are into cable, a layer of seamless aluminum tube will be clad on it which is as the protection tube of optical fiber metal, then stranding one or more aluminum clad steel wires or aluminum alloywires outside the protection tube. It eliminates the worries about the electrochemical corrosion among differentmetals and has very high application value.

Structure characteristics and application:
a.Seamless aluminum tube has uniform texture, consistent with the texture of the whole ground wire aluminum  clad steel wire, no worries about the electrochemical corrosion among different metals.
b.Since the texture and structure of the whole ground wire are uniform, it has good fatigue resistance.

Note: The OPGW is generally designed as per need, and four basic informations need to be provided.
-Fiber type G652 or G655 and cores numbers
-Optic cable outer diameter or section area requirement
-RTS (rated tensile strength) requirement.
-Short circuit current capacity

Why to choose Jiapu Cable:
1.Competitive price & On time delivery & Short lead time
2.Strict quality control system
3.Professional international logistic service and guide
4.Leading manufacturer for ACS & OPGW in China
5.Full range of testing equipments to ensure products' performance

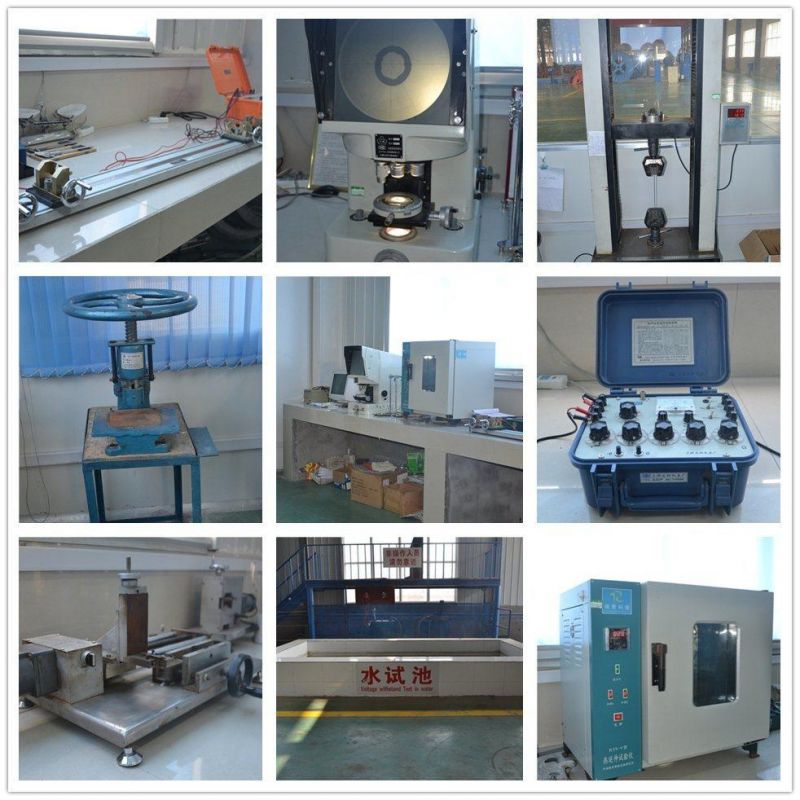

QC &QA

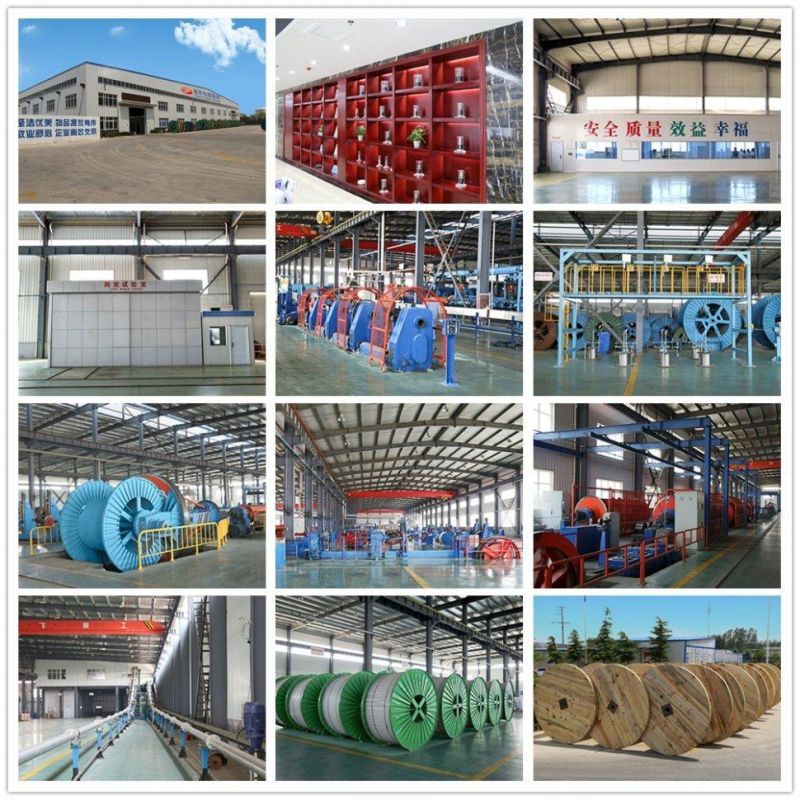

FACTORY VIEW

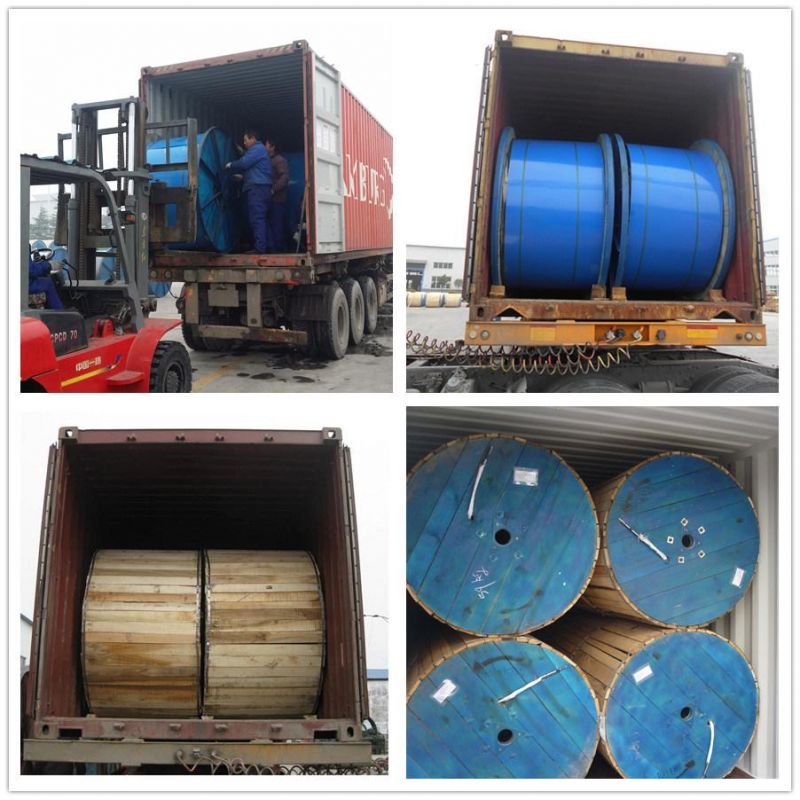

LOADING DETAILS

CUSTOMER VISIT
