H05vvh6-F Factory Hot Sell PVC Insulated Sheathed Flat Elevator Travel Cables
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：H05vvh6-F
- Material Shape：Flat Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description

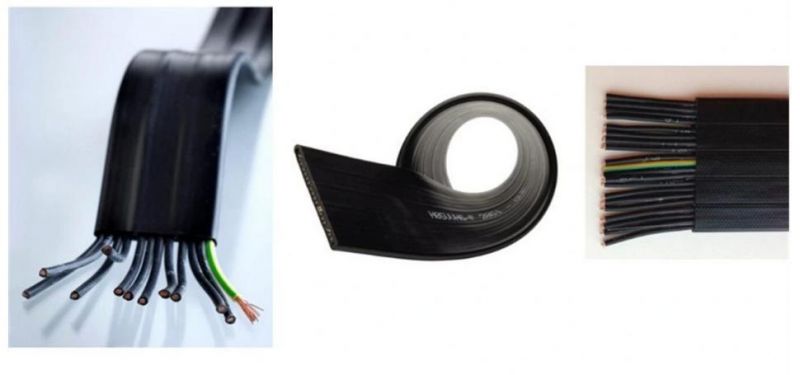

PVC Insulated and PVC sheated Flexible cables
Application
The cables are used for applications with medium mechanical stresses and sharp bending in one place. They are suitable for use in dry, damp and wet rooms as power and control cable, especially on hoisting equipment, handling systems, machine tools, etc.

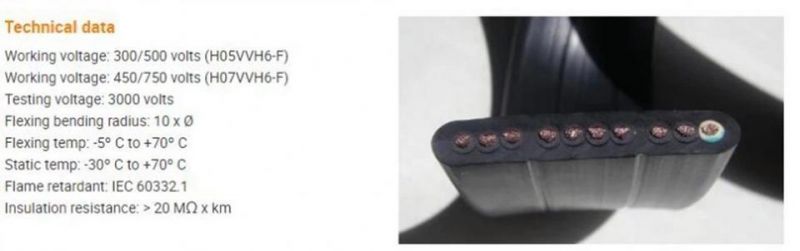

Technical Characteristics
| WORKING VOLTAGE | 300/500V (H05VVH6-F) ; 450/700V (H07VVH6-F) |
|---|---|
| TEST VOLTAGE | 2KV (H05VVH6-F) ; 2.5KV (H07VVH6-F) |
| BENDING RADIUS | 10 × cable Ø |
| FLEXING TEMPERATURE | - 5 ºC to + 70 ºC |
| STATIC TEMPERATURE | -40 ºC to +70 ºC |
| FLAME RETARDANT | Test class B according to VDE 0472 part 804, IEC 60332-1 |
| INSULATION RESISTANCE | 20 MΩ x km |
DIMENSIONS
| NO. OF | NOMINAL CROSS | NOMINAL DIAMETER | NOMINAL THICKNESS | CABLE DIMENSIONS | NOMINAL |
| CORES | SECTIONAL AREA | OVER CONDUCTOR | OF INSULATION | WIDTH | WEIGHT |
| mm2 | mm | mm | mm | kg/km |
| 6 | 0.75 | 1.3 | 0.6 | 72 | 118 |
| 12 | 0.75 | 1.3 | 0.6 | 128 | 227 |
| 18 | 0.75 | 1.3 | 0.6 | 184 | 336 |
| 20 | 0.75 | 1.3 | 0.6 | 208 | 376 |
| 24 | 0.75 | 1.3 | 0.6 | 248 | 450 |
