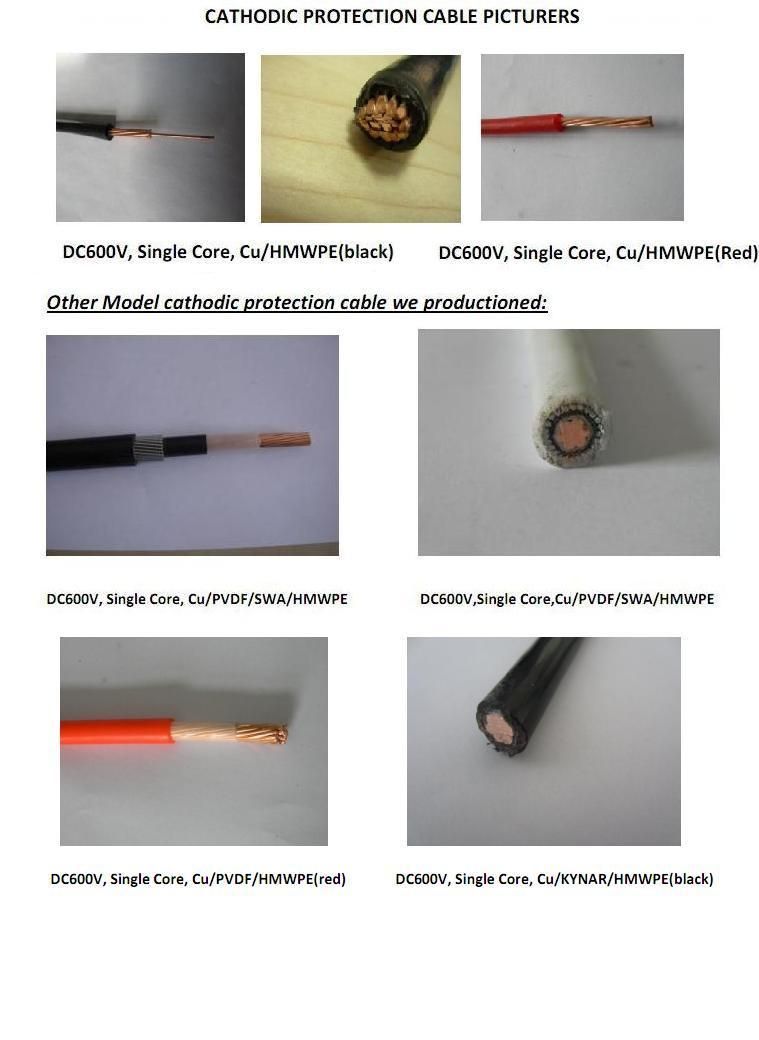

Single Core Cu/PVDF/Hmwpe Cathodic Cable 1X10mm2

YIFANG ELECTRIC GROUP INC.
  • Application：Cathodic Protection Cable
  • Voltage：Low Voltage Power Cable
  • Current：DC & AC
  • Insulation Material：PVDF
  • Sheath Material：Hmwpe
  • Material Shape：Round Wire

Base Info

  • Model NO.：Cu,PVDF,HMWPE Cathodic Cable 1x10mm2
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE
  • Model：Cu,PVDF,Hmwpe Cathodic Cable 1X10mm2
  • Brand：Yifangcable
  • Rated Voltage：600,1000V
  • Size：Cu,PVDF,Hmwpe Cathodic Cable 1X10mm2
  • Transport Package：Wooden Drum
  • Specification：1.1m drum
  • Trademark：Yifangcable
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1000km,Month

Description

Single Core Cu/PVDF/HMWPE Cathodic Cable 1x10mm2ItemDescriptionUnitData1Type Cathodic protection cable2Rated Voltage 600/1000V3Size 1x10mm24Coresno.s15Norminal cross sectional areamm2106Conductor Stranded copper wire7Standing No.Of Wireno.s78Conductor Diametermm4.09Insulation PVDF10Norminal Thicknessmm0.5511Sheath HMWPE12Norminal Thicknessmm1.6513Overall diametermm8.4514Approx.Weightkg/km138
Single Core Cu/PVDF/Hmwpe Cathodic Cable 1X10mm2
