• Model NO.：gauge cable
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CCC
• Brand：Hongda
• 1.5 - 10 Sqmm：Solid Conductor
• 16 - 400 Sqmm：Non Compacted Circular Stranded
• Transport Package：100m Per Roll,Reel, or as Customer Requirement
• Specification：1.5mm2 to 400mm2
• Trademark：Hongda Cable
• Origin：Made in China
• HS Code：8544492900
• Production Capacity：1800km,Month

Basic Info.

Model NO. gauge cable Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC Brand Hongda 1.5 - 10 Sqmm Solid Conductor 16 - 400 Sqmm Non Compacted Circular Stranded Transport Package 100m Per Roll/Reel, or as Customer Requirement Specification 1.5mm2 to 400mm2 Trademark Hongda Cable Origin Made in China HS Code 8544492900 Production Capacity 1800km/Month

Product Description

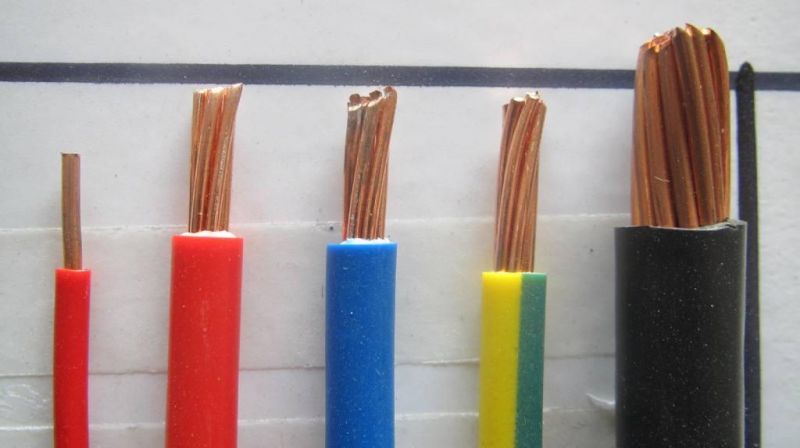

Thw Thw-90 14 gauge 12 gauge 10 AWG #8 cable Wire


General Information

Single conductor PVC (Polyvinyl Chloride) insulated building wire is rated 600 volts as defined in the Philippine Electrical Code. Type THW (75 °C) wires and cables are intended for indoor service in any of the wiring methods recognized by the National Electrical Code (NEC) and Philippine Electrical Code (PEC). They are designed for dry and wet locations.

Specifications

Conductors - Solid or stranded soft annealed copper that meets the physical and electrical requirements of ASTM, UL, PNS or Philippine Electrical Code specifications, and are available in sizes 2.0 mm² to 500 mm². They are also available in AWG sizes.

Insulation

Class THW Thermoplastic, PVC is heat resistant grade insulating compound normally used for type THW, 75°C building wires. Insulation thickness for sizes 2.0mm2 to 500 mm2 THW wires and cables conform with the UL, PSA and PEC Standards.

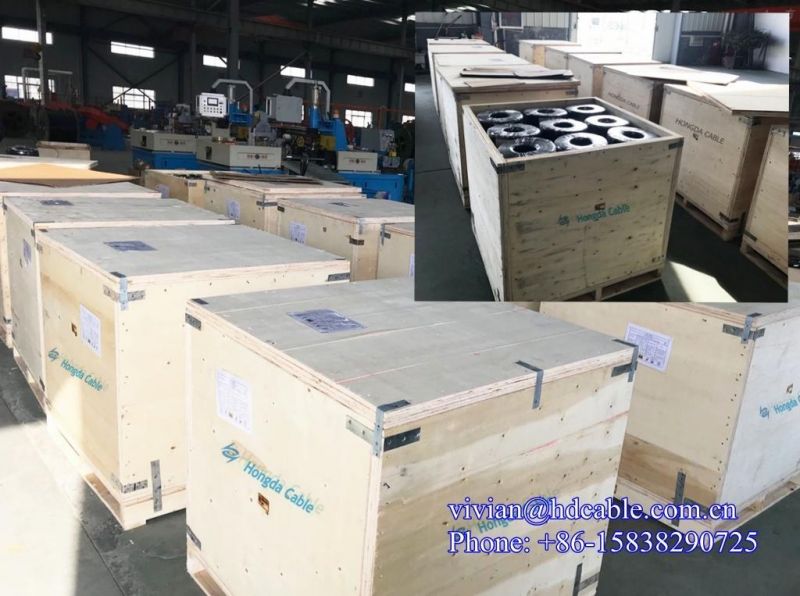

Packing
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.

Product Features

• Tough and Light weight
• Oil resistant
• Easy to terminate
• Flame retardant
• Good heat and moisture resistant
• Resistant to most chemicals

Technical Data of Type THW Building Wire

Size	Construction	Insulation Thickness	Approximate O.D.
1.6 mm	solid	1.20 mm	4.05 mm
2.0 mm	solid	1.20 mm	4.45 mm
2.6 mm	solid	1.20 mm	5.05 mm
3.2 mm	solid	1.60 mm	6.45 mm
2.0 sq. mm	7 x 0.60 mm	1.20 mm	4.25 mm
3.5 sq. mm	7 x 0.80 mm	1.20 mm	4.85 mm
5.5 sq. mm	7 x 1.00 mm	1.20 mm	5.45 mm
8.0 sq. mm	7 x 1.20 mm	1.60 mm	6.85 mm
14 sq. mm	7 x 1.60 mm	1.60 mm	8.05 mm
22 sq. mm	7 x 2.00 mm	1.60 mm	9.25 mm
30 sq. mm	7 x 2.30 mm	1.60 mm	10.15 mm
38 sq. mm	19 x 1.60 mm	1.80 mm	11.65 mm
50 sq. mm	19 x 1.80 mm	1.80 mm	12.65 mm
60 sq. mm	19 x 2.00 mm	1.80 mm	13.65 mm
80 sq. mm	19 x .230 mm	2.00 mm	15.55 mm
100 sq. mm	19 x 2.60 mm	2.00 mm	17.05 mm
125 sq. mm	37 x 2.10 mm	2.20 mm	19.15 mm
150 sq. mm	37 x 2.30 mm	2.20 mm	20.55 mm
200 sq. mm	37 x 2.60 mm	2.40 mm	23.05 mm
250 sq. mm	61 x 2,30 mm	2.40 mm	25.60 mm
325 sq. mm	61 x 2.60 mm	2.60 mm	28.70 mm
400 sq. mm	61 x 2.90 mm	2.60 mm	31.40 mm
500 sq. mm	61 x 3.20 mm	2.80 mm	34.50 mm



SIZE AWG O MCM	CROSS SECTION AL mm2	STRANDING Number of wire x diameter mm.	INSULATION THICKNESS mm.	EXTERNAL DIAMETER mm	TOTAL WEIGHT Kg/Km	PACKAGING
14	2,08	1 x 1,63	1,14	3,91	31,60	A,B
12	3,31	1 x 2,05	1,14	4,33	44,50	A,C
10	5,26	1 x 2,59	1,14	4,87	64,40	A,D
8	8,34	1 x 3,26	1,52	6,30	104,50	A,B
14	2,08	7 x 0,62	1,14	4,14	33,20	A,B
12	3,31	7 x 0,78	1,14	4,62	46,90	A,C
10	5,26	7 x 0,98	1,14	5,22	67,50	A,D
8	8,37	7 x 1,23	1,52	6,73	116,60	A,B,E
6	13,30	7 x 1,55	1,52	7,69	170,40	A,E
4	21,15	7 x 1,96	1,52	8,92	255,50	A,E
3		7x2.2	1,52
2	33,62	7 x 2,47	1,52	10,45	388,90	A,E
1	42,36	7 x 2,78	2,03	12.4	482,90	A,D,E
1/0	53,49	19 x 1,89	2,03	13,51	621,00	D,E,Z
2/0	67,43	19 x 2,12	2,03	14,66	778,00	D,E,Z
3/0	85,01	19 x 2,39	2,03	16,01	934,00	D,E,Z
4/0	107,20	19 x 2,68	2,03	17,46	1159,00	D,E,Z
250	127,00	37 x 2,09	2,41	19,45	1368,00	Z
300	152,00	37 x 2,29	2,41	20,85	1623,00	Z
350	177,00	37 x 2,47	2,41	22,11	1876,00	Z
400	203,00	37 x 2,64	2,41	23,30	2128,00	Z
500	253,00	37 x 2,95	2,41	25,47	2631,00	Z
600	304,00	37 x 3,23	2,79	28,19	3174,00	Z
650	329,00	37 x 3,37	2,79	29,17	3345,00	Z
700	355,00	37 x 3,49	2,79	30,01	3609,00	Z

Please contact us for technical support with the right cable selection for your power distribution projects and to discuss your maintenance or project specific requirements. We provide tailored solutions for this cable range which include storage, cutting to length, and 2 days collection as standard.
