• Model NO.：NA2XS(FL)2Y
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS
• Model：N2xs2y , Na2xs2y
• Brand：Hongda
• Armour：Steel Wire,Tape Armour,No
• Conductor Material：Copper,Aluminum
• Standard：IEC 60502-1
• Quality Guarantee：Ten Years
• Core：1core,Multicore
• Insulated Color：as Your Requirement
• Sheath Color：Black
• Sample：Yes
• Manufacture：Yes
• Transport Package：Wooden Drum
• Specification：single core power cable
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544601200
• Production Capacity：600km,Per Months

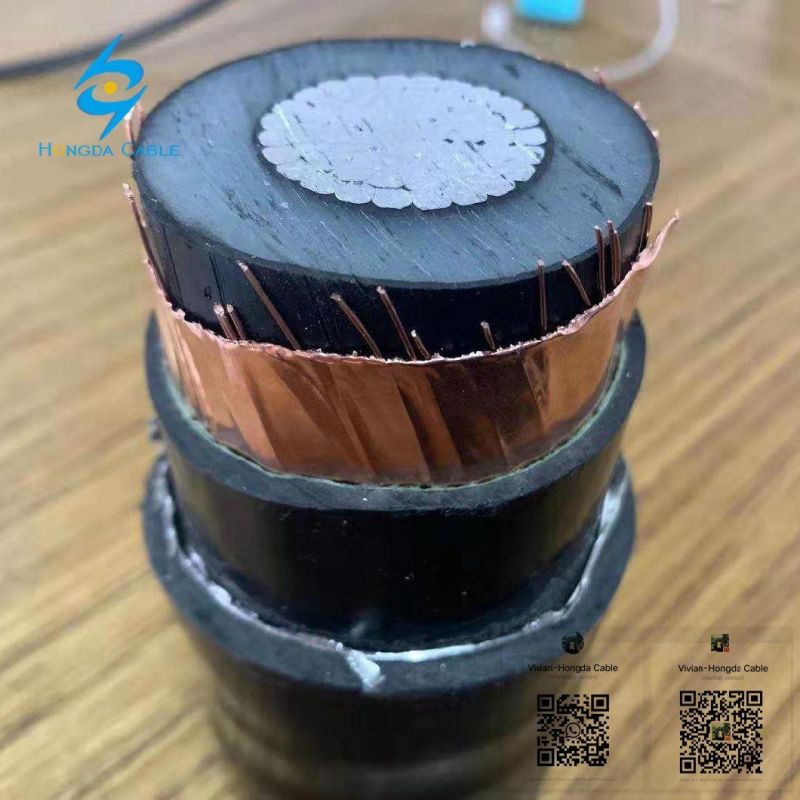

NA2XS(F)2YSwelling powder on tapeLongitudinally watertightNA2XS(FL)2YSwelling powder on tape + Aluminium tape tightly bonded to the PE SheathLongitudinally and radially watertight

Construction Table

6/10 (12)kV
12/20 (24)kV
18/30 (36)kV

CONDUCTOR

Class 2 Stranded Aluminium

INNER SEMI-CONDUCTIVE LAYER

Semi-Conductive Material

INSULATION

XLPE (Cross-Linked Polyethylene)

OUTER SEMI-CONDUCTIVE LAYER

Semi-Conductive Material

SCREEN

Copper Wires

Copper Wires and Tape

TAPE

-

Swellable Tape

OUTER SHEATH

PE (Polyethylene)

TAPE 2-

Aluminium Foil Tape Tightly Bonded to Sheath

NA2XS2Y / NA2XS(F)2Y / NA2XS(FL)2Y CABLES

 NA2XS(F)2Y Aluminium Conductor XLPE PE - 6/10 (12)kV CableNA2XS(FL)2Y Aluminium Conductor XLPE PE - 6/10 (12)kV CableNA2XS(F)2Y Aluminium Conductor XLPE PE - 12/20 (24)kV CableNA2XS(FL)2Y Aluminium Conductor XLPE PE - 12/20 (24)kV CableNA2XS(F)2Y Aluminium Conductor XLPE PE - 18/30 (36)kV CableNA2XS(FL)2Y Aluminium Conductor XLPE PE - 18/30 (36)kV CableOur MV cables are available in specific lengths as well as in extended long lengths to facilitate installation and to reduce the number of joints. British Standard MV cablesVoltage RatingBS6622 - standard British MV cable6.35/11kV19/33kV BS7835 - LSZH British MV cable6.35/11kV19/33kV European standard MV cablesVoltage Rating N2XSY - single copper core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVN2XS2Y - single copper core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVNA2XSY - single aluminium core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVNA2XS2Y - single aluminium core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVN2XSEY - 3 copper core XLPE insulated with PVC oversheath6/10kV  N2XS(F)2Y - single copper core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVN2XS(FL)2Y  - single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV NA2XS(F)2Y - single aluminium core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVNA2XS(FL)2Y - single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV18/30kV

Custom designed medium voltage cables

In addition to standard medium voltage cables, we can design and supply bespoke MV cable products developed for your specific applications. Our custom designed cable solutions provide for variants developed and manufactured around a number of parameters, including:

Cross-sectional area: generally 35mm² up to 1000mm2
Number of cores: generally one or three
Solid or stranded aluminium conductors: for applications requiring a lighter cable weight, also often more economical due to lower aluminium prices.
Stranded copper conductors: for applications requiring a smaller overall diameter and higher transmitting properties.
Bedding
Bonded or strippable out semi-conducting layer
Water tightness: longitudinal, longitudinal + quasi-radial, longitudinal + radial
Insulation layers (conductor screen, insulation and insulation screen): XLPE, which is more commonly used for MV cables, or EPR which is more flexible and often better suited to marine and offshore applications.
Metallic screen: to nullify the electric field outside the MV cable. Concentric copper wire screens, Aluminium foil laminate, or extruded lead alloy sheath.
Twisted three-core cable or triplex
Armouring: for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.
Tapes: Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.
Outer Sheath: compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.

Medium Voltage cable testing

Some of the tests you would expect from a medium voltage cable manufacturer, and which are performed on our MV cables, include:

Routine tests: These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath

Sample tests: These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test

Type tests: These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.

^{Packaging&Delivery.}

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 30 days(detailly depend on the order quantity)

^{Contact us}
Hongda Cable is a leading supplier of medium voltage cable manufactured to international standards. In addition to our range of unarmoured medium voltage cables we also supply MV armoured cables to British standards BS6622 and BS7835. For expert advice on international medium voltage cable selection and delivery logistics, contact our international team by email or by telephone on +86 158 38290725.
