• Model NO.：wind 90 H07BN4-F
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Fengda
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

DESCRIPTION AND APPLICATIONS

Rubber insulated flexible cable with rubber outer sheath, for installation in dry, damp and wet environments, in the open air, in workshops with explosive atmospheres, for connections with moderate mechanical stresses, e.g. industrial or agricultural workshop equipment, large boilers, heaters, portable lamps, electric tools such as drills and disk saws, electric appliances, portable motors and generators on building sites or farms, etc; also for fixed installations along floors or shelving on temporary work sites and in
cabin accommodation; for connecting structural elements in lifting apparatuses , machinery. etc. Suitable for applications up 1000 V if adequately protected in fixed installations {i.e. inside pipes or equipment] as well as for rotor connections to lifting apparatus motors.
The WiND 90 cable has been designed for wind-tower application. The particular conductor construction and the used materials have improved the cable torsion resistance (max 150°/m), the key requirement for drop cables in wind-generators.


This cable can be installed in open air or be buried but with extra mechanical protection (tube, gutter).

Conductors laid up

Assembled conductors.

USE <'HAR>H07 BN4-F  N X (or G ) S

• N = number of cores
• G = with Green-Yellow
• x = without Green-Yellow
• S = section in mm²

Nota

Max continuous operating conductor temperature in normal use :

+90°C   ( in every case of mobile installation)

+250°C ( in short circuit )

Permissible current rating is measured for an ambient temperature of 30°C and a maximum operating and conductor temperature of 90°C .

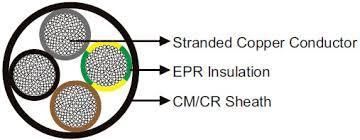

Design Conductor: Flexible and annealed copper acc. to IEC 60228 class 5
Insulation: EPDM-rubber class EI6
Core identification: 2-core: blue, brown
3-core: green/yellow, blue, brown
4-core: green/yellow, brown, black, grey
5-core: green/yellow, blue, brown, black, grey
7-core: green/yellow,
6 cores black number-marked 1-6
Sheath: Weather- and oil-resistant rubber, halogen free. Fulfills class EM2, EM6 and EM7

Type of the cables
