0.6/1 Kv PE Insulated Aluminum Conductor Aerial Line Cables (AER)
Henan Hongda Cable Co., Ltd.- Application：Construction, Overhead, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：No
- Material Shape：Round Wire
Base Info
- Model NO.：aer code
- Wire Core Material：Aluminium
- Certification：ISO, CCC
- Model：Aer
- Brand：Hongda
- Standard：IEC, BS, AS,NZS
- Transport Package：Wooden Drum or as Customer Requirement
- Specification：6mm2 to 120mm2
- Trademark：Hongda Cable
- Origin：China
- HS Code：8544492100
- Production Capacity：1600km,Month
Description
3. TECHNICAL DATA
Standard: SF 31/1999
HD 626 S1
Rated voltage: 0.6/1kV
Test voltage: 4kV /50 Hz
Temperature range
Laying temperature: min. -20ºC
Conductor temperature: max. +70ºC
Short-circuit temperature: max. +130ºC / 5s
Bending radius (min): 18xΦ of cable
Core identification: 1, 2, resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral conductor is smooth. Inscripition on the cores identify cable.
4. CONSTRUCTION DATA OF POWER CABLES / AER - ABC:

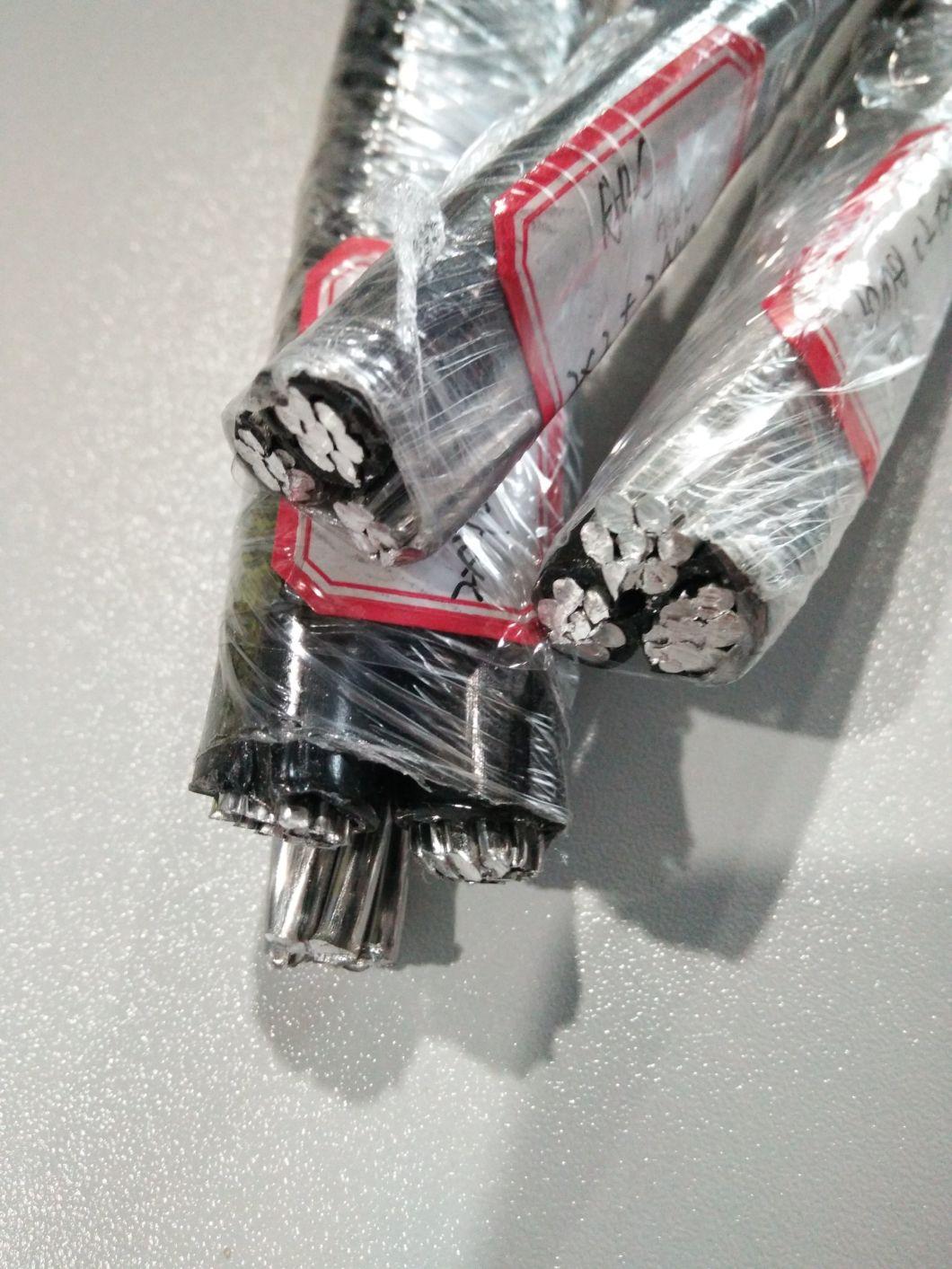

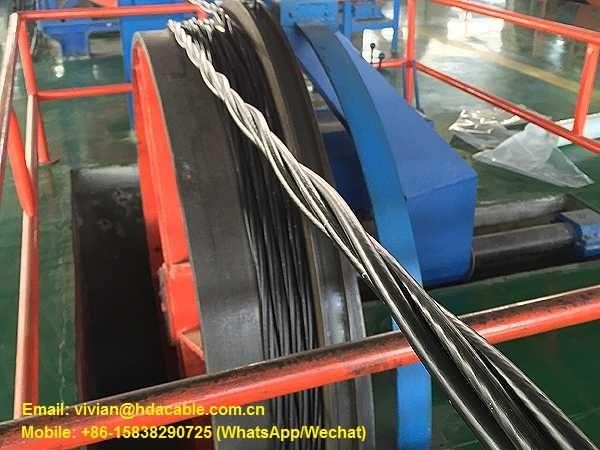

AER XLPE insulated bundled overhead line
| Number of cores x nominal cross section | Max. conductor resistance | Current rating in the air | Outer diameter | Total weight cable | Standard lengths / packing |
| mm2 | Ω/km | A | mm | kg/km | m |
| 2x16 | 1.91 | 75 | 15 | 134 | 1000 D |
| 3x16 | 1.91 | 69 | 16 | 202 | 1000 D |
| 4x16 | 1.91 | 69 | 18 | 271 | 1000 D |
| 2x25 | 1.20 | 107 | 17 | 198 | 1000 D |
| 3x25 | 1.20 | 107 | 19 | 298 | 1000 D |
| 3x25+54.6 | 1.20 | 107 | 25.3 | 494 | 1000 D |
| 3x25+54.6+16 | 1.20 | 107 | 27.8 | 557 | 1000 D |
| 3x25+54.6+2x16 | 1.20 | 107 | 28 | 621 | 1000 D |
| 3x25+70 | 1.20 | 107 | 26.8 | 534 | 1000 D |
| 3x25+70+16 | 1.20 | 107 | 28.4 | 598 | 1000 D |
| 3x25+70+2x16 | 1.20 | 107 | 28.7 | 661 | 1000 D |
| 4x25 | 1.20 | 107 | 21 | 399 | 1000 D |
| 4x25+25 | 1.20 | 107 | 21 | 500 | 1000 D |
| 2x35 | 0.868 | 132 | 20 | 271 | 1000 D |
| 3x35+54.6 | 0.868 | 132 | 29.2 | 604 | 1000 D |
| 3x35+54.6+16 | 0.868 | 132 | 30.1 | 668 | 1000 D |
| 3x35+54.6+2x16 | 0.868 | 132 | 30.1 | 731 | 1000 D |
| 3x35+70 | 0.868 | 132 | 29.5 | 644 | 1000 D |
| 3x35+70+16 | 0.868 | 132 | 30.6 | 708 | 1000 D |
| 3x35+70+2x16 | 0.868 | 132 | 30.6 | 771 | 1000 D |
| 4x35 | 0.868 | 132 | 24 | 545 | 1000 D |
| 4x35+25 | 0.868 | 132 | 24 | 646 | 1000 D |
| 4x35+2x25 | 0.868 | 132 | 24 | 748 | 1000 D |
| 4x35+35 | 0.868 | 132 | 24 | 683 | 1000 D |
| 3x50+70 | 0.641 | 165 | 33.2 | 763 | 1000 D |
| 3x50+54.6 | 0.641 | 165 | 32.9 | 723 | 1000 D |
| 3x50+54.6+2x16 | 0.641 | 165 | 33 | 850 | 1000 D |
| 3x50+54.6+2x25 | 0.641 | 165 | 33 | 916 | 1000 D |
| 3x50+70+16 | 0.641 | 165 | 33.4 | 827 | 1000 D |
| 3x50+70+2x16 | 0.641 | 165 | 33.4 | 890 | 1000 D |
| 4x50 | 0.641 | 165 | 28 | 754 | 1000 D |
| 4x50+16 | 0.641 | 165 | 28 | 823 | 1000 D |
| 4x50+25 | 0.641 | 165 | 28 | 855 | 1000 D |
| 4x50+2x25 | 0.641 | 165 | 28 | 957 | 1000 D |
| 4x50+35 | 0.641 | 165 | 28 | 892 | 1000 D |
| 4x50+2x35 | 0.641 | 165 | 28 | 1030 | 1000 D |
| 3x70+16 | 0.443 | 205 | 30 | 804 | 1000 D |
| 3x70+70 | 0.443 | 205 | 37.4 | 975 | 1000 D |
| 3x70+70+16 | 0.443 | 205 | 37.4 | 1038 | 1000 D |
| 3x70+70+2x16 | 0.443 | 205 | 37.4 | 1102 | 1000 D |
| 3x70+2x16 | 0.443 | 205 | 30 | 874 | 1000 D |
| 3x70+70+25 | 0.443 | 205 | 38 | 1071 | 1000 D |
| 3x70+70+2x25 | 0.443 | 205 | 38 | 1168 | 1000 D |
| 3x70+54.6 | 0.443 | 205 | 37.1 | 935 | 1000 D |
| 3x70+54.6+16 | 0.443 | 205 | 37.1 | 998 | 1000 D |
| 3x70+54.6+2x16 | 0.443 | 205 | 37.1 | 1062 | 1000 D |
| 3x70+54.6+25 | 0.443 | 205 | 37.1 | 1031 | 1000 D |
| 3x70+54.6+2x25 | 0.443 | 205 | 37.1 | 1128 | 1000 D |
| 4x70 | 0.443 | 205 | 32 | 981 | 1000 D |
| 4x70+16 | 0.443 | 205 | 32 | 1051 | 1000 D |
| 4x70+25 | 0.443 | 205 | 32 | 1083 | 1000 D |
| 4x70+2x25 | 0.443 | 205 | 32 | 1185 | 1000 D |
| 4x70+35 | 0.443 | 205 | 32 | 1119 | 1000 D |
| 4x70+2x35 | 0.443 | 205 | 32 | 1258 | 1000 D |
| 3x95+2x16 | 0.320 | 250 | 35 | 1138 | 1000 D |
| 3x95+25 | 0.320 | 250 | 42.3 | 1101 | 1000 D |
| 3x95+70 | 0.320 | 250 | 42.3 | 1197 | 1000 D |
| 3x95+70+16 | 0.320 | 250 | 42.3 | 1260 | 1000 D |
| 3x95+70+2x16 | 0.320 | 250 | 42 | 1323 | 1000 D |
| 3x95+54.6 | 0.320 | 250 | 42 | 1157 | 1000 D |
| 3x95+54.6+16 | 0.320 | 250 | 42 | 1220 | 1000 D |
| 3x95+54.6+2x16 | 0.320 | 250 | 37 | 1283 | 1000 D |
| 4x95 | 0.320 | 250 | 37 | 1334 | 1000 D |
| 4x95+16 | 0.320 | 250 | 37 | 1403 | 1000 D |
| 4x95+26 | 0.320 | 250 | 37 | 1435 | 1000 D |
| 4x95+2x25 | 0.320 | 250 | 37 | 1537 | 1000 D |
| 4x95+35 | 0.320 | 250 | 37 | 1471 | 1000 D |
| 4x95+2x35 | 0.320 | 250 | 37 | 1610 | 1000 D |
| 3x120+70 | 0.253 | 280 | 46.7 | 1424 | 1000 D |
| 3x120+70+16 | 0.253 | 280 | 46.7 | 1487 | 1000 D |
| 3x120+70+2x16 | 0.253 | 280 | 46.7 | 1550 | 1000 D |
| 3x120+54.6 | 0.253 | 280 | 46.3 | 1384 | 1000 D |
| 3x120+54.6+16 | 0.253 | 280 | 46.3 | 1447 | 1000 D |
| 3x120+54.6+2x16 | 0.253 | 280 | 46.3 | 1510 | 1000 D |
| 4x120 | 0.253 | 280 | 40 | 1633 | 1000 D |
| 4x120+16 | 0.253 | 280 | 40 | 1703 | 1000 D |
| 4x120+25 | 0.253 | 280 | 40 | 1735 | 1000 D |
| 4x120+2x25 | 0.253 | 280 | 40 | 1834 | 1000 D |
| 4x120+35 | 0.253 | 280 | 40 | 1771 | 1000 D |
| 4x120+2x35 | 0.253 | 280 | 40 | 1907 | 1000 D |
