• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Mvv;Mvv22
• Brand：Feiya
• Transport Package：Rolls or According to Customers′ Request
• Specification：Rated voltage(kV): 0.6-1
• Trademark：Fengda
• Origin：Tianjin, China
• HS Code：8544421900

Basic Info.

Wire Core Material Red Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Mvv;Mvv22 Brand Feiya Transport Package Rolls or According to Customers′ Request Specification Rated voltage(kV): 0.6-1 Trademark Fengda Origin Tianjin, China HS Code 8544421900

Product Description

ApplicationThe cable is used for the connection of moving machinery under extremely high mechanical loads. It is especially suitable for mining environments. It can also be used by guiding pulleys (cable cars) or as reel cables (LHD) to withstand extreme bending forces, high tensile strength and impact. And squeeze the load. standardVDE 0250 Part 813 structureConductor: DIN VDE 0295 standard class 6 soft multi-strand copper conductor.Insulation: EPR.Monitor core (optional): special conductor, tinned copper braid and galvanized steel wire braid.Inner sheath: Model GM1 rubber.Armored/Grounding Conductor: Combination Copper - Wire braiding is both concentric and tensile.Outer Sheath: 5GM5 type chlorinated rubber, abrasion resistant, tear resistant, oil resistant, flame retardant.

Characteristic

1.Supply to USA,Europe,and Austrilia, ect.
2.Cold resistant

3.Extremely strong oil and chemical
4.Flame retardant and self-extinguishing
5.Stable in ultraviolet radiation

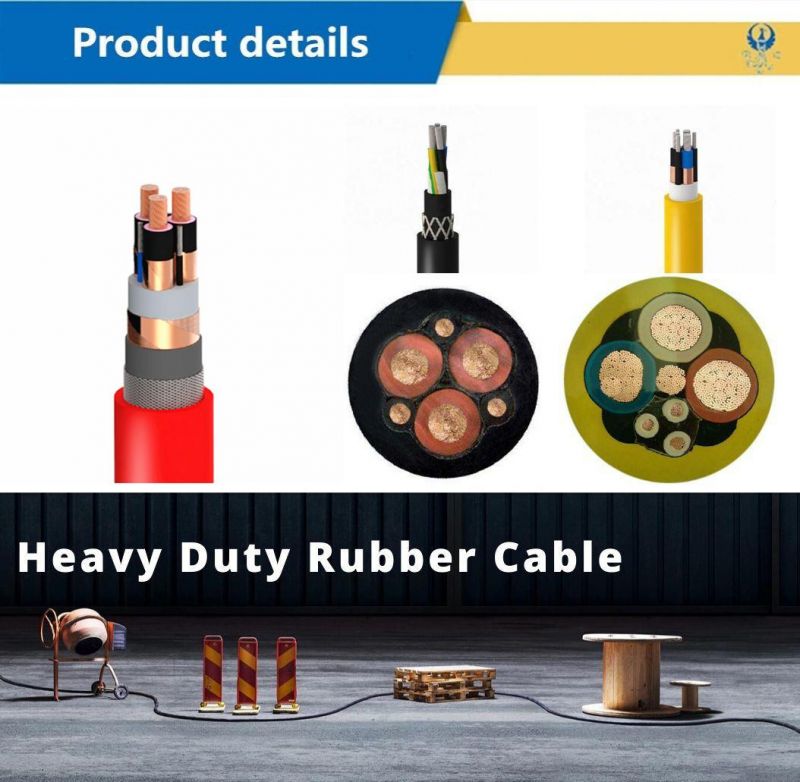

Construction:

Conductor	Copper (Class 5)
Insulation	Rubber compound Type 3GI3
Semi-conductive layers	Semi-conductive tape over the conductor, and inner and outer semi-conductive rubber layer on the insulation
Protective earth conductor	Individual copper screen
Control conductor	Tinned copper (Class 5)
Central filler	Rubber compound on a textile polyester support
First inner sheath	Polyvinyl Chloride (PVC) Type YM5
Monitoring conductor	Copper wire
Second inner sheath	Rubber
Armour	Steel wire braid over the second inner sheath
Outersheath	Rubber

Q1:Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3:Which standards do you comply with when you produce the electrical wires and cables ?

A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).

4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5:How much the Courier freight will be for the samples?

A5:Courier freight depends on the quantity,weight and carton size and your area.
