Covered Line Wire AAC Aluminum Conductor
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Insulation Material：XLPE
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
Base Info
- Model NO.：Covered Line Wire
- Product Name：Covered Line Wire AAC Aluminum Conductor
- Transport Package：Wooden Drum, Wooden Iron Drum, Steel Drum, etc
- Specification：GB, IEC, BS, ASTM, etc.
- Trademark：Yifang
- Origin：China
- HS Code：7614900000
- Production Capacity：200000 Kilometer,Kilometers , Month
Description
Basic Info.
Model NO. Covered Line Wire Product Name Covered Line Wire AAC Aluminum Conductor Transport Package Wooden Drum, Wooden Iron Drum, Steel Drum, etc Specification GB, IEC, BS, ASTM, etc. Trademark Yifang Origin China HS Code 7614900000 Production Capacity 200000 Kilometer/Kilometers / MonthProduct Description
ApplicationsCovered Line Wire is used primarily for overhead secondary distribution lines. It is not an electrically insulated conductor and is treated as bare conductor when installed.
Construction

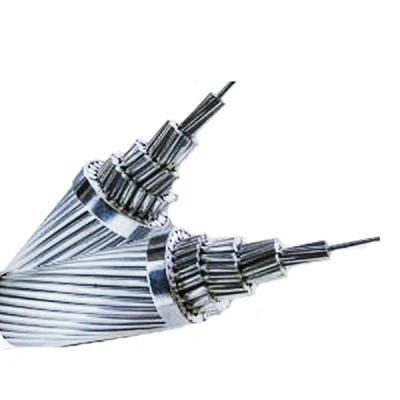

Conductors are aluminum alloy 1350-H19, 6201-181, or ACSR conductors, concentrically stranded and covered for weather proofing with polyethylene, high density polyethylene (HD) or crosslinked polyethylene (XLP).
Standards
- ASTM B-230 - Aluminum 1350-H19 Wire for Electrical Purposes.
- ASTM B-231 - Concentric-Lay-Stranded Aluminum Conductors, Coated-Steel Reinforced (ACSR).
- ASTM B-1248 - Polyethylene Plastics Molding and Extrusion Materials.
- ASTM C-8.35 - Specifications for Weather-Resistant Polethylene-Covered Wire and Cable.
- ICEAS-61-402
- NEMA PUB NO. WC 5-1973 - Standards Publication Thermoplastic insulated Wire and Cable for the Transmission and Distribution of Electrical Energy.

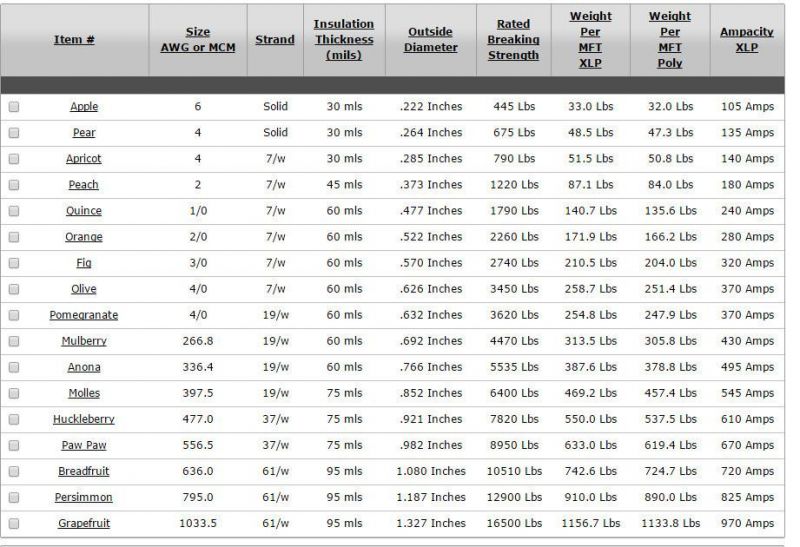

- The code words as given apply to conventional polyethylene line wire.
- For 6201 aluminum conductors diameter equivalent to ACSR construction or 1350 aluminum equivalent.
- Ampacity ratings based on 75 ºC conductor temperature, 25 ºC ambient temperature elevation - sea level. Emissivity 0.91 coefficient of absorption 0.95. Thermal reisitivity of covering -3 ºC-Cm2/Watt-CM. Wind speed 2ft/sec in sun.
- To determine correct ampacity by conductor size, please consult the National Electric Code, latest edition.
