• Model NO.：BVR
• Material Shape：Round Wire
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Yongkuntai
• Product Name：Multi Electric Wire & Cable
• Rated Voltage：300-1000V
• Conductor：Copper or Aluminum
• Jacket：PVC
• Insulation：PVC
• Producing Experience：36years
• No. of Cores：Two Cores or Different Size Cores
• Delivery Time：5-20days
• Service：OEM&ODM Are Available
• Company Type：Manufacturer
• Transport Package：100m,Roll
• Specification：Customized
• Trademark：YONGKUNTAI
• Origin：Shenzhen, China
• HS Code：8544492100
• Production Capacity：500000meters,Week

Basic Info.

Model NO. BVR Material Shape Round Wire Certification ISO9001, CE, CCC, RoHS Brand Yongkuntai Product Name Multi Electric Wire & Cable Rated Voltage 300-1000V Conductor Copper or Aluminum Jacket PVC Insulation PVC Producing Experience 36years No. of Cores Two Cores or Different Size Cores Delivery Time 5-20days Service OEM&ODM Are Available Company Type Manufacturer Transport Package 100m/Roll Specification Customized Trademark YONGKUNTAI Origin Shenzhen, China HS Code 8544492100 Production Capacity 500000meters/Week

Product Description

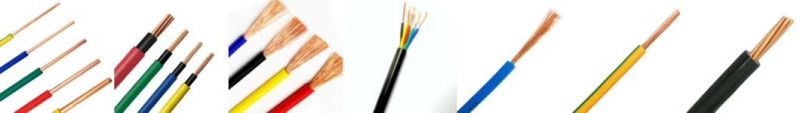

Product Images:

High Temperature Wire & Fire Resistant Cables/ 450/750 BVR Cable use for House or Building



Wire & Fire Resistant Cables Application

BVR wire is a kind of copper core PVC insulated soft wire, which is used in fixed wiring situations requiring softness. This product is suitable for fixed laying of power plant with rated AC voltage below and including 450/750V, such as home lighting. Fixed wiring can be used in indoor open application, conduit and other occasions. In order to facilitate the difference in the installation process, it can be divided into seven colors: red, yellow, blue, green, black, white and both. Because BVR is soft structure, its application scope is mostly in soft environment.

Wire & Fire Resistant Cables Installation

Open air, or in conduits, or trunking.

Wire & Fire Resistant Cables Construction characteristics

Conductor: BVR conductor, stranded wire (featured as

conductor resistance smaller than class5)

Core number: 1 core

Insulation: PVC

Wire & Fire Resistant Cables Electrical characteristics:

Rated voltage 450/750V

Test voltage: 2500 V

Conductor working temperature max. +70°C (under normal conditions)

Operating temperatures: Mounting 0°C - +40°C; Operating -30° - +70°C

Minimum bending radius: > 5 times the cable diameter

Standard: JB/T 8734.2-2016

Packaging: 100m/roll or as request



Remarks: Flame retardant, fire resistance(adopt mica tape), low smoking and Halogen free, or other property are available.

ZR-BVR cable(flame retardant cable) is the kind of cable with PVC insulation built mixed with fire prevention additive to make it have the capability of preventing or retarding flame spread during combustion.

NH-BVR cable(fire resistant cable) is the kind of cable built with a layer of mica tape. Even if the plastic skin is burnt out, refractory layer will help not cause short circuit. When wiring, cut off the refractory layer at the wire head.

LSZH,LSOH,LS0H,LSFH or OHLS BVR cable(Low smoke zero halogen cable)is cable with insulation or outer sheath built using low smoke zero halogen free material to help reduce toxic and corrosive gases produced during combustion.

Termite-proof BVR cable is the cable built with insulation or outer sheath mixed with a kind of materials to prevent termite biting the cable.
We've 36 years experience in manufacturing wire & cable.

All our products have UL,ISO, CCC, CE, ROHS certifications.

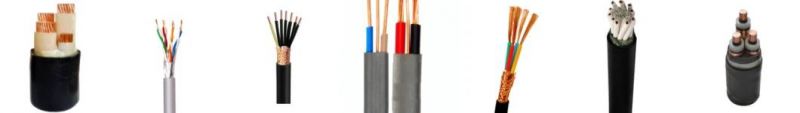

Our Main Products Cover:

1)PVC Insulated Power Cables

2)PVC / PVC Single & Multi-Core Cables

3)PVC / PVC Flexible Wires

4)PVC Insulated Automobile & Battery Cables

5)PVC / STA / PVC Armoured Cables

6)XLPE / PVC Single & Multi-Core Cables

7)XLPE / STA / PVC Armoured Cables

8)XLPE / STA / PVC Single& Multi-Core Armoured Cables

9)Control & Instrumentation Cables

10)Fire-Resistant & Flame Retardant Cables

11)Variable Speed Drives Cables

12)Low Smoke Halogen Free Cables

13)Offshore & Marine Cables

14)OEM & ODM Cables

We've many models didn't show up here, please contact us for further information.

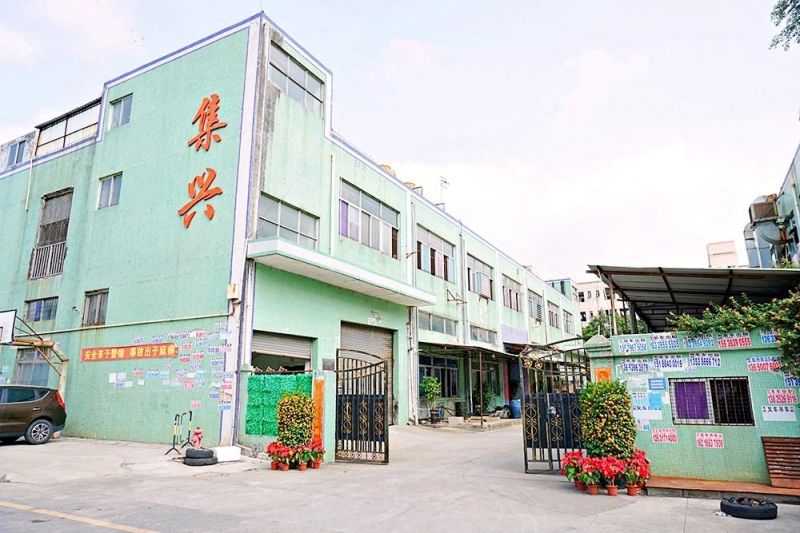

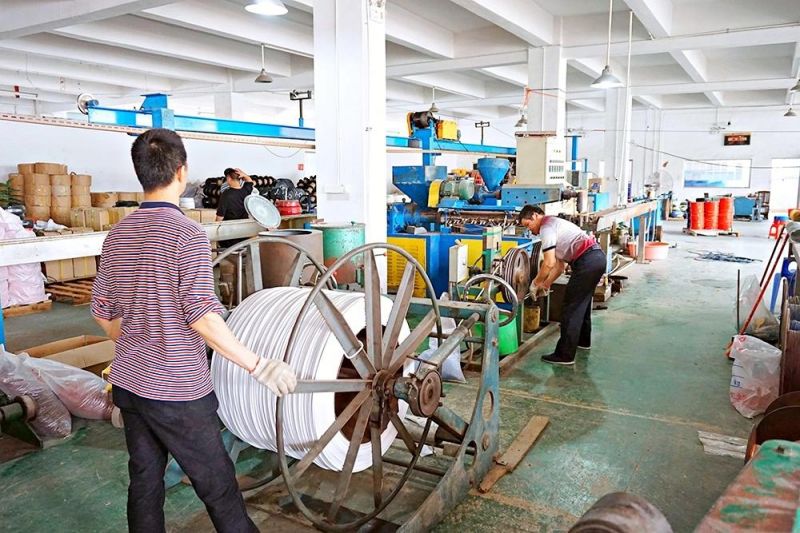

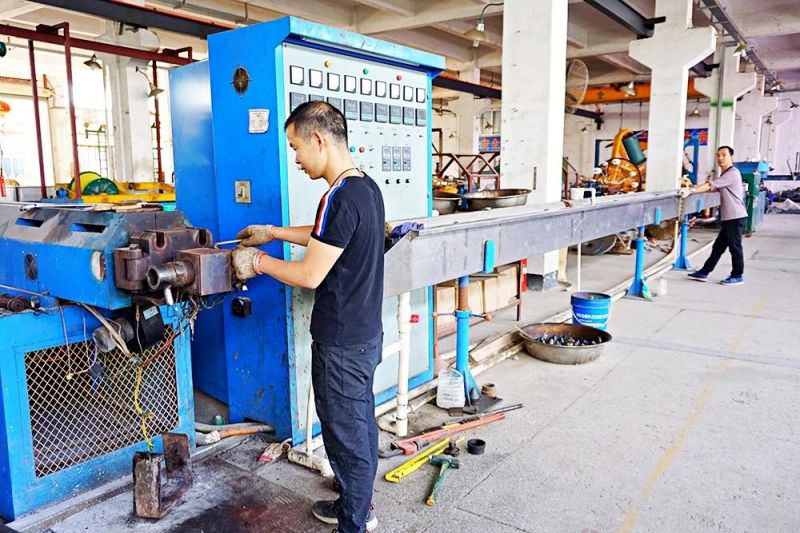

Our Company:

Shenzhen jixing Electric Wire & Cable Co., Ltd., is a medium-sized enterprise specializing in the production of wire and cable, the factory covers an area of 12, 000 square meters, existing staff of 126 people, including engineering and technical personal 11 people, six inspector, technical operation of front-line staff water up to the national average of the technical requirements.
Our products: 0.6/1KV plastic insulation, cross-linked insulated power cable, LSZH cables environmentally friendly, flame retar
dant cables, fire resistant cables, aluminum cable, branch cable, B series( rated voltage 450/750 and bellow) plastic wire and cable, XLPE wires and cables, wires and other environmentally friendly LSOH 28 varieties, more than 6400 specifications, products are sold to foreign markets, the majority of users praise.
Our company has the most advanced testing equipment and production equipment, product quality has reached the national and industry standards, products, professional, high quality.
Since its establishment the company has won IS9001 certification, 3C certification, CE certification, RoHS certification, production licenses, shenzhen, good corporate title of honor, so that enterprises in the fierce market competition foothold.




Certifications:







Our Customers:




Why choose us?

We've specializing in manufacturing electric wire & cable for 36 years.
We're Gold Supplier in Alibaba for 11 years and Diamond Member in Made in China since 2014.
Our product has been exporting overseas since 2000, and our customers are all over the world at this moment!
Our certifications including CE, ISO9001, CCC, RoHS etc..and we can apply other certifications which customers require.
I'm sure we can provide you high-quality product and best after-sales service!
