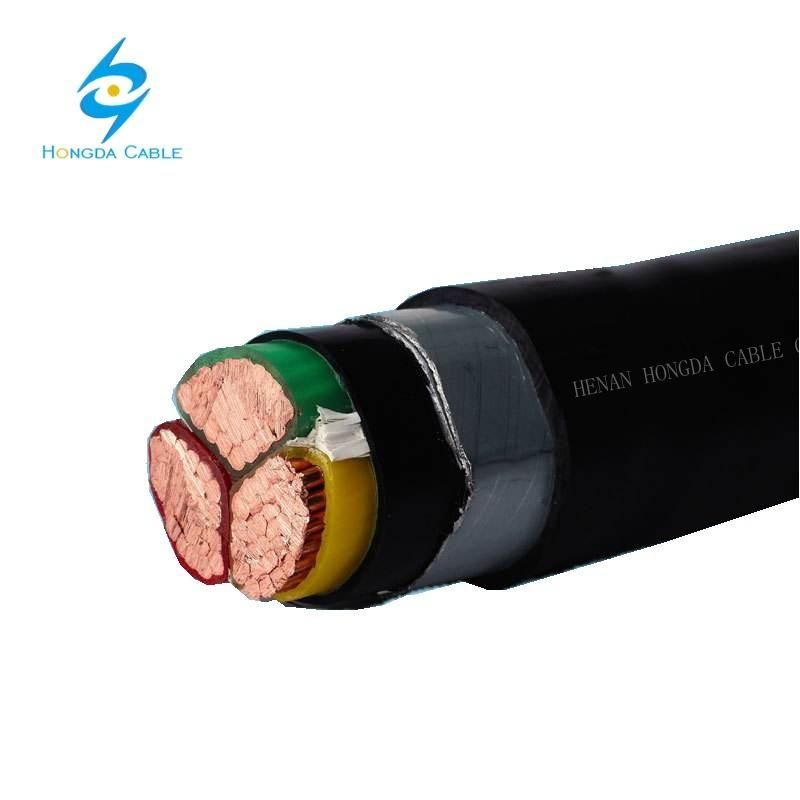

Cooper Cabo U1000 Vav / Rvfv Cu/XLPE/Dsta Xav Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station, Building
- Voltage：Low and Medium Voltage Cable
- Current：DC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：XAV
- Wire Core Material：Red Copper Wire
- Certification：ISO, CCC, CE, SGS
- Model：U-1000 Rvfv, Xav
- Brand：Hongda
- Standard：NF C 32-322, IEC60502-1
- Rated Voltage：0.6,1 Kv
- Transport Package：Drum or as Customer Require
- Specification：1.5mm2 to 400mm2
- Trademark：Hongda
- Origin：China
- HS Code：8544492100
- Production Capacity：20km,Day
Description
Polyvinyl Chloride (PVC)Armor - Two steel straps Outer sheath Fireproof PVC PVC
R2V cable has a temperature rating of -10 ° C to +50° C during installation before extending to -25 ° C to +90° C when fixed. The RVFV has a range from -10 ° C to +60 ° C.
Class 2 twisted conductors are available on request in all cable sizes.
CHARACTERISTICS
Voltage Rating (Uo/U): 600/1000V
Test Voltage: 3.5 kV
Temperature Rating: -10°C to +60°C
Maximum Operating Temperature: +90ºC
Core Identification
2 core: Blue Brown
3 core: Black Brown Grey
3 core including earth: Blue Brown Green/Yellow
Packing & Shipping:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
We are looking forward to your inquiry and nice cooperation.
R2V cable has a temperature rating of -10 ° C to +50° C during installation before extending to -25 ° C to +90° C when fixed. The RVFV has a range from -10 ° C to +60 ° C.
Class 2 twisted conductors are available on request in all cable sizes.
CHARACTERISTICS
Voltage Rating (Uo/U): 600/1000V
Test Voltage: 3.5 kV
Temperature Rating: -10°C to +60°C
Maximum Operating Temperature: +90ºC
Core Identification
2 core: Blue Brown
3 core: Black Brown Grey
3 core including earth: Blue Brown Green/Yellow
CABLE STANDARDS AND APPROVALS
U-1000 R2V / XV / RV cableNF C 32-321, C32-321 / A1, BS EN / IEC 60502-1, BS EN / IEC 60332-1 XLPE, PVC and 0.6 / 1 kV U-1000 RVFV / XAV CableNF C 32-322| AWG | Cross Section | Insulation thickness | Minimum Sheath thickness | Maximum Overall diameter | Approx Cable weight |
|---|---|---|---|---|---|
| mm2 | mm | mm | mm | kg/km | |
| 16 | 1x1.5 | 0.7 | 1.09 | 6.6 | 45 |
| 14 | 1x2.5 | 0.7 | 1.09 | 7 | 55 |
| 12 | 1x4 | 0.7 | 1.09 | 7.6 | 75 |
| 10 | 1x6 | 0.7 | 1.09 | 8.2 | 100 |
| 8 | 1x10 | 0.7 | 1.09 | 9.2 | 140 |
| 6 | 1x16 | 0.7 | 1.09 | 10.5 | 205 |
| 4 | 1x25 | 0.9 | 1.09 | 12.5 | 315 |
| 2 | 1x35 | 0.9 | 1.09 | 13.5 | 400 |
| 1 | 1x50 | 1 | 1.09 | 15 | 530 |
| 2/0 | 1x70 | 1.1 | 1.09 | 17 | 725 |
| 3/0 | 1x95 | 1.1 | 1.18 | 19 | 985 |
| 4/0 | 1x120 | 1.2 | 1.18 | 21 | 1260 |
| 300MCM | 1x150 | 1.4 | 1.26 | 23 | 1520 |
| 500MCM | 1x185 | 1.6 | 1.26 | 25.5 | 1940 |
| 750MCM | 1x240 | 1.7 | 1.35 | 28.5 | 2310 |
| 1x300 | 1.8 | 1.43 | 31 | 3200 | |
| 16 | 2x1.5 | 0.7 | 1.43 | 10.5 | 115 |
| 14 | 2x2.5 | 0.7 | 1.43 | 11.5 | 145 |
| 12 | 2x4 | 0.7 | 1.43 | 13 | 195 |
| 10 | 2x6 | 0.7 | 1.43 | 14 | 265 |
| 8 | 2x10 | 0.7 | 1.43 | 16 | 390 |
| 6 | 2x16 | 0.7 | 1.43 | 18.5 | 560 |
| 4 | 2x25 | 0.9 | 1.43 | 22 | 850 |
| 2 | 2x35 | 0.9 | 1.43 | 24.5 | 1080 |
| 16 | 3x1.5 | 0.7 | 1.43 | 11 | 130 |
| 14 | 3x2.5 | 0.7 | 1.43 | 12.5 | 170 |
| 12 | 3x4 | 0.7 | 1.43 | 13.5 | 230 |
| 10 | 3x6 | 0.7 | 1.43 | 15 | 325 |
| 8 | 3x10 | 0.7 | 1.43 | 17 | 485 |
| 6 | 3x16 | 0.7 | 1.43 | 19.5 | 705 |
| 4 | 3x25 | 0.9 | 1.43 | 23.5 | 1080 |
| 2 | 3x35 | 0.9 | 1.43 | 26 | 1390 |
| 1 | 3x50 | 1 | 1.43 | 29 | 1840 |
| 2/0 | 3x70 | 1.1 | 1.52 | 34 | 2540 |
| 3/0 | 3x95 | 1.1 | 1.6 | 38.5 | 3430 |
| 4/0 | 3x120 | 1.2 | 1.69 | 42.5 | 4440 |
| 300MCM | 3x150 | 1.4 | 1.86 | 47.5 | 5380 |
| 500MCM | 3x185 | 1.6 | 1.94 | 53 | 6920 |
| 750MCM | 3x240 | 1.7 | 2.11 | 59.5 | 8420 |
| - | 3x300 | 1.8 | 2.28 | 66 | 11300 |
| 16 | 4x1.5 | 0.7 | 1.8 | 11.3 | 180 |
| 14 | 4x2.5 | 0.7 | 1.8 | 12.2 | 220 |
| 12 | 4x4 | 0.7 | 1.8 | 13.3 | 300 |
| 10 | 4x6 | 0.7 | 1.8 | 15 | 420 |
| 8 | 4x10 | 0.7 | 1.8 | 17.25 | 630 |
| 6 | 4x16 | 0.7 | 1.8 | 18.8 | 900 |
| 4 | 4x25 | 0.9 | 1.8 | 23 | 1350 |
| 2 | 4x35 | 0.9 | 1.8 | 25.1 | 1750 |
| 1 | 4x50 | 1 | 1.9 | 29.1 | 2350 |
| 2/0 | 4x70 | 1.1 | 2 | 33.9 | 3400 |
| 3/0 | 4x95 | 1.1 | 2.1 | 38.4 | 4500 |
| 4/0 | 4x120 | 1.2 | 2.3 | 42.4 | 5700 |
| 300MCM | 4x150 | 1.4 | 2.4 | 47.2 | 7050 |
| 500MCM | 4x185 | 1.6 | 2.6 | 52.65 | 8700 |
| 750MCM | 4x240 | 1.7 | 2.8 | 59 | 11400 |
| - | 4x300 | 1.8 | 3 | 64.8 | 14200 |
| 1 | 3x50+35 | 1 | 1.8 | 28.8 | 2200 |
| 2/0 | 3x70+50 | 1.1 | 2 | 33.4 | 3100 |
| 3/0 | 3x95+50 | 1.1 | 2.1 | 37 | 3950 |
| 4/0 | 3x120+70 | 1.2 | 2.2 | 41.3 | 5050 |
| 300MCM | 3x150+70 | 1.4 | 2.3 | 45.1 | 6100 |
| 500MCM | 3x185+70 | 1.6 | 2.5 | 50 | 7400 |
| 750MCM | 3x240+95 | 1.7 | 2.7 | 55.8 | 9700 |
| 16 | 5x1.5 | 0.7 | 1.8 | 12.1 | 205 |
| 14 | 5x2.5 | 0.7 | 1.8 | 13.1 | 260 |
| 12 | 5x4 | 0.7 | 1.8 | 14 | 350 |
| 10 | 5x6 | 0.7 | 1.8 | 16.3 | 500 |
| 8 | 5x10 | 0.7 | 1.8 | 18.5 | 760 |
| 6 | 5x16 | 0.7 | 1.8 | 20.6 | 1100 |
| 4 | 5x25 | 0.9 | 1.8 | 25.4 | 1600 |
| 16 | 7x1.5 | 0.7 | 1.8 | 12.3 | 260 |
| 14 | 7x2.5 | 0.7 | 1.8 | 13.2 | 330 |
| 12 | 7x4 | 0.7 | 1.8 | 15.4 | 450 |
| 16 | 8x1.5 | 0.7 | 1.8 | 13.9 | 290 |
| 14 | 8x2.5 | 0.7 | 1.8 | 14.9 | 380 |
| 12 | 8x4 | 0.7 | 1.8 | 16.5 | 520 |
| 16 | 10x1.5 | 0.7 | 1.8 | 15.8 | 350 |
| 14 | 10x2.5 | 0.7 | 1.8 | 17 | 450 |
| 12 | 10x4 | 0.7 | 1.8 | 19 | 630 |
| 16 | 12x1.5 | 0.7 | 1.8 | 15.5 | 390 |
| 14 | 12x2.5 | 0.7 | 1.8 | 16.8 | 510 |
| 12 | 12x4 | 0.7 | 1.8 | 19.6 | 700 |
| 16 | 14x1.5 | 0.7 | 1.8 | 17 | 440 |
| 14 | 14x2.5 | 0.7 | 1.8 | 18.3 | 580 |
| 12 | 14x4 | 0.7 | 1.8 | 20.5 | 800 |
| 16 | 19x1.5 | 0.7 | 1.8 | 17.9 | 550 |
| 14 | 19x2.5 | 0.7 | 1.8 | 19.4 | 740 |
| 12 | 19x4 | 0.7 | 1.8 | 22.6 | 1050 |
| 16 | 24x1.5 | 0.7 | 1.8 | 20.7 | 670 |
| 14 | 24x2.5 | 0.7 | 1.8 | 23.2 | 900 |
| 16 | 30x1.5 | 0.7 | 1.8 | 22.6 | 800 |
| 14 | 30x2.5 | 0.7 | 1.8 | 24.5 | 1100 |
| 16 | 37x1.5 | 0.7 | 1.8 | 23.5 | 950 |
| 14 | 37x2.5 | 0.7 | 1.8 | 26.3 | 1300 |
