Cat 6A Cat7 FTP Cat 5e Cat 6A Cat7 Shield LAN Cable
Hongan Group Corporation Limited- Application：LAN Cable
- Conductor Material：Copper
- Cover Material：PE
- Type：CAT6A
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：cat6a
- Wire Core Material：Bare Copper Wire
- Certification：CE, RoHS, UL
- Model：Hsyyp6
- Brand：Hongan
- Color：Blue
- Wire Gauge：24AWG
- Transport Package：Carton
- Specification：4*2*0.5
- Trademark：Hongan
- Origin：China
- HS Code：8544421100
- Production Capacity：42000km
Description
Transmission Performance Frequency
(MHz) Attenuation (Max)
(dB/100m) NEXT(Min)
(dB/100m) ELFEXT(Min)
(dB/100m) RL
(Min)
(dB) Phase Velocity
(Min)
(m. /s) Phase Delay
(Max)
(ns/100m) 4 3.8 66. 3 56 23 0. 604c 552 8 5. 3 61. 8 49. 9 24.5 0. 610c 547 10 5. 9 60. 3 48 25 0. 612c 545 16 7. 5 57. 2 43.9 25 0. 614c 543 20 8. 4 55. 8 42 25 0. 615c 542 25 9. 4 54.3 40 24.3 0. 616c 541 31. 25 10. 5 52.9 38. 1 23.6 0. 617c 540 62.5 15. 0 48. 4 32.1 21. 5 0. 619c 539 100 19. 1 45. 3 28 20. 1 0. 620c 538 200 27. 6 40. 8 22 18 0. 622c 537 250 31. 1 39. 3 20 17. 3 0. 622c 536 300 34.3 38. 1 18. 5 17. 3 0. 622c 536 400 40. 1 36. 3 16 17. 3 0. 623c 536 500 45. 3 34.8 14 17. 3 0. 623c 536
Operating Temperature:-20ºC~+60ºC

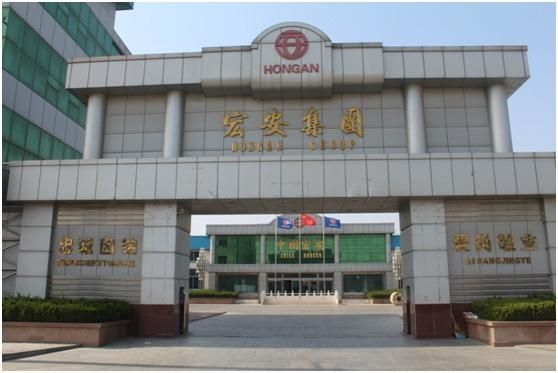

Company introduction:
HONGAN GROUP is located in Shandong China. We Specialized in producing optical fiber cable, network data cable and multi pair telephone cables more than 30 years, also supply EPON , GPON, data center solutions and related equipments.
Our products have passed ISO9001 ,ISO14001 and OHSAS18001, meet the requirements of CE, RoHS, TLC and UL, and have been exported to Thailand, Cambodia ,Burma, Vietnam, Laos, Europe, Africa etc., more than twenty countries.
Advanced production lines:
Our customers
Our certificates:
