• Model NO.：MC4 Connector
• Material Shape：Round Wire
• Range of Application：Solar Power
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Renhotec
• Product：Mc4 Wall Connector
• Contact Material：Copper Tinned Plated
• Gender：Male and Female
• Suitable Cable：2.5,4,6mm Sq
• Wire Length：Custom Length
• Warranty：12 Months
• Lead Time：5-7 Days
• Packing：600pair,Carton
• Carton：13.5kg
• MOQ：500pair
• Transport Package：Shipping Carton or as Required
• Specification：600pair,carton
• Trademark：RENHOTEC
• Origin：Dongguan(China)
• HS Code：8538900000
• Production Capacity：100000 PCS,Month

Basic Info.

Model NO. MC4 Connector Material Shape Round Wire Range of Application Solar Power Certification ISO9001, CE, CCC, RoHS Brand Renhotec Product Mc4 Wall Connector Contact Material Copper Tinned Plated Gender Male and Female Suitable Cable 2.5/4/6mm Sq Wire Length Custom Length Warranty 12 Months Lead Time 5-7 Days Packing 600pair/Carton Carton 13.5kg MOQ 500pair Transport Package Shipping Carton or as Required Specification 600pair/carton Trademark RENHOTEC Origin Dongguan(China) HS Code 8538900000 Production Capacity 100000 PCS/Month

Product Description

Male female MC4 Wall Connector for Solar Energy System

Description:

* Mc4 connector with high temperature, fire, anti-aging and anti-ultraviolet and other properties to meet the outdoor environment under the conditions of

long-term use.
* Excellent sealing performance, waterproof and dustproof grade up to IP68
* Male and female exchange with self-locking function, electrical connection is completely reliable, open and close freely
* Wide range of applicability, can be inserted

MC4 connector
* CE&TUV certification

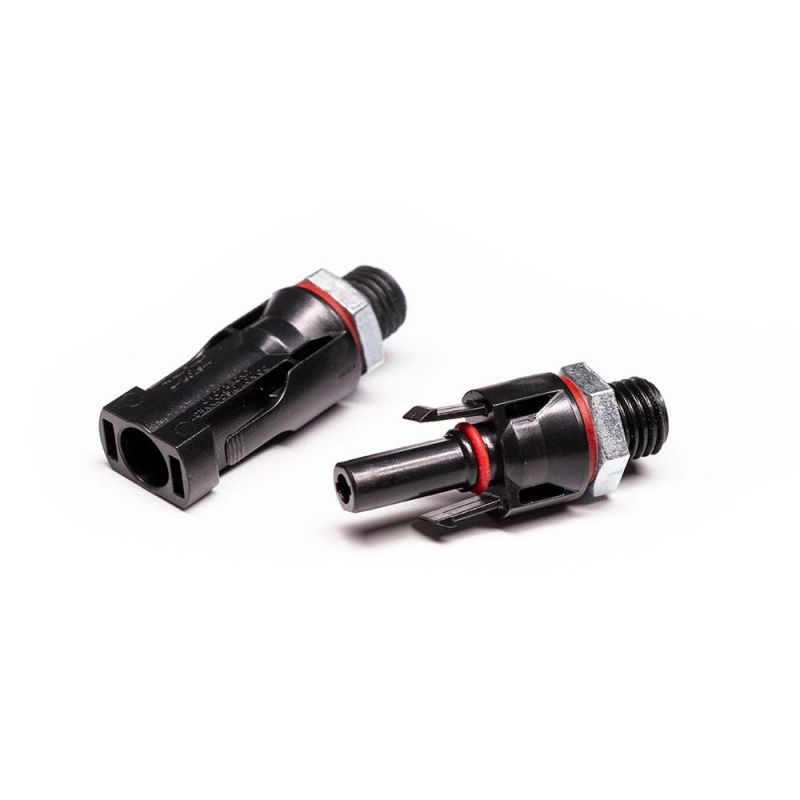

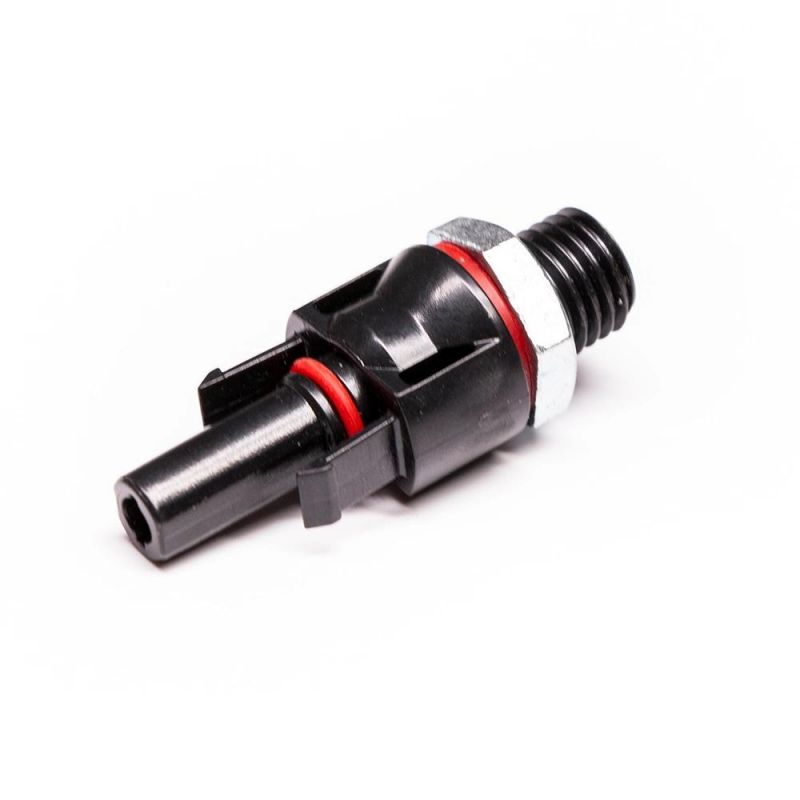

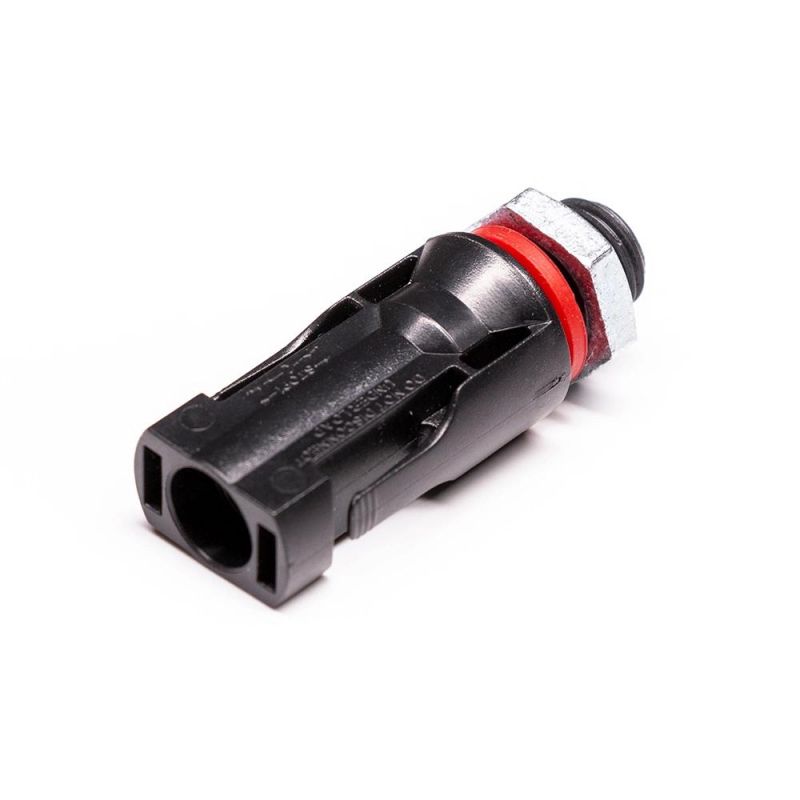

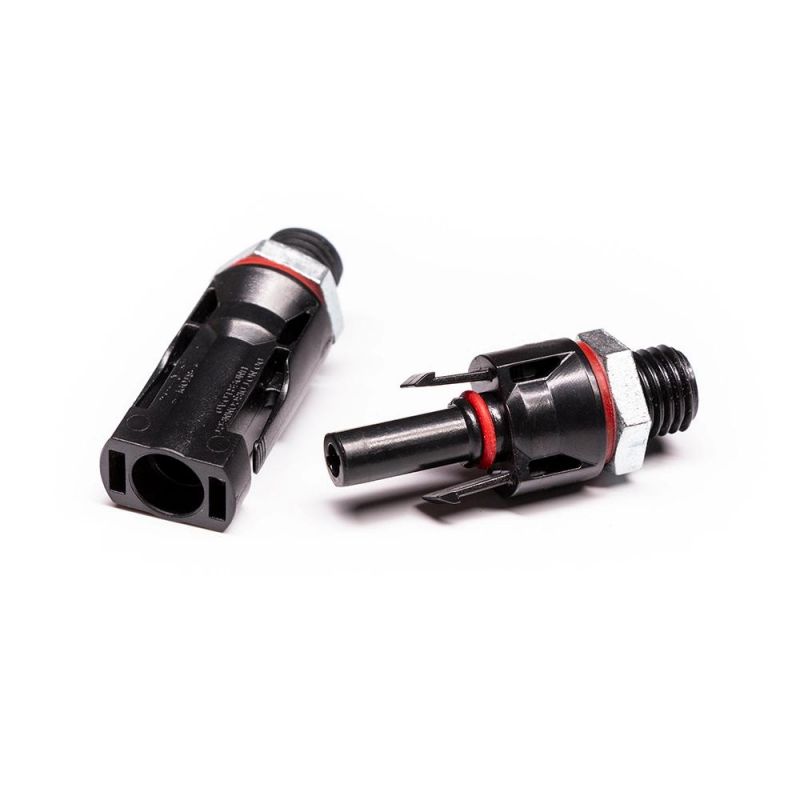

Detailed Image:

Specifications:

Wire size range	2.5mm2/4mm2/6mm2(AWG14/12/10)
Current rating	25A(2.5mm2) , 30A(4mm2,6mm2)
Contact resistance	5Ω (maximum)
Insulation resistance	1, 000MΩ (minimum)
Withstand voltage	6, 000V AC/minute
Operating temperature	-40 to +90° C
Contact material	Copper alloy
Contact plating	Nickel Plated
Insulation material	PPO (UL94V-0)
Protection degree	IP68
Protection class	II
Safety approval	CE,TUV


Company:
Renhotec Group is specialized in electronic connectors, electronic wire Cables and hardware development,if you
couldn't find the exact items you need, please send us your drawings or pictures,the best solution will be offered to you.


Shipping ways:
1). EMS, DHL, UPS, FedEx by air, for big orders we Suggest shipment by sea.
2). Delivery time: Sample order within 3 days; Bulk order within 7 days after receipt of the payment.
3). Evaluate the customs-clearance risk and choose safest shipping company during different period.

After-sale service:
1). One year warranty policy after the shipment.
2). We will replace the defective parts with new parts in the next order.
3). Choose the cheapest and safest shipping company.
4). Track the order until you get the goods.
5).Certificates available: CE, RoHS, FCC

Contact us:
Sales Manager: Tina
