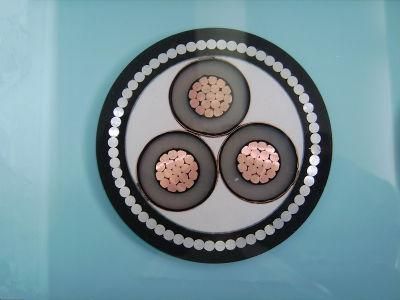

Steel Wire Armoured Power Cable (Al/PVC/STA/PVC) BS 6346
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC
- Model：YJV
- Transport Package：Steel-Wooden Drum Packing
- Specification：90mm2 150mm2 185mm2 240mm2 300mm2
- Origin：China
- HS Code：8544492100
Description
For laying indoors,in tunnel or cable trench,unable to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV
Aluminum conductor,XLPE insulated,PVC sheathed power cable
YJY
Copper conductor, XLPE insulated,PE sheathed power cable
YJLY
Aluminum conductor, XLPE insulated,PE sheathed power cable
YJV22
Copper conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
For laying indoors,in tunnel in cable trench,or direct in ground,able to bear external mechanical forces.Single core cable is not allowed to laid in magnetic duct.
YJLV22
Aluminum conductor,XLPE insulated,steel tape armoured,PVC sheathed power cable
YJV23
Copper conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJLV23
Aluminum conductor,XLPE insulated,steel tape armoured,PE sheathed power cable
YJV32
Copper conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
For laying indoors,in tunnel cable trench,well or direct in ground,able to bear external mechanical forces and certain pulling force.
YJLV32
Aluminum conductor,XLPE insulated,steel wire armoured,PVC sheathed power cable
YJV33
Copper conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
YJLV33
Aluminum conductor,XLPE insulated,steel wire armoured,PE sheathed power cable
Type
No. of cores
Nom. Cross-section of conductor
(mm2)
Copper conductor
Aluminum conductor
YJV YJY
-
1
1.5-800
-
YJLV YJLY
2.5-800
YJV22 YJV23
YJLV22 YJLY23
10-800
YJV YJY
-
2
1.5-300
-
YJLV YJLY
2.5-300
YJV22 YJV23
YJLV22 YJLY23
4.0-300
YJV32 YJV33
YJLV32 YJLY33
10-300
YJV YJY
-
3
1.5-400
-
YJLV YJLY
2.5-400
YJV22 YJV23
YJLV22 YJLY23
4.0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
4
1.5-400
-
YJLV YJLY
2.5-400
YJV22 YJV23
YJLV22 YJLY23
4.0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
3+1
1.5-400
-
YJLV YJLY
4.0-400
YJV22 YJV23
YJLV22 YJLY23
4. 0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
5
1.5-400
-
YJLV YJLY
2.5-400
YJV22 YJV23
YJLV22 YJLY23
4.0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
4+1
1.5-400
-
YJLV YJLY
4.0-400
YJV22 YJV23
YJLV22 YJLY23
4. 0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
YJV YJY
-
3+2
1.5-400
-
YJLV YJLY
4.0-400
YJV22 YJV23
YJLV22 YJLY23
4. 0-400
YJV32 YJV33
YJLV32 YJLY33
10-400
The armoured single core cables are used for D.C. system only. As for A.C. system,non-magnetic armour material should be used, or a magnetic isolation should be applied.
