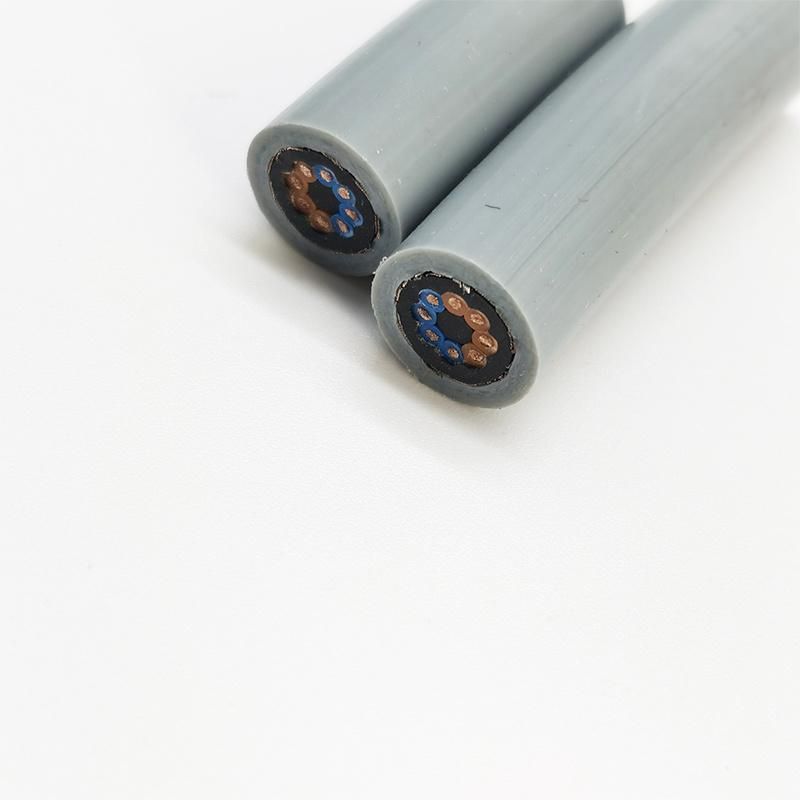

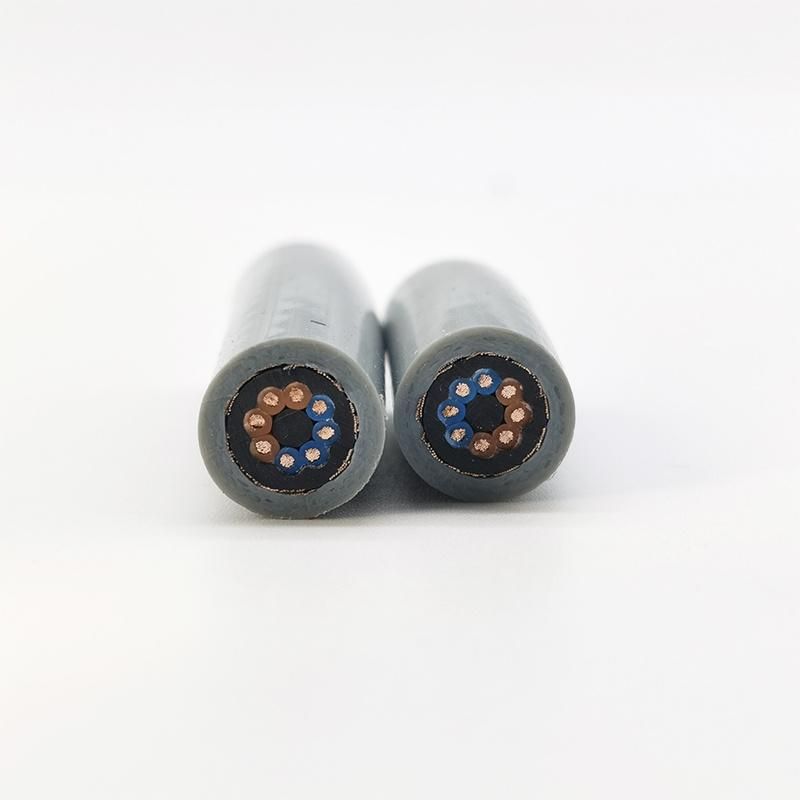

Nhxmh-O/Nhxmh-J Cable 8 Core Silicone-Free 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Installation
  • Conductor Material：Copper
  • Sheath Material：Halogen-Free Special Compound
  • Insulation Material：Cross-Linked Polymer

Base Info

  • Model NO.：NHXMH-O,NHXMH-J Cable
  • Material Shape：Round Wire
  • Range of Application：Installation
  • Certification：ISO9001, CE, UL, RoHS
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemNHXMH Installation CableConductorBare copper strandInsulationCross-linked polymerOuter SheathHalogen-free special compoundNominal VoltageU0/U: 300/500VMinimum bending radiusFixed installation: 4 x dTest voltage2000 VTemperature RangeOccasional flexing: -5°C to +50°C
Fixed installation: -30°C to +70°CColorOptionalCertificationCEApplicationInstallation cable with improved burning behaviour for use in fire vulnerable areas and areas with high concentration of people and property values for fixed laying on-wall and in-wall, in dry, humid and wet rooms, in brickwork and concrete exceptional in cast, vibrated or rammed concrete.
