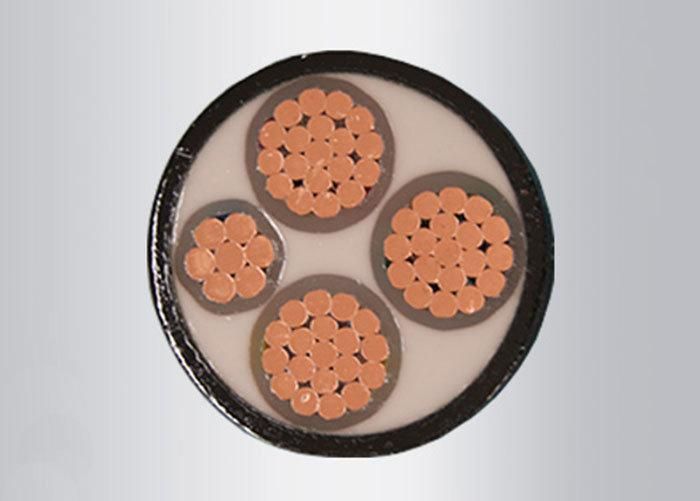

0.6/1kv Low Voltage Power Cable U1000 RO2V 3X150+70mm2 Cu XLPE PVC Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low Voltage Power Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Cable U1000 RO2V 3x150+70mm2
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE
  • Model：YJV
  • Brand：Yifangcable
  • Rated Voltage：600,1000V
  • Size：Cable U1000 RO2V 3X150+70mm2
  • Standard：IEC 60502-1 or NFC
  • Armour：Non Armour
  • Insulation：XLPE
  • Sheath：PVC
  • Transport Package：Wooden Steel Drum
  • Specification：2.0m drum
  • Trademark：Yifangcable
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：600km,Month

Description

TECHNICAL DATA SHEET Câble U1000 RO2V 3x150mm²+70mm²ItemDescriptionUnitData1Standard IEC 60502-12Size 3x150+1x70mm23Rated VoltagekV0.6/14Phase core   Cores 3 Norminal Cross Sectional Areamm2150 Conductor Compact sector stranded copper Standing No.Of Wireno.sMin.15 Max.DC Resistance at 20ºCΩ/km0.124 Insulation XLPE Norminal Thicknessmm1.45Earth core   Cores 1 Norminal Cross Sectional Areamm270 Conductor Compact sector stranded copper Standing No.Of Wireno.sMin.12 Max.DC Resistance at 20ºCΩ/km0.268 Insulation XLPE Norminal Thicknessmm1.16Filler(if any) PP7Wrapping tape Non-woven tape8Outer Sheath PVC Norminal Thicknessmm2.39Overall diametermm41.810Approx.Weightkg/km54200.6/1kv Low Voltage Power Cable U1000 RO2V 3X150+70mm2 Cu XLPE PVC Cable
