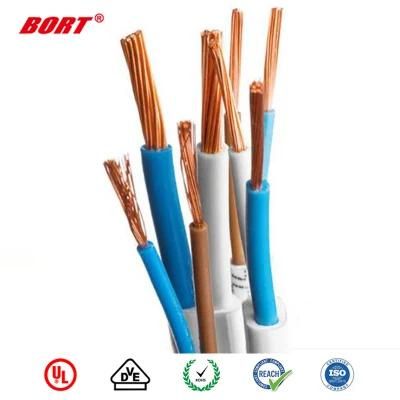

300V PVC Insulated Single Bare Copper UL1007 Hook up Wire

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Insulation Material：PVC
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant

Base Info

  • Model NO.：UL1007-0006
  • Certification：ISO9001, UL, RoHS
  • Rated Temperature：80 ºC
  • Rated Voltage：12-14V
  • According to：UL Subject758, UL1581, C22.2
  • Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
  • Performance：for General Purpose Internal Wiring of Appliance
  • Conductor：Stranded, Tinned or Bare Copper Conductor
  • Capacity：300,000km Annual
  • Color：Could Be Customized Color
  • Delivery Time：7-15days
  • Package：Coil or Spool Packing
  • Transport Package：610feet in Roll
  • Specification：2pin 20 AWG 2 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Rated Temperature  80ºCInsulatedPVC insulationStandardAWGNO.of CondInsulation Thick.Outside Thick.Packingmmmmmmm/rΩ/mm307/0.10.411.10 610354.33 287/0.1270.411.20 610223.75 267/0.160.411.30 610139.76 2411/0.160.411.40 61088.36 2217/0.160.411.60 61060.16 2021/0.1780.411.80 61038.58 1834/0.1780.412.10 61022.98 1626/0.2540.412.40 61015.06 281/0.3200.411.15 610227.39 261/0.4040.411.25 610142.79 241/0.5110.411.35 61089.39 221/0.6430.411.50 61054.30 201/0.8130.411.65 61033.90 181/1.0240.411.85 61021.40
