Feiya Nyfgby 0.6/1 Kv Cu Conductor PVC Insulated PVC Sheathed Galvanized Steel Flat Wire, Galvanized Steel Tape Armoured Electrical Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：NYFGbY,YVZ3V
- Material Shape：Round Wire
- Range of Application：Indoor and Outdoor
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Feiya
- Color：Black Red Yellow, According to Voltage Level
- Whether It Is Environmentally Friendly：Yes
- Whether Quality Inspection：Provide Inspection Certificate
- Standard：Customized According to Specified National Standar
- OEM/ODM：Accepted
- Core：Single Core and Multicore
- Transport Package：Standard Export Packaging
- Specification：International General Specifications
- Trademark：Fengda
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：100000,Day
Description
Class 1 Solid Copper
Class 2 Stranded Copper
PVC (Polyvinyl Chloride)
PVC (Polyvinyl Chloride)
SWA (Galvanised Flat Steel Wire)
Galvanised Steel Tape
PVC (Polyvinyl Chloride)
Special Features on Request:
* Oil Resistance
* Flame Retardant Cat A, B, C
* Flame Retardant Non Category
* Nylon Coated

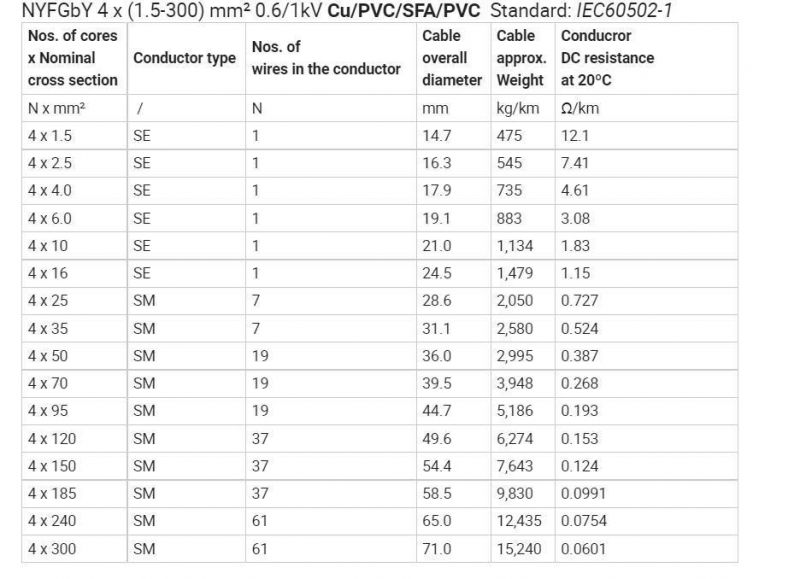

Symbol : NYFGbY or CU/PVC/SFA/PVC
Size Ranged :
5 x 4 ... 50mm²
4 x 6 ... 400mm²
3 x 10 ... 400mm²
2 x 10 ... 300mm²
Other Specification are available on request
Applicable Standard : Rated Voltage : 0.6/1 kV
Specification : SPLN 43-2 : 1994
SNI IEC 60502-1 2009
IEC 60502
