150c FEP High Temperature Heat Resistant Wire 10 to 24 AWG
Wuhan Elite Industry Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Heating
- Conductor Material:Pure Nickel or Copper Alloy
- Sheath Material:, Fiberglass
- Insulation Material:Silicone Rubber
Base Info
- Model NO.:10 To 24 AWG
- Material Shape:Round Wire
- Range of Application:Industrial
- Certification:ISO9001, CE, UL
- Brand:No Brand
- Colour:Black,White,Red,etc
- Package:100,200,305,610m Per Roll
- Conductor:Copper or Pure Nickel
- ISO:Yes
- Lead Time:10-15 Working Days
- Transport Package:in Roll, Spool+Carton
- Specification:AWG 24, 22, 20, 18, 16, 14, 12
- Trademark:no
- Origin:China
- HS Code:8544491900
- Production Capacity:10, 0000 Meters
Description
Size
AWG
Conductor
Construction
(No./mm)
Insulation
Thickness
(mm)
Diameter
(mm)
Max. Conductor Resistance
(20ºC) (Ω/km)
24
11/0.16
≥0.51
1.6±0.2
94.2
22
17/0.16
1.8±0.2
59.4
20
26/0.16
2.0±0.2
37.4
18
16/0.254
2.2±0.2
23.5
16
26/0.254
2.5±0.2
14.6
14
41/0.254
2.9±0.2
8.96
12
65/0.254
3.4±0.2
5.64
10
7/15/0.254
4.5±0.2
3.54
2. Application
Used for home appliance,lighting lamps,small motors, temperature sensors, electromagnetic coils, automotive interior cables, electronic appliance etc.
3. Advantages
- Has excellent corrosion resistance, almost insoluble in any organic solvent, oil, acid, anti-alkali, strong oxidant, etc.
- Has excellent electrical insulation properties, resistance to high voltage, high-frequency loss, does not absorb moisture, insulation resistance.
- has excellent heat resistance, aging resistance, long service life.

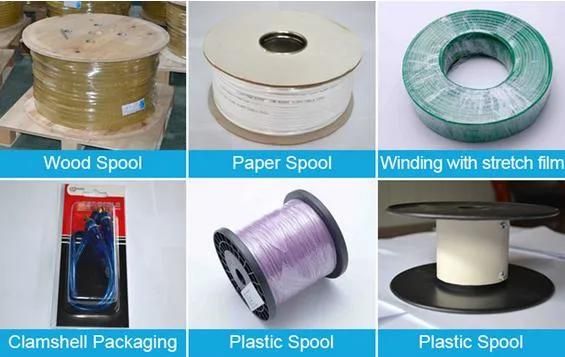

4. Packing Methods

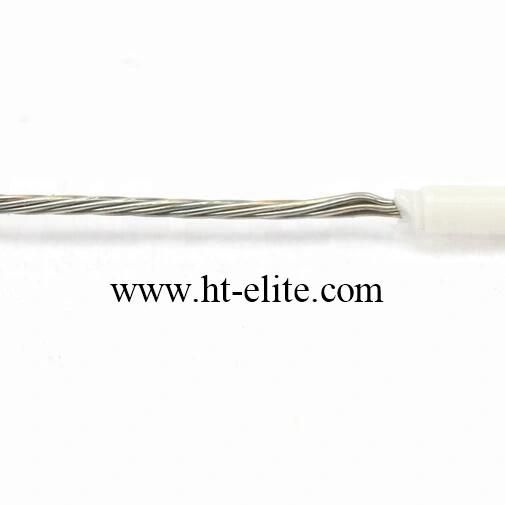

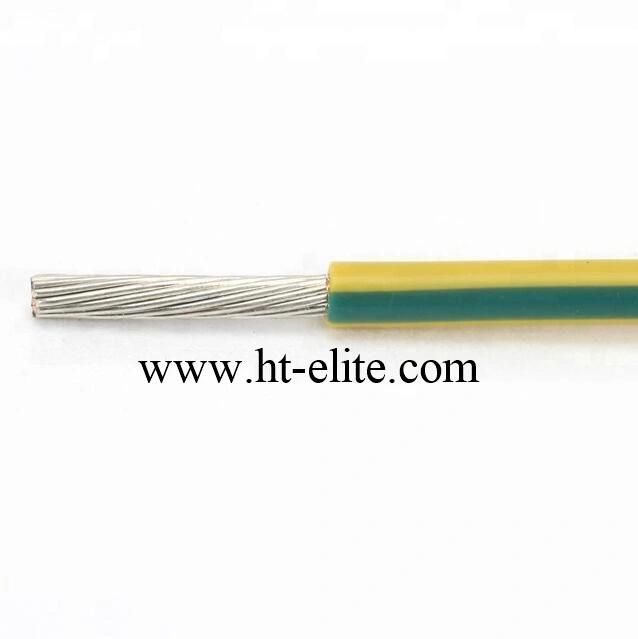

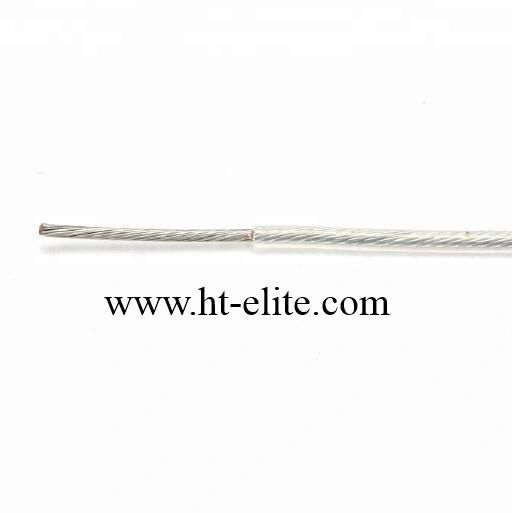

5. Photos for Reference
