• Insulation Material：Rubber
• Sheath Material：Rubber
• Wire Core Material：Rubber
• Brand：Fengda
• Model No.：Yc Yh Yf Yhf
• Number of Cores：1,2,3,4,5,3+1,3+2,Ect
• Sectional Area：10mm2-185mm2
• Armour：Steel Tape
• Materials Shape：Flat Wire
• Cable Type：Flat or Round
• Conductor Standard：IEC 60228
• Armor：Galvanized Steel Wire Braid
• Cabling：Insulated Conductors Shall Be Cabled
• OEM&ODM：Yes
• Applications：Lsoh
• Rated Voltage：100-700V
• Certificates：ISO14001 9001, CCC, Ce, UL
• Diameter：0.2-100mm
• Fire Resistant：Mica Tape on Request
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：IEC
• Trademark：Fengda
• Origin：Tianjin, China
• HS Code：8544421900
• Package size per unit product：200.00cm * 200.00cm * 200.00cm
• Gross weight per unit product：500.000kg

AWG No.Cross-section (Approximation) mm2Conductor
No./diameter mmInsulation
Thickness
mmSheath Thickness mmOverall
Dimensions
mm×mmReference weight kg/km13×42.41/7.351.9116×45354423×33.61/6.541.9115×43311643×21.11/5.191.9114×38244253×16.81/4.621.9113×36221163×13.31/4.121.9112×34198973×10.61/3.601.9111×321767



6KV Type

AWG No.Cross-section (Approximation) mm2Conductor
No./diameter mmInsulation
Thickness
mmSheath Thickness mmOverall
Dimensions
mm×mmReference weight kg/km13×42.41/7.352.3116×47385023×33.61/6.542.3115×45332043×21.11/5.192.3114×40273053×16.81/4.622.3113×38241063×13.31/4.122.3112×36210073×10.61/3.602.3111×341790

AWG sizes are approximate equivalent values. The actual cross-section is in mm².

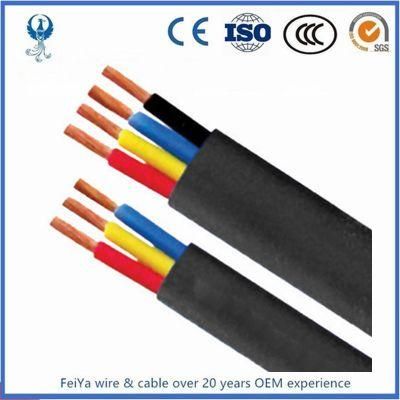

Submersible oil pump power cable is used for submersible oil motor power supply. inculde round and flat, also could be buildup by all the power cable types together with different stainless steel pipe/tube  sizes.
