Cat5e 24AWG/4pair 350MHz F/UTP Shielded Directburial Gell Filled
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable, Network Cable Ethernet Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,PE,LSZH
- Type：Cat 5
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, ETL,CPR
- Model：FTP Cat5e LAN Cable
- Brand：Risun or OEM
- Insulation：HDPE
- UV：Available
- Frame Returdant：Available
- Shield：Polyester Tape,Al Foil
- Transport Package：305m,Pull Box, 2box,Carton
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
Basic Info.
Wire Core Material Bare Copper Wire Certification CE, ISO, RoHS, CCC, ETL,CPR Model FTP Cat5e LAN Cable Brand Risun or OEM Insulation HDPE UV Available Frame Returdant Available Shield Polyester Tape/Al Foil Transport Package 305m/Pull Box, 2box/Carton Origin Hangzhou, Zhejiang, China HS Code 8544491100 Production Capacity 20000 Boxes / MonthProduct Description

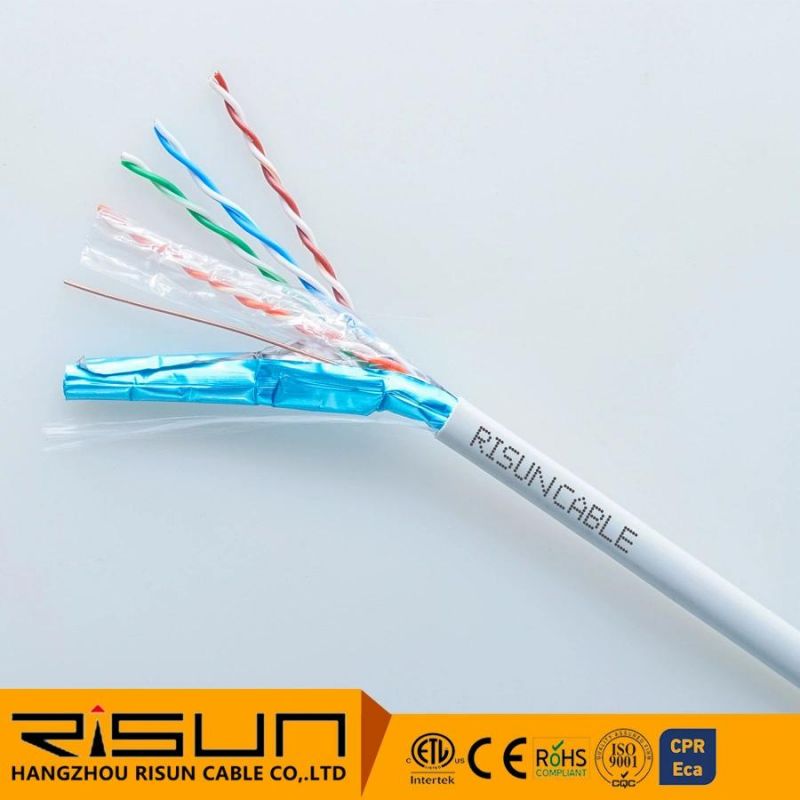

wholesale shielded twisted pair FTP cat5e Lan Cable
construction:
| conductor | 24awg (solid or strand) cu/cca/ccs |
| insulation | HDPE 0.95±0.02mm |
| Drain Wire | 26 Awg TC |
| Shield | Polyester Tape/Al Foil |
| sheath | 6.2±0.1mm pvc (fr,rohs,uv)/ lsoh / pe |
| cores/pairs | 8/4 |
mechanical properties:
| elongation | min. 300% |
| temperature range | -20 up to +75° c |
| tensile strength | min 1.68kg/mm² |
electrical properties:
| resistance | max. 9.38 ohm/100m |
| resistance unbalance | max. 2% |
| insulation resistance | 150 ohm/km |
| mutual capacitance | max. 5600pf/100m |
| capacitance unbalance | max. 330pf/100m |
| impedance | 100+/-15 ohm |
| spark test | 2000v |
| velocity of propagation | 67% |

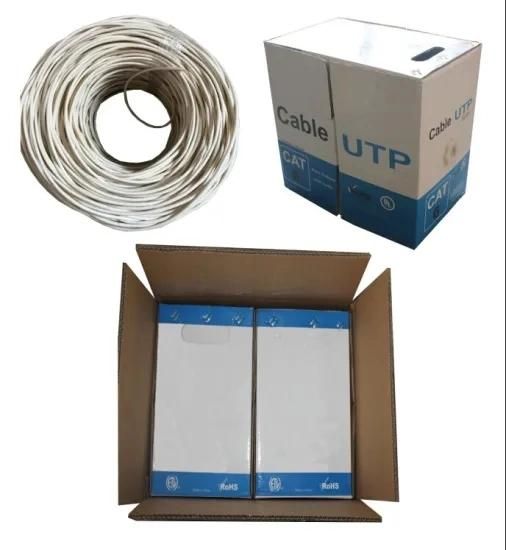

Packing
1) packing lengths: 305m/roll, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.
5) any question, please contact us without hesitation. we'll reply as soon as we can.
Company Profile
risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china.95% of our goods for the export market. 13 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.In the past 13 years, we have already get ETL,CE,ROHS, ISO9001,CPR certification.
workshop:
Welcome to RISUN,we will be happy to serve you!
