Cigarette Lighter Outlet 3FT + Eyelet Terminal Plug Power Supply Cord

Dongguan Maiyu Electronics Co., Ltd.

Type：Insulated
Conductor Type：Stranded
Application：Overhead, Heating, Underground
Conductor Material：Copper
Sheath Material：PC
Insulation Material：PE

Base Info

Model NO.：YJ-DC-35
Material Shape：Round Wire
Range of Application：LSOH
Certification：ISO9001, CE, UL, CCC, RoHS, VDE
Brand：Maiyu
Transport Package：Batch Packaging
Specification：3.2 ounces
Trademark：Maiyu
Origin：China
HS Code：8511309000
Production Capacity：50kkpcs,Month

Description

Basic Info.

Model NO. YJ-DC-35 Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Maiyu Transport Package Batch Packaging Specification 3.2 ounces Trademark Maiyu Origin China HS Code 8511309000 Production Capacity 50kkpcs/Month

Product Description

cigarette Lighter Outlet 3Ft + Eyelet Terminal Plug Power Supply Cord 12V 16AWG Heavy Duty Cable Accessory 15A Fused DC Power 12 24 Volt Socket for Car Tire Inflator Air Pump

Heavy Duty: Real UL Certified Wire SPT-2 16 awg Cigerate Extension Cord,100% 1.31mm2 3 feet long extention copper wire(Please See Comparasion with other 16awg product in Picture 2)
Premium Quality:Accurate Size Sockets with Tight Connection | 4000 Times Bending Performance | SPT-2 Cords Best Insulation and Melting resistant | Bakelite Plugs end High Compression Resist (See picture 2,3,4)
Safety: Built in 15 Amp Fuse (6x30mm) to Provide Overcurrent Protection Replacement For Your Auto, For 12 volt 12volt vdc Cigerate Lighter to Inverter with Ring Eyelets(See picture 2).
Detail: Female Plug to 6.3mm Eyelet Ring Aperture | Cord Length: 6 ft / 0.9 m.

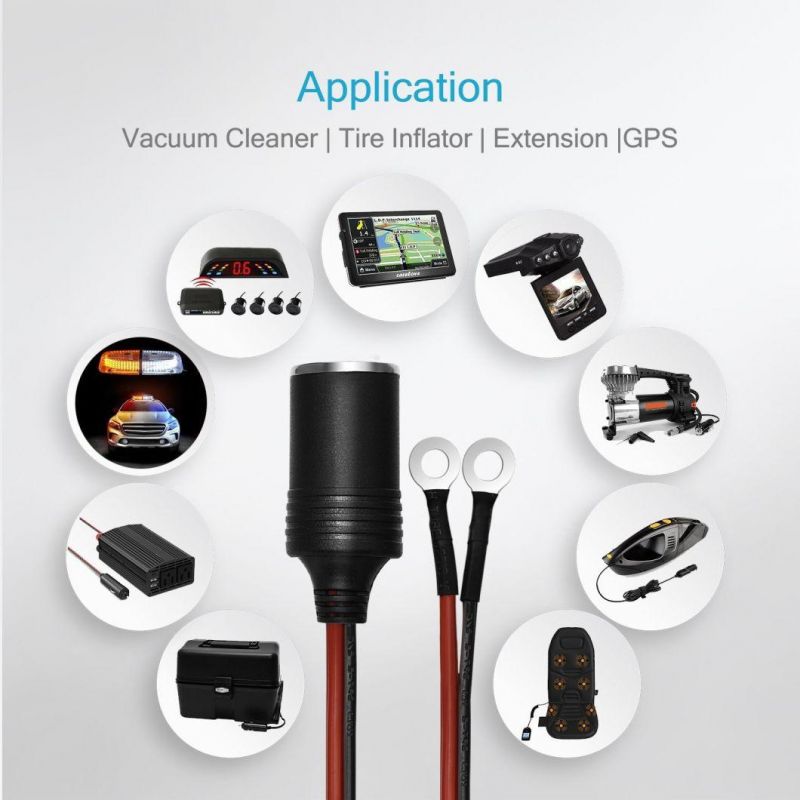

Application: Eyelet Terminal Used for 5mm or 6mm inverter studs | Battery Charger | Air Pump Tire Inflator Power supply | Travelling & Camping | ATV RV Receptacle | 16 gauge

Product Description

We Specialized in the research, development and production of high quality products.Strive to provide best product in market.

Fused Product:

Mini 15A ATC Fuse

UL Certified Wire
Manufactured under ISO certified management systems
QA/QC procedures implemented
Package

Lighter Female Eyelet Ring

Parameters:

Fuse: 15 Ampere(Mini ATC)
Length: 3 Feet
Gauge: 16 AWG
Conductors: 2 100% Copper Wire(NO SILICONE)
Jacket: SPT-2
Jacket Material: PVC

UL Certified Wire
2/C 100% 1.31mm² Copper Wire
SPT-2 Jacket up to 105ºC

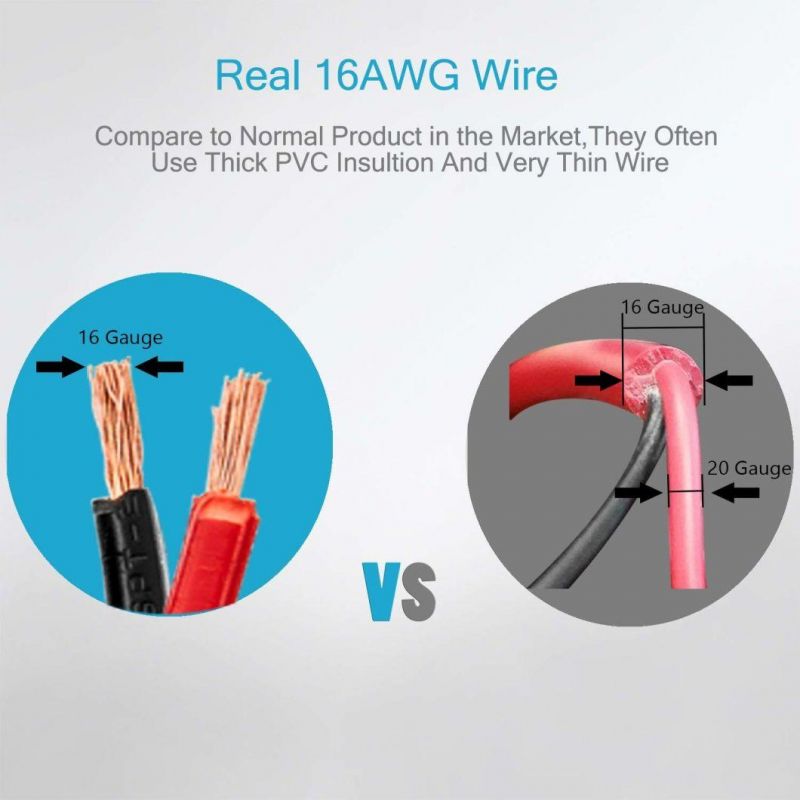

Real 16AWG Wire

Compare to other "16awg" product, We measure wire gauge for inner copper wire not PVC jacket.

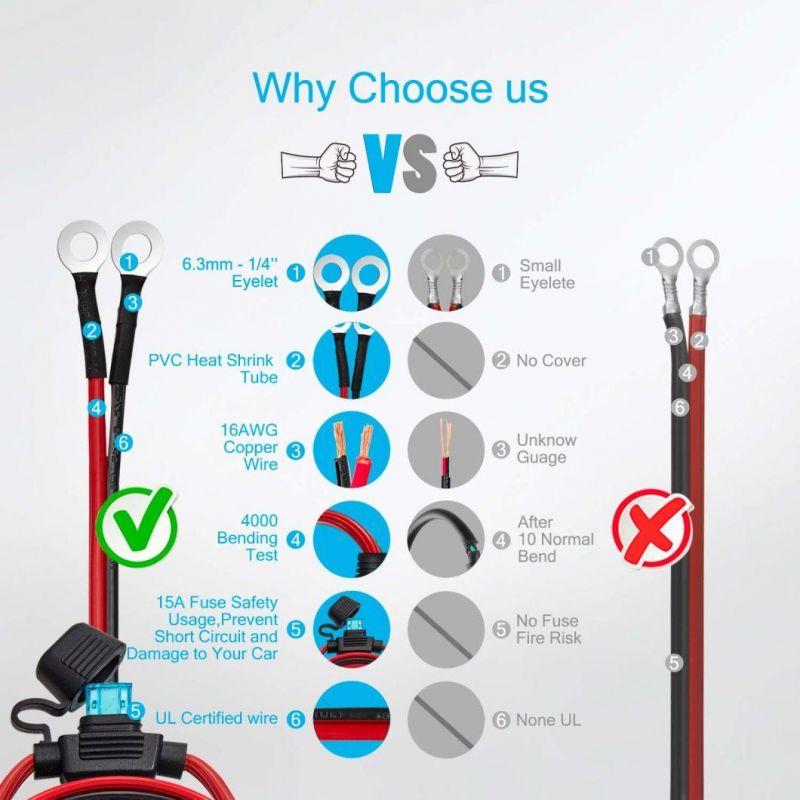

Why Choose Us

6.3mm Eyelet
PVC Heat Shrink Tube
100% Copper Wire
4000 Bending Test
15A Standard Fuse

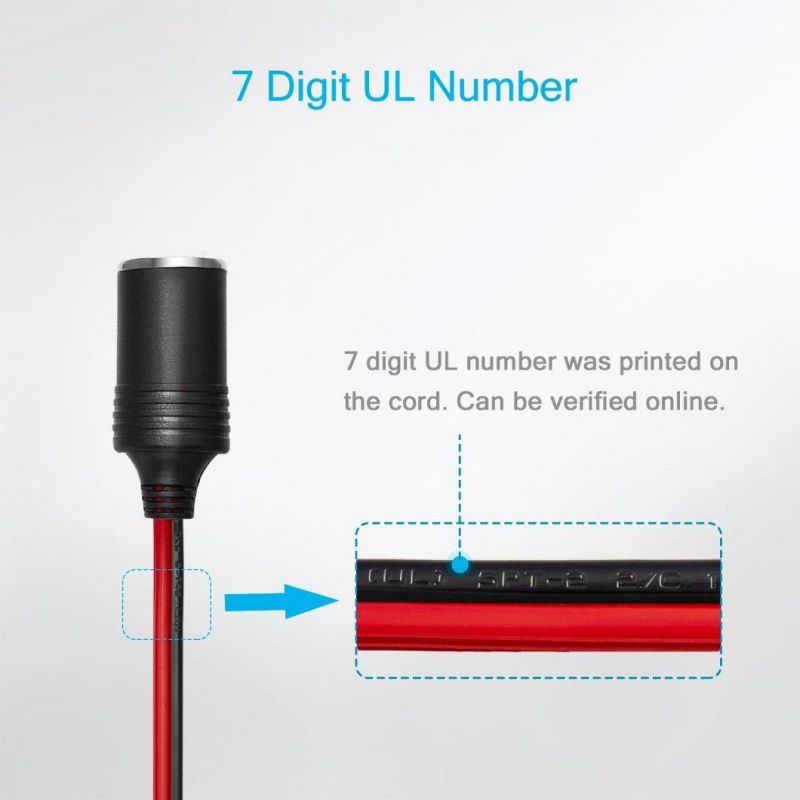

UL Certified Wire

12V Female Plug Sockets with 6.3 mm( Used for 5mm or 6mm inverter studs) Eyelets Terminals.

For 12V inverter,Turn any 12V battery into an auxilary 12V port. Mount to the battery terminals to add a 12V port to vehicles like motorcycles and ATVs.The electrical equipment actual power should be less than 120W .For 24V inverter, if the electrical equipment actual power should be under 240W.

Suitable for 500W,1000W,1500W inverter.

Please Note:

The fuse of this product is 15A.

16Awg SPT-2 Wire Can handle up to 10A with no heat.

The size of the hole in the ring terminal: 0.25 inch / 1/4"

Wire Length: 3FT

Wire Size: 16AWG
