• Model NO.：Feeder Cable
• Wire Core Material：Helical Corrugated Copper Tube
• Certification：CE, ISO, RoHS
• Model：FC
• Brand：Topnet
• Size：17.3mm, 42.5mm, 46.5mm, 49.5mm
• Transport Package：Standard
• Specification：49.5mm
• Trademark：OEM
• Origin：China
• HS Code：8544700000
• Production Capacity：10000,Month

Inner ConductorHelical corrugated copper tubeΦ 17.3±0.15 mmDielectricFoamed PEΦ 42.5±0.25 mmOuter ConductorCorrugated copper tubeΦ 46.5±0.30 mmJacketingBlack, halogen-free fire-retardant thermoplasticΦ 49.5±0.30 mmSpecifications - Electrical Characteristics at +20°C50 ± 1 ΩReturn LossTypical: 24 dB(1.13) for 100 m cable with connectorAttenuationSee table belowCapacitance76.0 pF/mCut-off Frequency3000 MHzMax Power RatingSee table belowPeak RF Voltage Rating5.6 kVPeak Power Rating310.0 kWDC resistanceInner conductor: 0.91 Ω/km, Outer conductor: 0.52 Ω/kmMaximum Pulling Force3000 NMinimum Bending RadiusSingle Bending: 250mm, Repeated Bending: 510 mmOperating Temperature Range-55 ~ +85 °C * Attenuation values are typical at ambient temperature +20°C. Power rating ambient temperature +40°C, inner conductor +100°C.

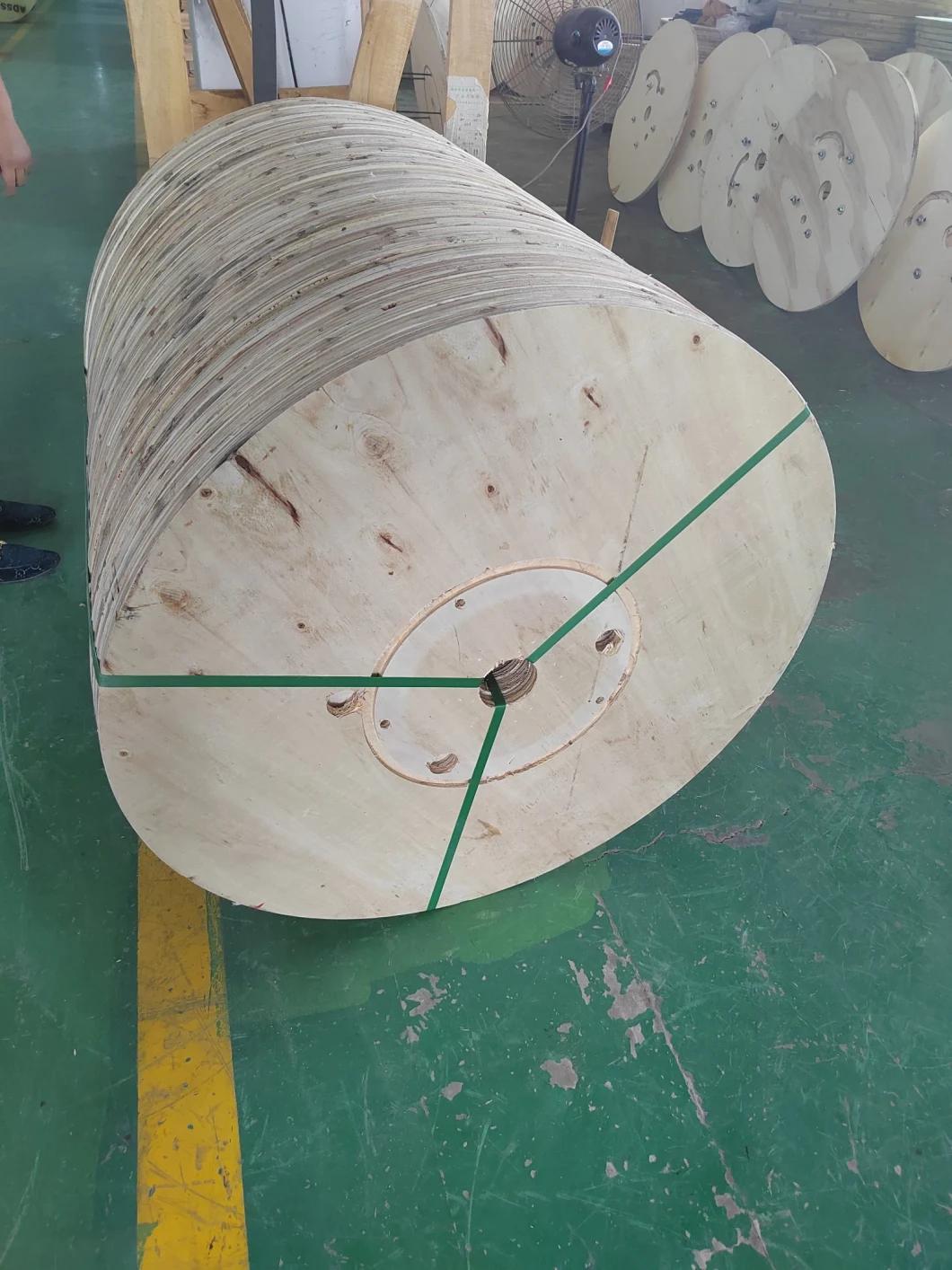

Package
