• Model NO.：ZY-841
• Material Shape：Round Wire
• Range of Application：Underground
• Certification：ISO9001
• Brand：Glory
• Diameter：0.48mm
• Thickness of Insulator：0.38mm
• Over Diameter：1.25mm
• Place of Origin：Zhejiang, China (Mainland)
• Model Number：Zy-840
• Delivery Detail：15days
• OEM：Yes
• Transport Package：10 Coils in a Box
• Specification：CE
• Origin：China
• Production Capacity：500000,Week

Basic Info.

Model NO. ZY-841 Material Shape Round Wire Range of Application Underground Certification ISO9001 Brand Glory Diameter 0.48mm Thickness of Insulator 0.38mm Over Diameter 1.25mm Place of Origin Zhejiang, China (Mainland) Model Number Zy-840 Delivery Detail 15days OEM Yes Transport Package 10 Coils in a Box Specification CE Origin China Production Capacity 500000/Week

Product Description

Nominal voltage: 600V
Temeprature range: -60 ~ +200 celsius
Testing voltage: 2000V
Conductor: Bare copper or tinned copper
Insulation: Silicone rubber

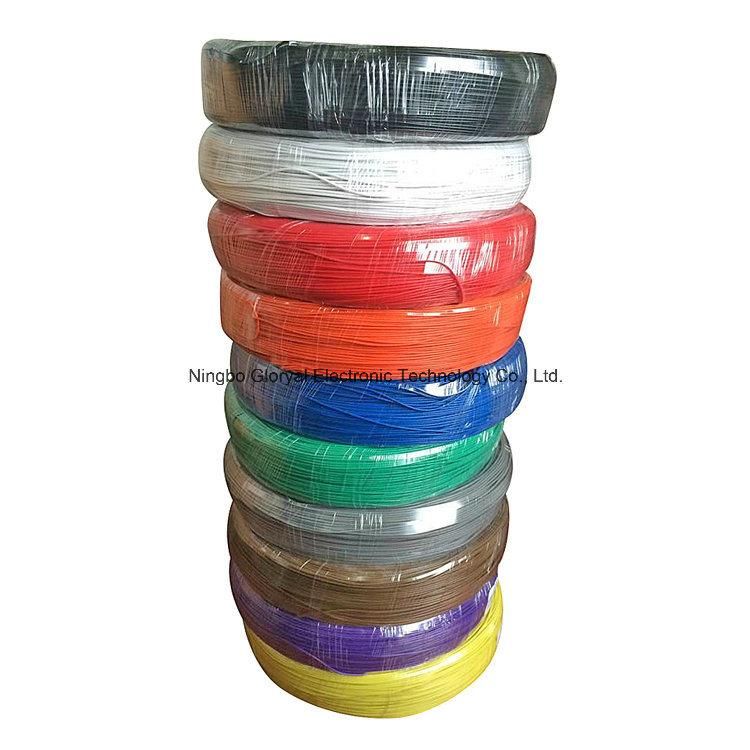

Colors: White-blue-red-black-brown-yellow-green-transparent-yellow/green

Characteristics:

As a composite material,the copper-coated steel wire has the combined advantages of both copper-wire and steel wire,namely the conductivity of copper wire and the strength of steel wire. Moreover,it has 3 to 4 times the strength of pure copper wire and 3 to 5 times the conductivity of steel wire. It is being widely used as a new generation communication lines and power transission cables.

Advantages:

l  Anti-corrosion. As the copper-coated steel wire has a steel core with a uniform copper coating,it is highly resistant to corrosion in air. If the wire is of large diameter and is used as aerial line,bare wire can be used without PVC covered.
l  Small signal transmission decay. There is skin effect in the transmission of highfrequency communication signal. The electric signal is transmission signal. The electric signal is transmitted in the outer copper layer. The transmission decay of copper-coated steel wire is as small as pure copper wire. 50%to70% copper can be saved using copper-coated steel wire instead of pure copper wire.
l  High strength and low density. Since the steel core can enhance the strength of copper-coated steel wire,and the density of steel is lower than that of copper,the size of suspension steel wire can be reduced by using copper-coated steel wire as aerial line.

Application:

UTP cable(Unshielded Twisted Pair Cable)
CATV cable
Hookup communication wires
Indoor Telephone Line
The output lead wires & connecting lines of electronic devices
The power transmission cable for electric railway
Railway connection lines
Military field cables
Special electronic devices
