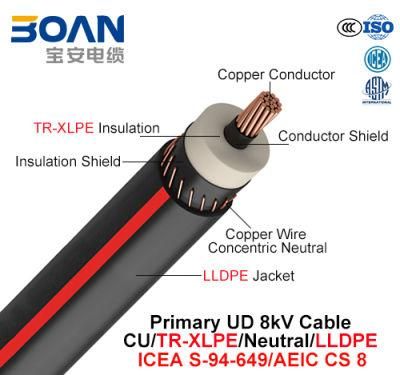

- Model NO.:Primary UD Cable
- Wire Core Material:Bare Copper Wire
- Certification:ISO, CCC
- Model:Primary Ud Cable
- Brand:Boan
- Rated Voltage:35 Kv
- Class of Conductor:B
- Size Range:1,0-1000 AWG or Kcmil
- Insulation Level:100% or 133%
- Neutral Level:1,3 or Full
- Neutral Type:Copper Wire
- Size of Neutral:14,12,10,9 AWG
- Transport Package:Heated Steel-Wooden Drum,Steel Drum
- Specification:SGS
- Trademark:DingAn or OEM
- Origin:Jiangsu Yixing, China
- HS Code:8544601200
- Production Capacity:12000 Km,Year
Size AWG or kcmil | Number of Strands | Nominal OD Over Insulation in | 1/3 Neutral | Full Neutral |
Number of Wires | Size AWG | Jacket Thickness mil | Approximate Outside Diameter in | Approximate Net Weight lb/kft | Number of Wires | Size AWG | Jacket Thickness mil | Approximate Outside Diameter in | Approximate Net Weight lb/kft |
Copper 100% Insulation Level (345 mil) |
1/0 | 19 | 1.10 | 9 | 14 | 80 | 1.50 | 1114 | 16 | 12 | 80 | 1.53 | 1397 |
2/0 | 19 | 1.15 | 11 | 14 | 80 | 1.54 | 1258 | 13 | 10 | 80 | 1.62 | 1652 |
3/0 | 19 | 1.20 | 14 | 14 | 80 | 1.59 | 1442 | 16 | 10 | 80 | 1.67 | 1896 |
4/0 | 19 | 1.25 | 18 | 14 | 80 | 1.65 | 1673 | 16 | 9 | 110 | 1.81 | 2305 |
250 | 37 | 1.31 | 13 | 12 | 110 | 1.80 | 1981 | 25 | 10 | 110 | 1.84 | 2596 |
350 | 37 | 1.41 | 18 | 12 | 110 | 1.90 | 2477 | 22 | 8 | 110 | 2.00 | 3371 |
500 | 37 | 1.54 | 17 | 10 | 110 | 2.10 | 3294 | 31 | 8 | 110 | 2.16 | 4448 |
750 | 61 | 1.73 | 20 | 9 | 110 | 2.32 | 4504 | - | - | - | - | - |
1000 | 61 | 1.88 | 26 | 9 | 110 | 2.47 | 5654 | - | - | - | - | - |
Copper 133% Insulation Level (420 mil) |
1/0 | 19 | 1.25 | 9 | 14 | 80 | 1.65 | 1264 | 16 | 12 | 80 | 1.68 | 1489 |
2/0 | 19 | 1.3 | 11 | 14 | 110 | 1.76 | 1517 | 13 | 10 | 110 | 1.83 | 1827 |
3/0 | 19 | 1.35 | 14 | 14 | 110 | 1.81 | 1709 | 16 | 10 | 110 | 1.88 | 2080 |
4/0 | 19 | 1.4 | 18 | 14 | 110 | 1.86 | 1948 | 16 | 9 | 110 | 1.96 | 2412 |
250 | 37 | 1.46 | 13 | 12 | 110 | 1.95 | 2160 | 25 | 10 | 110 | 1.99 | 2738 |
350 | 37 | 1.56 | 18 | 12 | 110 | 2.08 | 2716 | 22 | 8 | 110 | 2.18 | 3537 |
500 | 37 | 1.69 | 17 | 10 | 110 | 2.26 | 3499 | 31 | 8 | 110 | 2.31 | 4603 |
750 | 61 | 1.88 | 20 | 9 | 110 | 2.47 | 4728 | - | - | - | - | - |
1000 | 61 | 2.03 | 26 | 9 | 110 | 2.62 | 5892 | - | - | - | - | - |
