Electrical Cable Wire ABC Aerial Bundled Cable

Luoyang Sanwu Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：PVC,PE,XLPE
  • Sheath Material：XLPE
  • Material Shape：Round Wire

Base Info

  • Model NO.：ABC Aerial Bundled Cable
  • Certification：CCC, CE, TUV
  • Model：ABC Cable
  • Brand：Dayuan
  • Specification Type：ABC-016mm
  • ABC Standard：IEC61089;NFC33-209;GB12527-9
  • Core Material：Aluminium Wire
  • Voltage Type：Low Voltage, Medium Voltage
  • Manufacturer：6 Years
  • ODM：Ok
  • OEM：Ok
  • Transport Package：Wooden Drum, as Request
  • Specification：IEC, ISO, GB, TUV, CCC
  • Trademark：Da Yuan
  • Origin：Henan, China
  • HS Code：76149000
  • Production Capacity：100000 M,Day

Description

Cross Section of Conductor
(mm2)Min.Nos. of Wires for Conductor
(mm)Insulation Thickness
(mm)Average Max. O.D.per Single-core
(mm)Max.Conductor Resistance at 20ºC
(Ω/km)Min Insulated Resistance at Rated Working Temperature
(MΩ.km)Cable Tensile Breaking Force  2x1061.006.5x13.03.080.00670.6716502x1661.208.0x16.01.910.00650.6525122x2561.209.4x18.81.20.00540.5437622x3561.4011.0x22.00.8680.00540.5451772x5061.4012.3x24.60.6410.00460.4670112x70121.4014.1x28.20.4430.0040.4103542x95151.6016.5x33.00.320.00390.39137272x120151.6018.1x36.20.2520.00350.35173392x150151.8020.2x40.40.2060.00350.35210332x185302.0022.5x45.00.1640.00350.35267322x240302.2025.6x51.20.1250.00340.34346794x1061.006.5x26.03.080.00670.6716504x1661.208.0x32.01.910.00650.6525124x2561.209.4x37.61.20.00540.5437624x3561.4011.0x44.00.8680.00540.5451774x5061.4012.3x49.20.6410.00460.4670114x70121.4014.1x56.40.4430.0040.4103544x95151.6016.5x66.00.320.00390.39137274x120151.6018.1x72.40.2520.00350.35173394x150151.8020.2x80.80.2060.00350.35210334x185302.0022.5x90.00.1640.00350.35267324x240302.2025.6x102.40.1250.00340.3434679
Our Services:
Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.

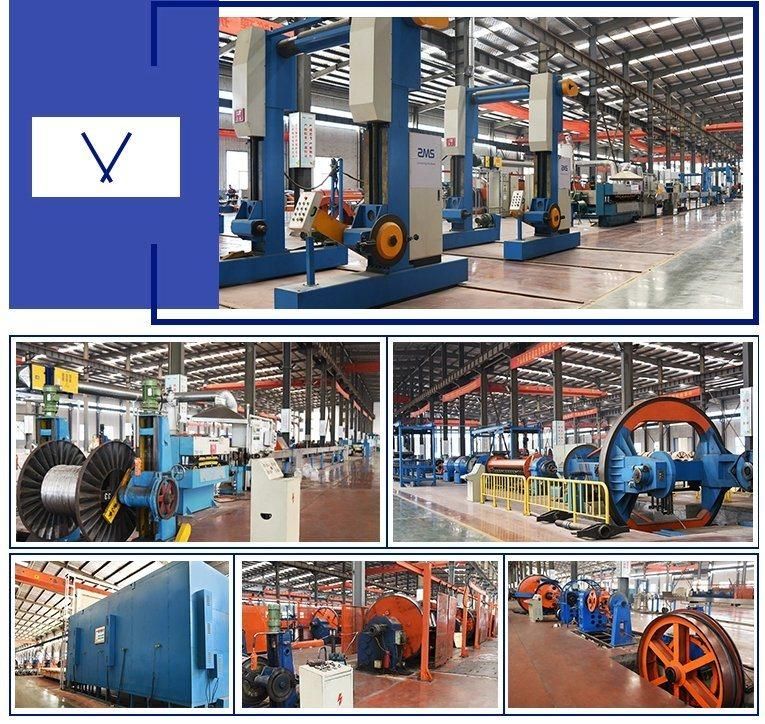

1. Factory: 200,081 square meters, available for OEM&ODM;
2. Lead time: 5-7 working days after payment received;
3. Authentication: CCC,ISO9001, CQC, etc;
4. Payment terms: T/T, L/C;
5. Guarantee: 17 years;
6. QC inspection: Strict inspection before delivery;
After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
Electrical Cable Wire ABC Aerial Bundled Cable

Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.

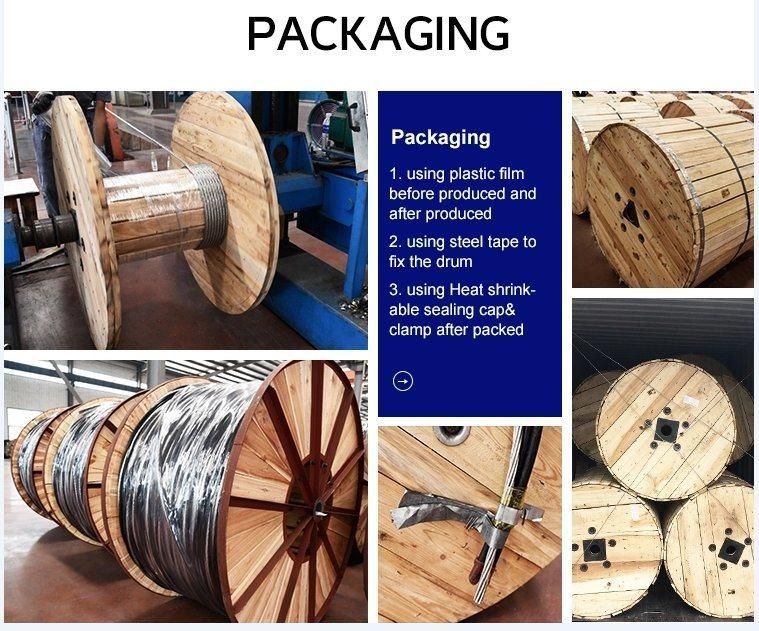

Packing and Delivery:
Electrical Cable Wire ABC Aerial Bundled CableElectrical Cable Wire ABC Aerial Bundled Cable
