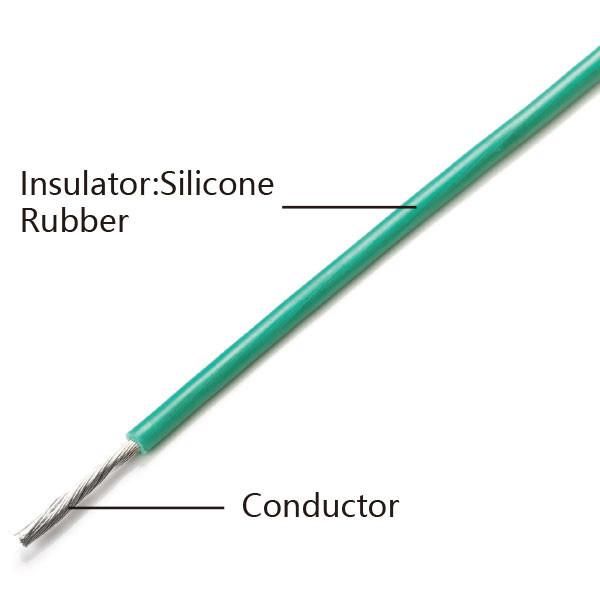

Silicone Rubber Insulation Tinned, Silver or Nixkel Plated Wire Cable
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Tinned Copper Wire
- Sheath Material：Sulicone Rubber
- Insulation Material：Teflon
Base Info
- Model NO.：rubber insulation Tinned copper wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Insulation：PFA
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+150c
- Rated Voltage：300V
- Od Tolerance：+,-0.1mm
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc
- Transport Package：Wooded Case, Carton
- Specification：0.9-23mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
InsulationElectrical Properties Packing AWG Conductor
Construction
NO.XΦmm Diameter
mm Insulation
Thickness
mm Outer
Diameter
mm Max.Conductor
Resistance DC 20'C
Ω/km M/coil 16 7x0.50 1.50 0.39 2.28 14.6 305 17 32x0.20 1.34 0.39 2.12 18.3 305 18 7x0.40 1.20 0.39 1.98 23.2 305 20 7x0.32 0.96 0.39 1.74 36.7 305 22 7x0.26 0.78 0.39 1.56 59.4 610 24 7x0.20 0.60 0.39 1.38 94.2 610 26 7x0.16 0.48 0.39 1.26 150 610 28 7x0.12 0.36 0.39 1.14 239 610 30 7x0.10 0.30 0.39 1.08 381 610
Construction
NO.XΦmm
mm
Thickness
mm
Diameter
mm
Resistance DC 20'C
Ω/km
