• Model NO.：KVV, KVVP2, KVV32, KYJV22, ETC.
• Material Shape：Round, Flat Control Cable
• Range of Application：Overhead Installation, Construction, Industrial...
• Certification：ISO9001, CE, CCC
• Brand：Gdyg
• Warranty：12 Months
• Export Experience：America, Australia, Africa, Arabian Countries...
• Operating Temperature：70 Degree or 90 Degree Control Cable
• Manufacture Standard：BS, GB, IEC Standards Control Cable
• Color：Black or as Request
• Sepcial Applicaton：Low Smoke Power Cable
• Business Type：Manufacturer, Factory
• Key Word 1：PVC Insulated Control Cable
• Special Applicaton 1：Fire-Resistant Control Cable
• Characters：XLPE Shieded Control Cable
• Transport Package：Fumigated Steel-Wooden Drum,Wooden Drum
• Specification：multicore control cable
• Trademark：GDYG
• Origin：Guangdong, China
• HS Code：8544492100
• Production Capacity：20000km Per Month

Basic Info.

Model NO. KVV, KVVP2, KVV32, KYJV22, ETC. Material Shape Round, Flat Control Cable Range of Application Overhead Installation, Construction, Industrial... Certification ISO9001, CE, CCC Brand Gdyg Warranty 12 Months Export Experience America, Australia, Africa, Arabian Countries... Operating Temperature 70 Degree or 90 Degree Control Cable Manufacture Standard BS, GB, IEC Standards Control Cable Color Black or as Request Sepcial Applicaton Low Smoke Power Cable Business Type Manufacturer/ Factory Key Word 1 PVC Insulated Control Cable Special Applicaton 1 Fire-Resistant Control Cable Characters XLPE Shieded Control Cable Transport Package Fumigated Steel-Wooden Drum/Wooden Drum Specification multicore control cable Trademark GDYG Origin Guangdong, China HS Code 8544492100 Production Capacity 20000km Per Month

Product Description

Multi Cores Cable Wire Medium Voltage Control Cable


Type and Name

Type	Name
KVV	Copper conductor PVC insulated PVC sheathed control cable
KVVP2	Copper conductor PVC insulated PVC sheathed copper tape screened control cable
KVV22	Copper conductor PVC insulated PVC sheathed steel tape armored control cable
KVVP2-22	Copper conductor PVC insulated PVC sheathed copper tape screened, steel tape armored control cable
KVVR	Copper conductor PVC insulated PVC sheathed control flexible cable
KVV32	Copper conductor PVC insulated PVC sheathed steel wire armored control cable
KVVP2-32	Copper conductor PVC insulated PVC sheathed copper tape screened steel wire armored control cable
KYJV	Copper conductor XLPE insulated PVC sheathed control cable
KYJVP2	Copper conductor XLPE insulated PVC sheathed copper tape screened control cable
KYJV22	Copper conductor XLPE insulated PVC sheathed steel tape armored control cable
KYJVP2-22	Copper conductor XLPE insulated PVC sheathed copper tape screened steel tape armored control cable
KYJV32	Copper conductor XLPE insulated PVC sheathed steel wire armored control cable
KYJVP2-32	Copper conductor XLPE insulated PVC sheathed copper tape screened steel wire armored control cable

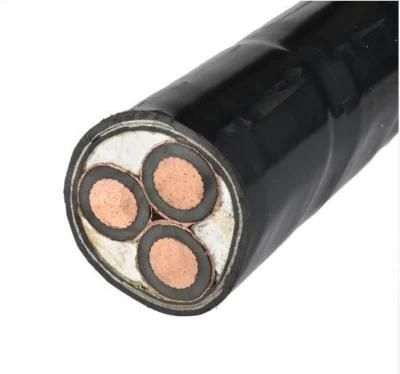

Construction

 1.Conductor 2.Conductor screen (no light type)3.Filler
4.Wrapping tape
5.Copper tape screen
6.Sheath
7.Extruded or lapped bedding
8.Double steel tape armour


Standards
It is manufactured in accordance with GB/T9330-2008, and the factory can also manufacture the cables in accordance with other standards such as IEC, BS, DIN, etc.


Characteristics and Applications
Plastic insulated control cable are used for connecting electrical equipments. It applies to controlling, monitoring and protective system with A.C. rated voltage U0/U up to and including 450/750V.

The main features of the flame retardant PVC control cable is hard to get fire or that the continuous burning of cables is very limited when it is on fire. It applies to the places with special demands of flame retardant property.

Fire-resistance cable can operate normally for some time when it is burning except that it can transmit electrical power under normal condition. It is used in the places necessary to resist fire.

 Main Technical Parameter
KVV,  ZC-KVV

Number of cores  x Nominal cross-section mm2	Kind of  conductor	Reference  outside diameter  of cable  mm	Reference weight of cable kg/km	Max.D.C.   resistance  at 20ºC Ω/km	Min.insulation   resistance     at 70ºC MΩ·km
2 x 0.75	1	7.2	61	24.5	0.012
2 x 0.75	2	7.5	65	24.5	0.014
2 x 2.5	1	9.6	124	7.41	0.01
2 x 2.5	2	10.2	135	7.41	0.01
2 x 10	2	15.7	377	1.83	0.0065
5 x 0.75	1	8.7	101	24.5	0.012
5 x 0.75	2	9.1	108	24.5	0.014
5 x 2.5	1	12.7	247	7.41	0.01
5 x 2.5	2	13.4	267	7.41	0.01
5 x 10	2	20.4	769	1.83	0.0065
10 x 0.75	1	11.6	176	24.5	0.012
10 x 0.75	2	12.2	189	24.5	0.014
10 x 2.5	1	17.2	447	7.41	0.01
10 x 2.5	2	18.2	483	7.41	0.01
10 x 10	2	28.4	1452	1.83	0.0065
30 x 0.75	1	17.6	450	24.5	0.012
30 x 0.75	2	18.6	483	24.5	0.014
30 x 2.5	1	26	1167	7.41	0.01
30 x 2.5	2	27.6	1262	7.41	0.01
61 x 0.75	1	23.8	857	24.5	0.012
61 x 0.75	2	25.1	906	24.5	0.014
61 x 2.5	1	36	2320	7.41	0.01
61 x 2.5	2	38.3	2509	7.41	0.01

Our companyEstablished in 1988, Vango Cable is a leading provider in Cable industry. It is located in Qingyuan, Guangdong. we are the main supplier of cable & conductor and special transmission conductor of Natianal Power Grid and China Southern Power Grid. We can manufacture different cables according to the needs of different countries and different standards.

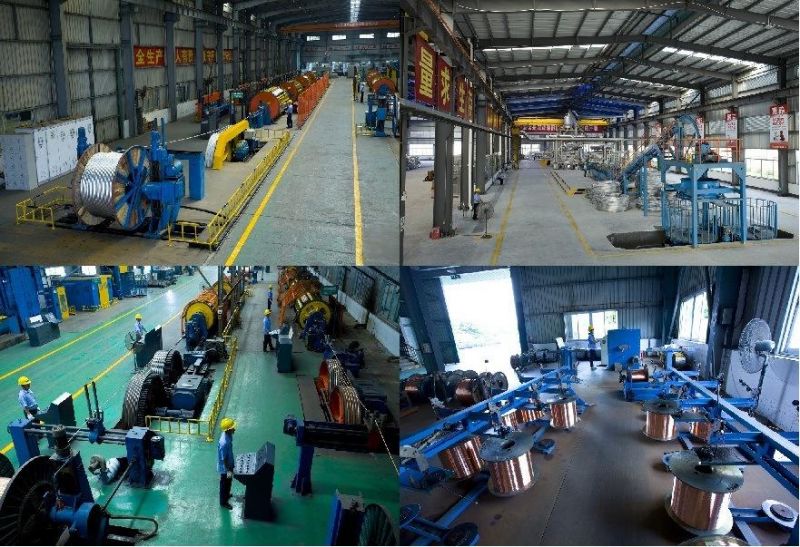

Workshop



Customers



Certificates

  FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.

2. What is your main product?

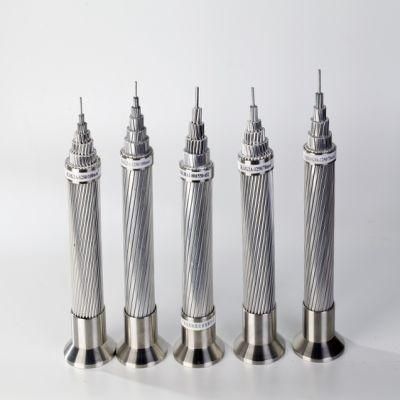

As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

3. Can you offer me a free sample?
 Yes, sample is free but the freight charge should be borne by you.

4.How is the payment?
T/T, L/C is acceptable.

5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.

6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.

7.Do you have after-sale service?
Yes, 12 months warranty.
