• Model NO.：NYBY
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Nyby
• Brand：Feiya
• Temperature Range：-5 Degree Till +70 Degree
• OEM&ODM：Yes
• Rated Voltage：0.6,1kv
• Operating Environment：Underground
• Material：PVC Jacket
• Other Service：Can Be Customized
• Use Place：Power Transmission and Distribution
• Lowsmokezerohalogan：LSZH, Lsoh, Ls0h, Lsfh, Ohls
• Colors：Can Be Customized
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper,aluminum,pvc
• Trademark：Feiya
• Origin：China
• HS Code：8544
• Production Capacity：80000 Meter,Meters Per Month

Basic Info.

Model NO. NYBY Wire Core Material Copper or Aluminum Certification ISO, CCC, CE, RoHS, UL, VDE Model Nyby Brand Feiya Temperature Range -5 Degree Till +70 Degree OEM&ODM Yes Rated Voltage 0.6/1kv Operating Environment Underground Material PVC Jacket Other Service Can Be Customized Use Place Power Transmission and Distribution Lowsmokezerohalogan LSZH, Lsoh, Ls0h, Lsfh, Ohls Colors Can Be Customized Transport Package Wooden Box Packing or Pallet Shipping Containers Specification copper/aluminum/pvc Trademark Feiya Origin China HS Code 8544 Production Capacity 80000 Meter/Meters Per Month

Product Description

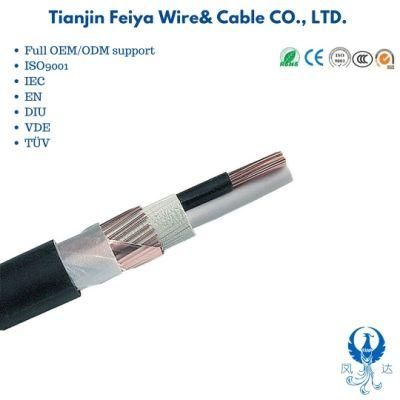

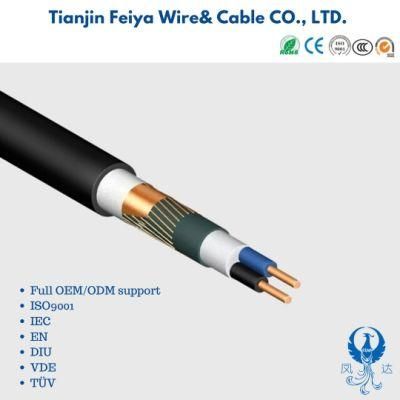

0.6/1kV Copper/Aluminum PVC/XLPE Insulation Power Cable

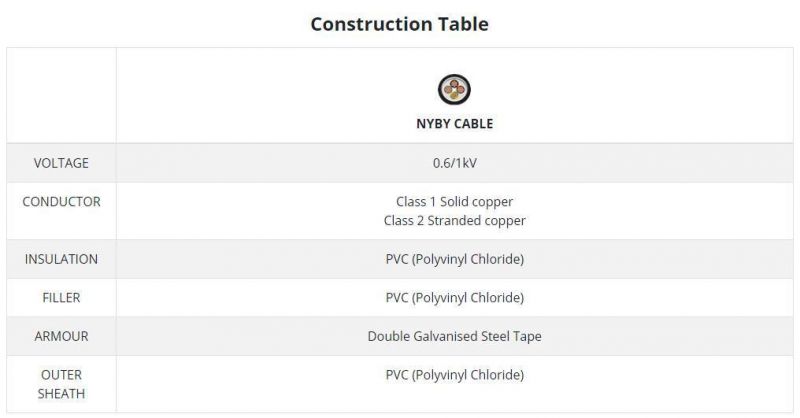

CONSTRUCTION:

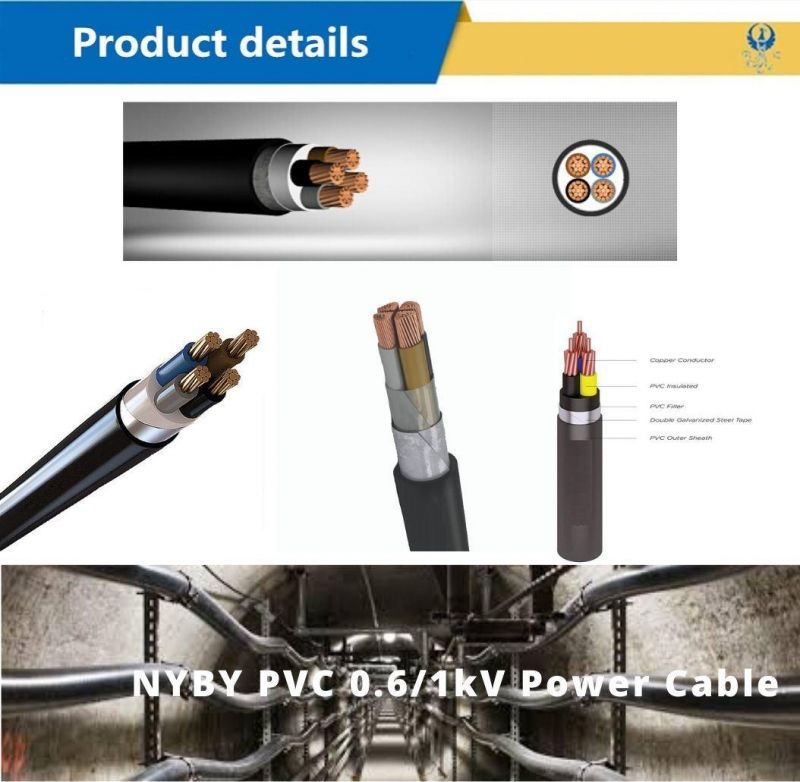

Stranded Copper Conductor(Class 2), PVC Insulation, Double Galvanized Steel Tape Armour, PVC Sheathed

APPLICATION:

For outdoor installations in power stations, industrial plants and switchgears if mechanical protection is required or in applications where mechanical damages are expected to occur.

TECHNICAL DATA:

Conductor: Strand Copper Conductor, Class 2 or Solid copper conductor class1
Operate Voltage:600/1000V
Test Voltage:  4000V
Working Temperature:-5-70 º C
Short-circuit max. Conductor temperature:160°C
Insulation resistance: 20 MΩ x km



Look for customised cables? Get more information connect with Daisy







Q1: Are you a trading company or manufacturer?

A1: Tianjin Feiya wire & Cable Co., Ltd. is a professional manufacturer.

Q2: What kinds of products does Tianjin Feiya wire & Cable Co., Ltd. Manufacture?

A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable, PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable, coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.

Q3: Which standards do you comply with when you produce the electrical wires and cables?

A3: We have passed ISO9001: 2000 and ISO140001: 2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).

Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.

Q5: How much the Courier freight will be for the samples?

A5: Courier freight depends on the quantity, weight and carton size and your area.
