19#4 AWG Earth Wire Copper Clad Steel Wire Earth Rods

GENERAL CLAD CO., LTD.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：Bare
  • Material Shape：Round Wire
  • Wire Core Material：Bare Copper Wire

Base Info

  • Model NO.：19#4
  • Certification：ISO, CE, RoHS
  • Model：3#5, 3#6, 3#7, 3#8, 3#9, 3#10, 3#12, 7#4, 7#5,
  • Brand：General Clad
  • Size：3#5, 3#6, 3#7, 3#8, 3#9, 3#10, 3#12, 7#4,
  • Conductor：Copper or Copper Clad
  • No. of Cores：One Core or Multi-Cores
  • Service：OEM&ODM Service
  • Standard：ASTM B228
  • Transport Package：Drum or According Requirement of The Customer
  • Specification：40% IACS
  • Trademark：General Clad
  • Origin：China
  • Production Capacity：200tons,Month

Description

Application field:

Earthing, Grounding, Utility, Railway messenger

Size available:

4-10 AWG
Strands:3,7,9.

Size available (Copper Conductor Equivalency):

16 mm² ,35 mm²,50 mm²,70 mm²,95 mm²,120 mm²

Temper offered:

Hard drawn /Annealed

Strength offered:

Low carbon, High strength, Extra high strength.

Standard:

ASTM B228

Package:

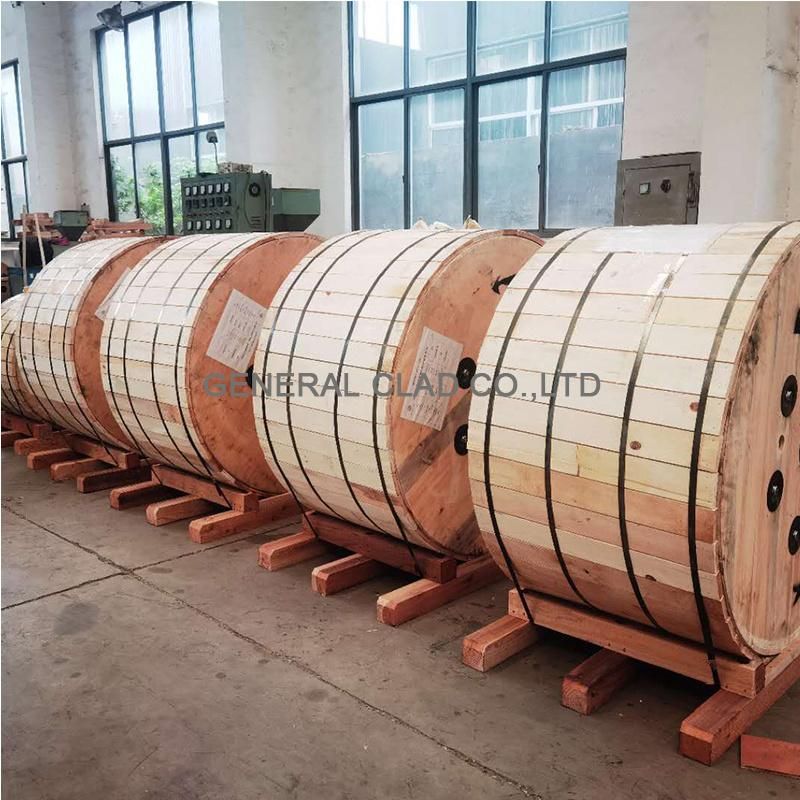

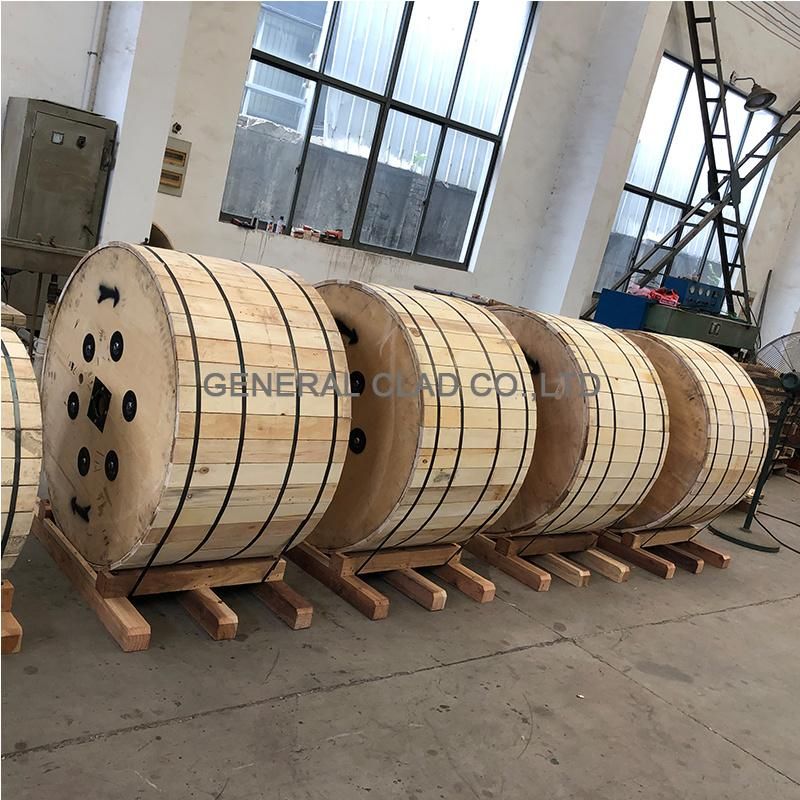

Wire will be loaded on plywood reel with 1KM,2KM per unit and put on plywood pallets which is suitable for sea transportation.
(Both eye to wall and eye to sky is acceptable.)


Package19#4 AWG Earth Wire Copper Clad Steel Wire Earth Rods19#4 AWG Earth Wire Copper Clad Steel Wire Earth Rods
