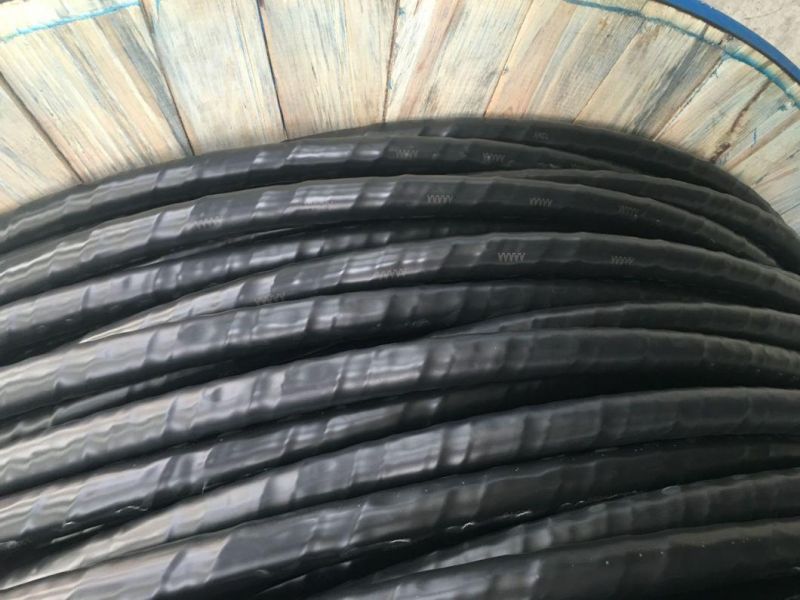

Cable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Overhead, Underground, Industrial, Power Station
  • Voltage：High Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：3x240 NFC 33 226
  • Wire Core Material：Bare Copper Wire
  • Certification：ISO, CCC, CE, RoHS, UL, VDE
  • Model：3X150 NFC 33 226 18,30,36kv
  • Brand：Yifang Cable
  • Rated Voltage：12,20kv
  • Conductor：Copper
  • Insulation Screen：with Powder Over It
  • Sheath：PE
  • Sheath Color：Black
  • Cores：Single Bundle
  • Section Area：240mm2
  • Country Exported：West Africa:Togo,Cote Diva,etc
  • Other Sizes：1X50mm2,3X150
  • Other Voltage：18,30kv

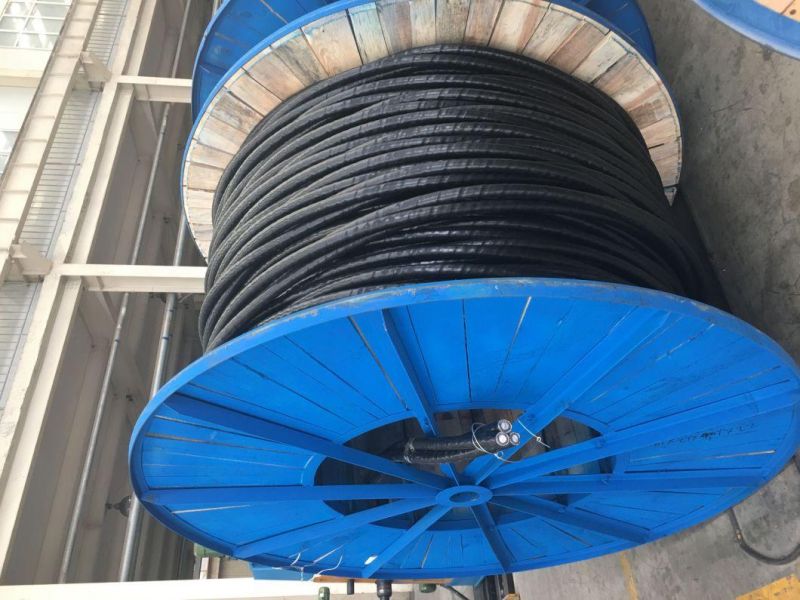

  • Transport Package：Wooden Drum or Wooden Steel Drum
  • Specification：1.1m drum or 2.2drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：1000km Per Month

Description

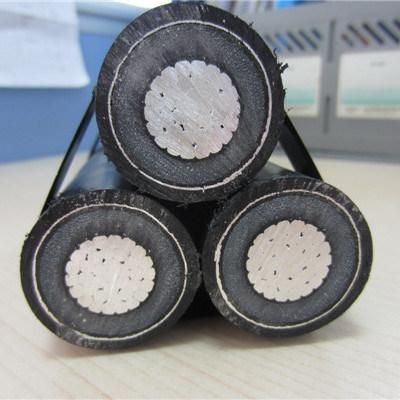

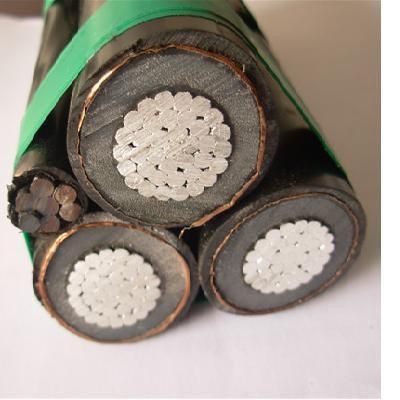

DESCRIPTIONUtilisationLe câble MT NFC 33-226 est destiné à la distribution publique moyenne tension HTA 12/20 kV.Il peut être constitué de 1 ou 3 conducteurs de phase.L'étanchéité longitudinale est assurée par une poudre gonflante.La technologie de sa fabrication permet de le poser sans protection mécanique
supplémentaire. Norme : NF C 33 226, IEC 60502-2N0Fiches TechniquesUnitésDonnées SpécifiquesDonnées du fabricant1Fabricant A indiquerYIFANG ELECTRIC GROUP INC.2Norme CEI ou équiv.IEC60502-2, NFC 332263Conducteur AluAlu4Isolation PRPR(XLPE)5Souplesse Classe 2Classe 26Tension maximalekV24 kV24 kV7Fréquence nominale 50 Hz50 Hz8Sectionmm21x3x2401x3x2409Intensité régime permanent enterré à 20 °CA39839810Température max. âme°C709011Masse approximativeKg/km5539459012Chute de tension à cos phi = 0,8V/A/km0,330,3313Marquage 12/20 à 24 kV C33 22612/20 à 24 kV C33 226 1x3x240 mm² Alu1x3x240 mm² Alu marquage métrique, la norme etmarquage métrique, la norme et CEET sur chaque conducteur à chaque 2 mètres.CEET sur chaque conducteur à chaque 2 mètres.14Couleur NoirNoirCable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis Cable
Cable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis CableCable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis CableCable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis Cable
Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

Cable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis Cable

Our certificate

Cable Hta Torsade Souterrain 12/20/24kv NFC 33 226 3X240 mm2 Alu Cis Cable

FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
