• Model NO.：telephone cable
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, ETL SGS CPR
• Model：Cat3
• Brand：Risun or OEM
• Color：as Request

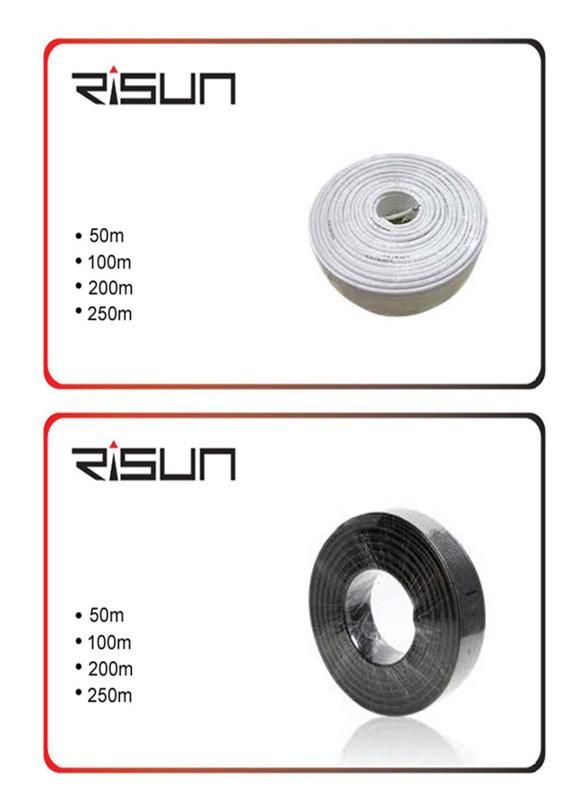

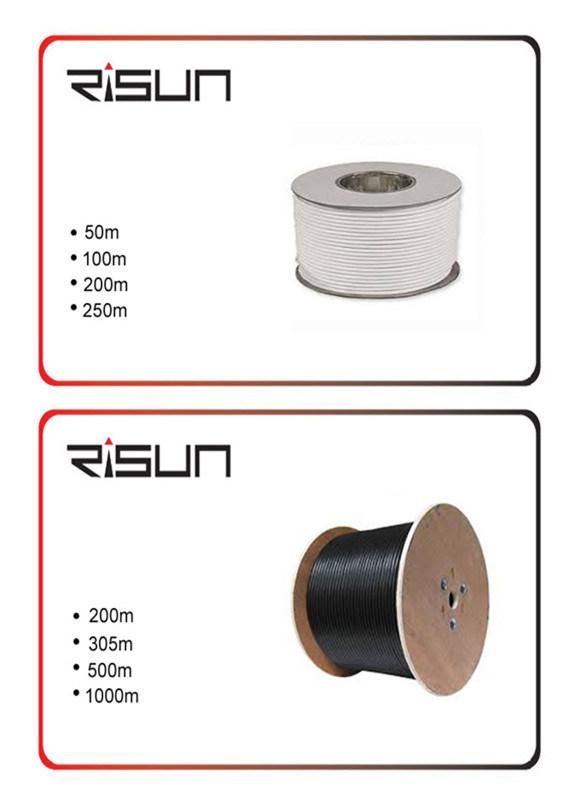

• Transport Package：100, 200, 500m,Roll or Wooden Reel
• Specification：CE, ISO9001, RoHS, ETL, SGS
• Trademark：RISUN or OEM
• Origin：Hangzhou, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000box,Month

Conductor0.50±0.02mm(24AWG) Bare copperInsulation0.90±0.05mm HDPECores/Pairs2/1 up to 100/50SheathAccording to pairs    PVC, LSZH, PEOptions: Jelly Compound, Jacket: UV, FR, RoHS complied.

Mechanical Properties:Elongation≥125 %Temperature Range-30 up to +50 °CTensile Strength≥10 MPa

Electrical Properties:Conductor Resistance≤9.5 Ω/100 mResistance Unbalance≤2 %Insulation Resistance≥5000 MΩ·KMCapacitance ≤6.6 nF/100mImpedance100±15 ohmSpark Test2000VVelocity of Propagation69%


Technical Performance:

Frequency	Attenuation	RL	NEXT	EL FEXT
(MHZ)	(<=dB/100m)	(>=dB)	(>=dB)	(<=dB/100m)
1	2.6	12.0	41.3	/
4	5.6	12.0	32.3	27.0
8	8.5	12.0	27.8	20.9
10	9.7	12.0	26.3	19.0
16	13.1	10.0	23.3	14.9



Packing:

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.
