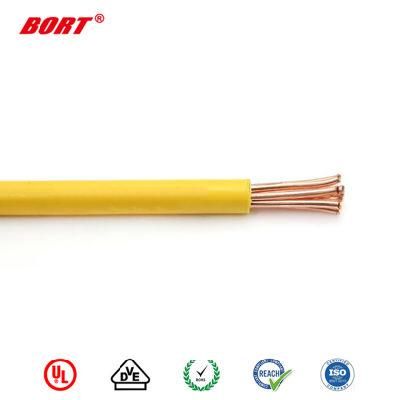

22AWG UL1331 FEP Insulated Tinned Copper Lead Wire

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Insulation Material：FEP
  • Material Shape：Round Wire
  • Range of Application：Flame Retardant

Base Info

  • Model NO.：UL1331
  • Certification：ISO9001, UL, RoHS
  • Rated Temperature：80 ºC
  • Rated Voltage：12-14V
  • According to：UL Subject758, UL1581, C22.2
  • Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
  • Performance：for General Purpose Internal Wiring of Appliance
  • Conductor：Stranded, Tinned or Bare Copper Conductor
  • Capacity：300, 000km Annual
  • Color：Could Be Customized Color
  • Delivery Time：7-15days
  • Package：Coil or Spool Packing
  • Transport Package：610feet in Roll
  • Specification：2pin 20 AWG 2 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Rated Temperature150ºC  InsulatedFEP insulation StandardOverall Diameter
(mm)Nom.Min.Nom.Tol.1037/0.423.54 2.94 0.50 0.45 3.94 ±0.151237/0.3745.64 2.62 0.50 0.45 3.62 ±0.151419/0.3618.96 1.85 0.50 0.45 2.90 ±0.101619/0.28714.60 1.50 0.50 0.45 2.50 ±0.101819/0.23523.20 1.18 0.50 0.45 2.20 ±0.102019/0.1936.70 0.95 0.50 0.45 1.95 ±0.102219/0.1559.40 0.76 0.50 0.45 1.75 ±0.10247/0.2094.20 0.61 0.50 0.45 1.60 ±0.10267/0.16150.00 0.48 0.50 0.45 1.50 ±0.10281/0.32227.00 0.320 0.50 0.45 1.32 ±0.10301/0.254361.00 0.254 0.50 0.45 1.26 ±0.10
