• Model NO.：NYA NYY THW
• Material Shape：Round Wire
• Range of Application：Normal Electrical Used
• Certification：ISO9001, CE, CCC
• Brand：Hongda
• Product Name：Thw Wire, Thw Cable
• Standard：IEC, BS, AS,NZS, SABS
• Color：as Your Require
• Core Number：as Your Require
• Rated Voltage：600V
• Rated Temperature：70c 90c 120c 200c
• Armour：None Armour
• Strand Number：1.7, 19, 37, 54, 61, 91
• Purity of Copper Conductor：99.99%
• Transport Package：Plastic Film, Plastic Drum
• Specification：0.5mm2-400mm2
• Trademark：Hongda
• Origin：Henan China
• HS Code：8544492900
• Production Capacity：3000km,Month

Basic Info.

Model NO. NYA NYY THW Material Shape Round Wire Range of Application Normal Electrical Used Certification ISO9001, CE, CCC Brand Hongda Product Name Thw Wire, Thw Cable Standard IEC, BS, AS/NZS, SABS Color as Your Require Core Number as Your Require Rated Voltage 600V Rated Temperature 70c 90c 120c 200c Armour None Armour Strand Number 1.7, 19, 37, 54, 61, 91 Purity of Copper Conductor 99.99% Transport Package Plastic Film/ Plastic Drum Specification 0.5mm2-400mm2 Trademark Hongda Origin Henan China HS Code 8544492900 Production Capacity 3000km/Month

Product Description

12 10 8 AWG Conductor PVC Insulated Cable 450/750 V NYA THW (cu/pvc) Copper Aluminum Wire

1. Main application

THW cable is suitable for various commercial and industrial applications. These cables may be installed in wet or dry locations, indoors or outdoors, in raceways, underground ducts (ask about our preinstalled cable-in-conduit products), aerial or direct buried.
THW cable is NEC-compliant for continuous operations at 75° C in wet and dry locations.
2.Specifications and Ratings
- UL Type THW
- The insulation is suitable for use in wet or dry locations at a temperature not exceeding 75° C
- RoHS compliant - Oil resistant I
- CT USE (#1/0 AWG and larger)

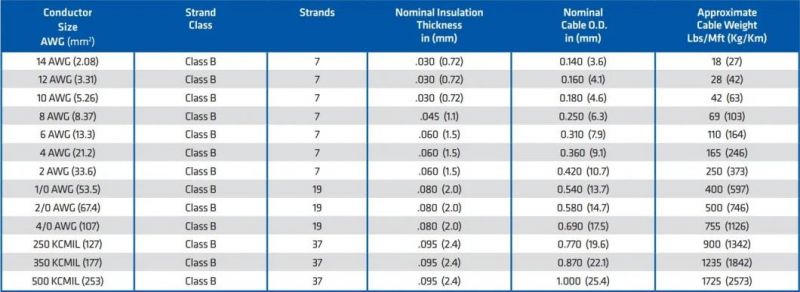

3. Design Parameters
CONDUCTORS: Class B, soft drawn, bare copper per ASTM B3 and ASTM B8. Both tinned copper conductors and extra-flexible conductors are available as options.
INSULATION: Heat and moisture resistant polyvinyl chloride (PVC) meeting the requirements of ICEA S-95-658 (NEMA WC 90) UL 83 for Type THW and wires. The insulation is suitable for use in wet or dry locations at a conductor temperature not exceeding 75° C for normal operation.
ASSEMBLY: Single conductor cables can be paralleled or multiplexed for more efficient installations. Single conductor cables can also be pre-installed in conduit.
4. Structure of Thw wire

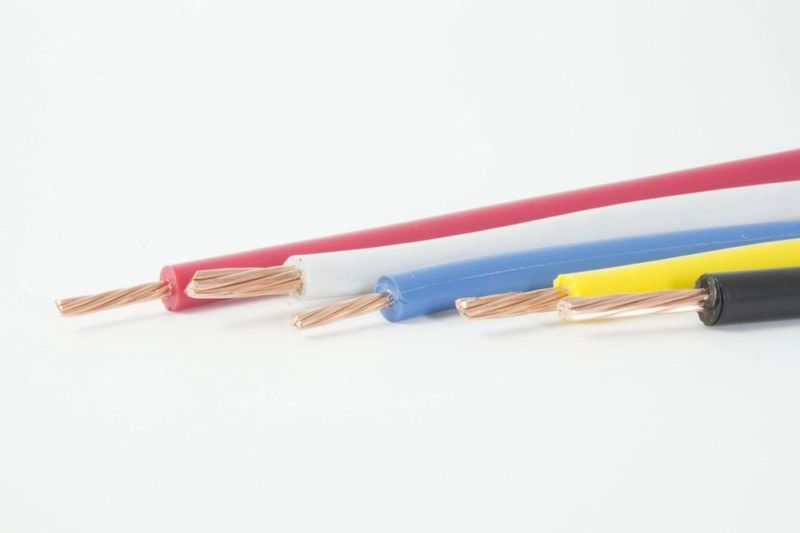

5 .THW PVC Insulated Wire


6.Factory



     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment

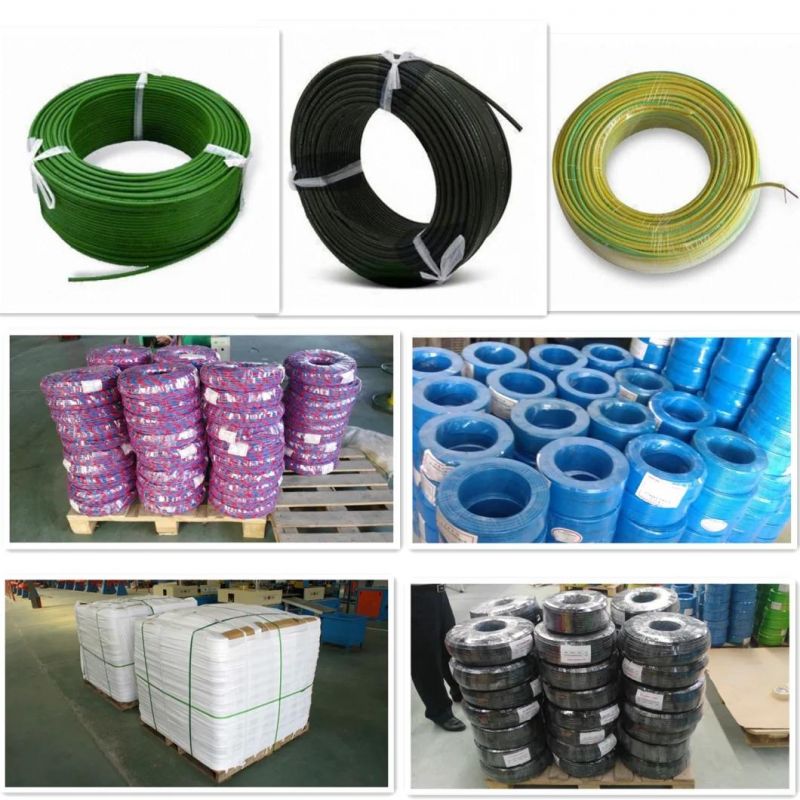

7.Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges

6.Certificate

Any problem and inquiry pls contact with Amy
