Opgw Cable (Optical overhead ground wire)

Qingdao Powtech Electronics Co., Ltd.
  • Application：Local Communication Cable, Fiber Optic Cable
  • Conductor Material：Aluminum
  • Cover Material：Bare
  • Type：G652D
  • Material Shape：Round Wire
  • Conductor Type：Stranded

Base Info

  • Model NO.：OPGW
  • Wire Core Material：Steel
  • Certification：CE, ISO, RoHS, CCC, UL, VDE
  • Model：Opgw
  • Brand：Powtech
  • Feature：Optical Ground Wire
  • Transport Package：Wooden Drum
  • Specification：IEEE1138
  • Trademark：POWTECH
  • Origin：China
  • HS Code：85447000
  • Production Capacity：100km,Month

Description

Outer layerACS wires12* 2.50mm(LB20.3)AA wiresNA
Cable diameter12.50mmCable weight479kg/kmCross section area82.65mm2.Section of ACS wire58.88mm2 (LB20.3)Ultimate tensile strength (RTS)73kNRated tensile strength (RTS)69.69kNModulus of elasticity (E-Modulus)138kN/ mm2Thermal elongation coefficient14.0x10 -6 / 0 CPermissible maximum working stress (42% RTS)29.27kNEveryday stress (25% RTS)17.42kNUltimate exceptional stress (72% RTS)50.18kNMaximum Permissible Installation Force29.27kNDC resistance at 20 0 C0.6692ohm/kmShort circuit current (35~200degC,0.5s)(kA)8.97Short circuit current capacity
(Initial temperature t = 35 o C,0.5s)40kA 2 /sMaximum conductor temperature during short circuit+200 o CDrum length5000mDrum sizes1.6*1.1*1.6mMinimum bending radius:
 Installation (mm)≤20*D (D: overall diameter)Operation (mm)  ≤10*D (D: overall diameter)Temperature range-10 o C ~ +50 o C (Installation)

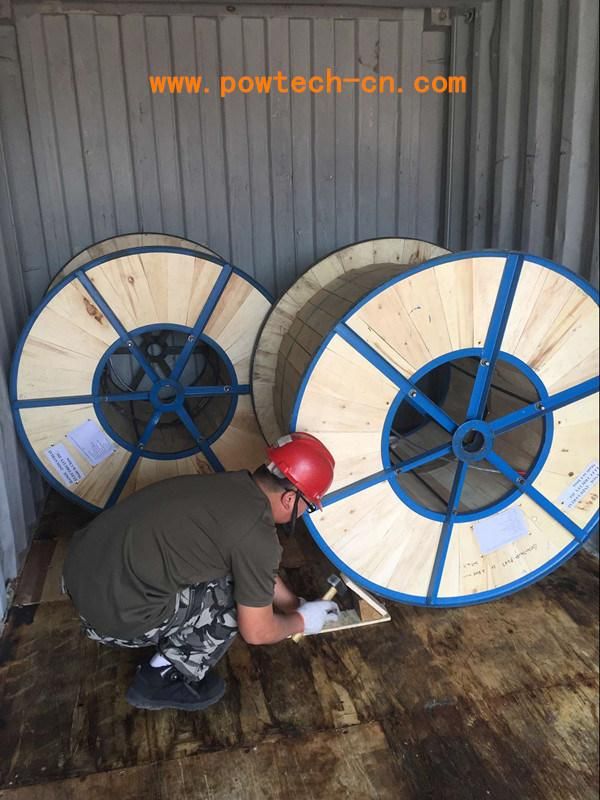

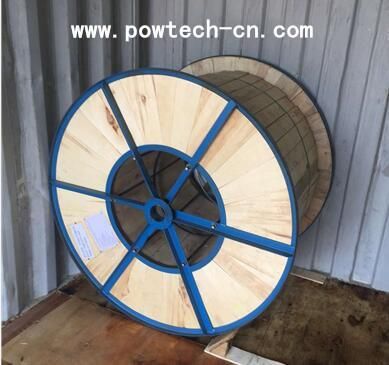

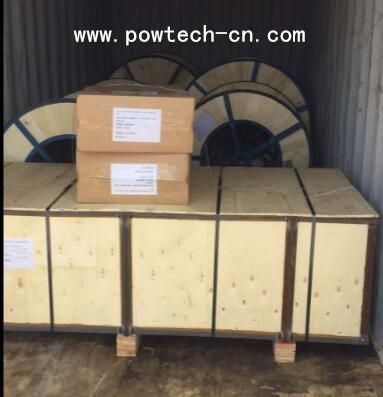

-40 o C ~ +80 o C (Operation)  Package*Shipment:
