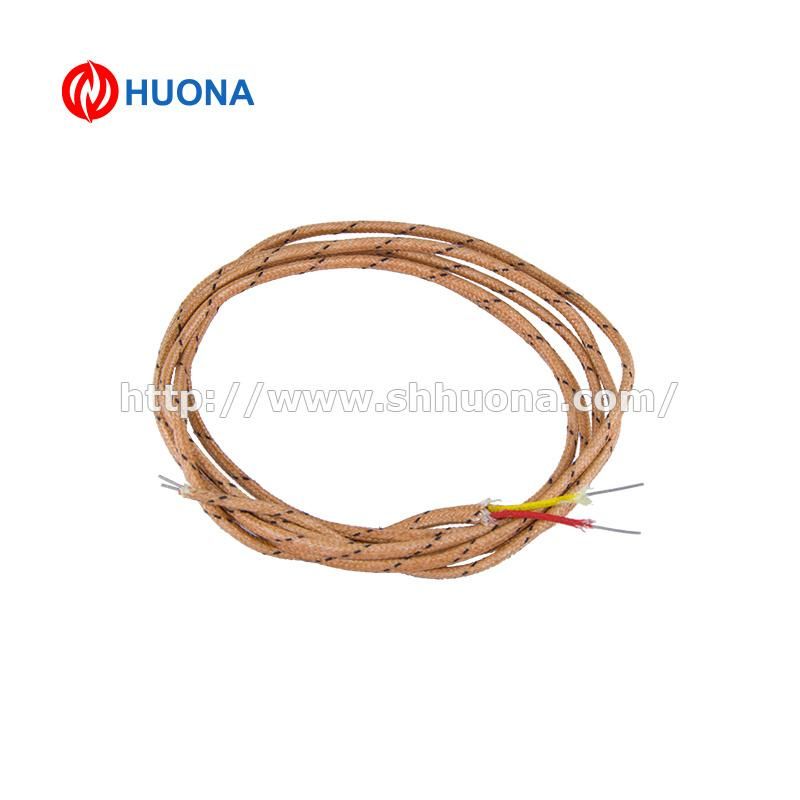

2X 0.51 mm Red-Yellow Fiberglass Insulated Type K Thermocouple Extension Wire with High Temp. 800c
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：2*0.81mm
- Application：Heating, -
- Conductor Material：Kx
- Sheath Material：Fibgerglass
- Insulation Material：Fiberglass
Base Info
- Model NO.：Type K Thermocouple
- Material Shape：Round Wire
- Range of Application：Temp. Measuring
- Certification：ISO9001, CE, RoHS
- Brand：Huona
- Section Area：0.5mm2, 0.75mm2, 1.0mm2
- Grade：I, II, III
- Usage：Thermocouple Sensors
- OEM：Yes
- Types：K,T,J,N,B,S,R
- Shape：Single, Pair, Stranded
- Insulation：Fiberglass, PVC, PTFE, Silicon Rubber
- Temperature Range：-60-1100
- Shield：Avaiable
- Colour：IEC, ANSI, BS
- Transport Package：on Reel, Carton Box
- Specification：According to clients requirements
- Trademark：Huona
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：1000 Tons, Year
Description
Negative
Name
Code
Name
Code
S
SC
copper-constantan 0.6
copper
SPC
constantan 0.6
SNC
R
RC
copper-constantan 0.6
copper
RPC
constantan 0.6
RNC
K
KCA
Iron-constantan22
Iron
KPCA
constantan22
KNCA
K
KCB
copper-constantan 40
copper
KPCB
constantan 40
KNCB
K
KX
Chromel10-NiSi3
Chromel10
KPX
NiSi3
KNX
N
NC
Iron-constantan 18
Iron
NPC
constantan 18
NNC
N
NX
NiCr14Si-NiSi4Mg
NiCr14Si
NPX
NiSi4Mg
NNX
E
EX
NiCr10-Constantan45
NiCr10
EPX
Constantan45
ENX
J
JX
Iron-constantan 45
Iron
JPX
constantan 45
JNX
T
TX
copper-constantan 45
copper
TPX
constantan 45
TNX

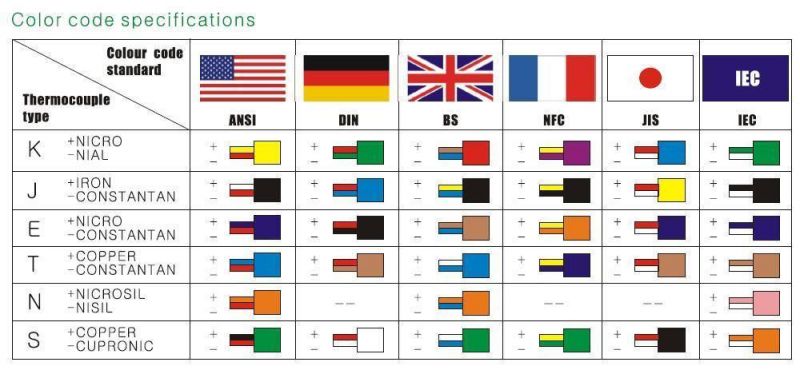

Different color code as per your request:
Properties of insulation material
| Material Type | Continuous Operating Temp. / ºC | Abrasion Resistance | Chemical Resistance | Moisture Resistance | Solvent Resistance | Flame Resistance |
| PE | 80 | Good | Excellent | Excellent | Excellent | Poor |
| PVC | 105 | Very Good | Very Good | Good | Fair | Excellent |
| TPE | 125 | Excellent | Poor | Good | Good | Excellent |
| SILICONE | 200 | Good | Good | Excellent | Excellent | Excellent |
| FEP | 200 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PFA | 260 | Excellent | Excellent | Excellent | Excellent | Excellent |
| PTFE | 260 | Good | Excellent | Excellent | Excellent | Excellent |
| B-GLASS FIBER | 260 | Good | Good | Fair | Good | Good |
| G-GLASS FIBER | 510 | Poor | Good | Good | Excellent | Excellent |
| Q-GLASS FIBER | 704 | Fair | Good | Good | Excellent | Excellent |
| VITREOUS SILICA FIBER | 1100 | Good | Good | Excellent | Excellent | Excellent |
| MINERAL INSULATION* | 1100 | Excellent | Excellent | Good | Excellent | Excellent |
The insulation material can be tailor made as per your request.
Please feel free to contact us if there is any inquiry or purchase plan on thermocouple wire, extension wires or cables.
